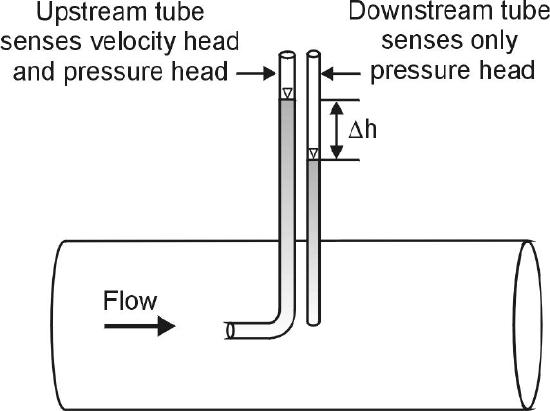

Figure 3.10. Pitot tube for measuring flow velocity.
In Chapter 8, we will discuss the relationships between the various forms of energy in flowing water: the pressure energy, relative energy due to elevation, and velocity energy. The change of forms of energy from pressure to velocity will be illustrated by using Bernoulli’s' Energy Equation. As the velocity increases in a pipeline, the pressure is usually reduced. This principle is used quite often in flow measurement.
A Venturi, such as the one shown in Figure 3.11, can be used to measure flow. The upstream pressure is higher than the pressure in the Venturi throat because of the high velocity in the throat of the Venturi. There is a correlation between the difference in pressure, or head, between the upstream sensing position and the throat of the Venturi. The pressure differential is directly related to the velocity of the fluid in the pipeline.
Figure 3.11. Venturi for flow measurements.
Another pressure differential device is the orifice meter. The orifice shown in Figure 3.12 discharges to the air. In this case the head is measured upstream. The downstream head is zero (atmospheric pressure). The flow of an orifice follows the following relationship:
\(Q=K A_0\sqrt{2g ∆h}\)
where: K = flow coefficient,
A0 = cross-section area of the orifice,
g = gravitational constant, 32.2 ft/s2 , and
∆h = head of water upstream of the orifice.
An orifice meter does not have to discharge to the air, but rather it can be imbedded within a pipeline and the difference in pressure head upstream and immediately downstream of the orifice can be measured to determine differential head.

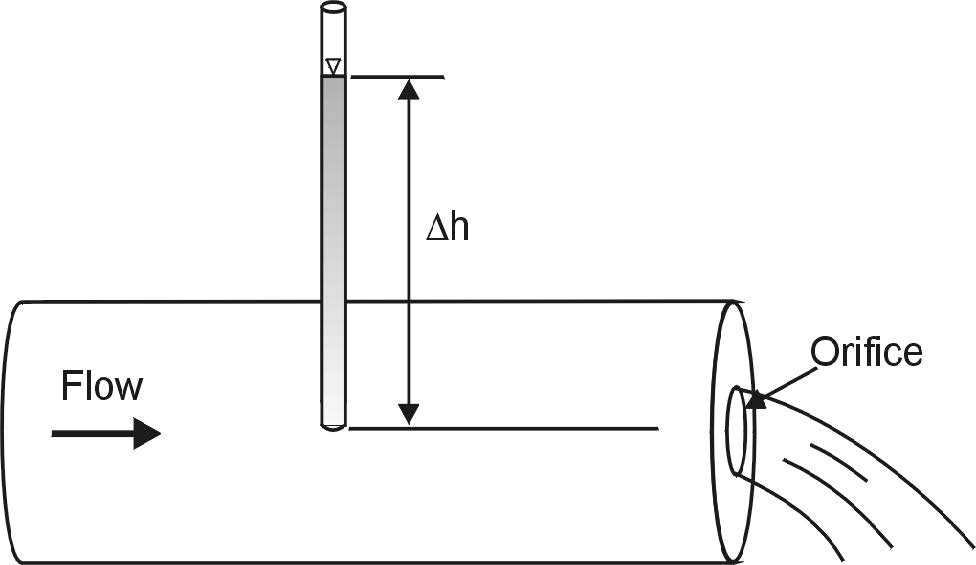

Figure 3.12. Pipe end-cap orifice meter.
