5.2.1: Sprinkler Irrigation

Sprinkler irrigation systems are used for agricultural or horticultural production and for landscape or turf applications. The principles of operation are the same for all applications even though the management objectives may differ. Sprinkler systems can be divided into four basic types: single-sprinkler, solid-set, moved lateral, and moving lateral systems. Figure 5.1 illustrates two types of sprinkler systems.

Single-sprinkler systems are designed to irrigate an entire area with only one sprinkler that is moved periodically or automatically moves across the area. Examples range from the single lawn sprinkler that is placed throughout the yard, to automatically moving systems equipped with a big gun sprinkler that throws water hundreds of feet (traveler irrigation system). The performance of single sprinkler systems depends on placing the sprinkler at the proper location for the correct amount of time. A disadvantage is that the systems generally apply water beyond the irrigated area to ensure that the targeted land is adequately watered. However, a significant advantage is that the single sprinkler system is quite versatile and widely used for irregularly shaped land areas.

A step up in complexity from the single-sprinkler system is the system with multiple sprinklers placed along a pipe called a lateral. The basic components of lateral-based sprinkler systems are the mainline and one or more laterals. The mainline is a pipe network designed to carry water from the water source to the laterals. The sprinkler devices are located on the lateral pipelines. Most lateral-based systems consist of multiple laterals. When the laterals are placed permanently in one location in the field, the system is called a solid-set system. Generally, the laterals and mainline of solid-set systems are installed under the soil surface and the sprinklers are mounted above ground with pipes called risers or the sprinklers are specially designed to pop up above the soil when water pressure builds in the lateral. Solid-set systems are commonly used on lawns, landscapes, golf courses, and some agricultural and horticultural applications. This type of system can be very efficient since each sprinkler in the system is only used in the area it was designed to irrigate. The systems are easily automated and can apply any depth desired.

To reduce investment costs, a single lateral could be set to water a portion of an irrigated area and then moved to multiple locations. The earliest and simplest of these moved lateral systems is carried by hand and is called a hand move system. The lateral can also be moved by pulling the lateral across the field. This type is called a tow line or towed sprinkler system. Laterals can be mounted on wheels that suspend the pipeline above the crop. These systems are called side roll systems because the wheels are rolled across the field to reposition the lateral. Because of the labor requirement, the moved laterals are usually left in one location for 8, 12, or even 24 hr. Thus, the systems usually apply large depths of water each irrigation.

Automated systems have been developed to move the lateral across the field. Examples of moving lateral systems include center pivots and linear or lateral move systems. All of these systems use one lateral to irrigate a large area, but since the lateral moves at a controlled speed, the depth of water applied can be varied over a wide range.

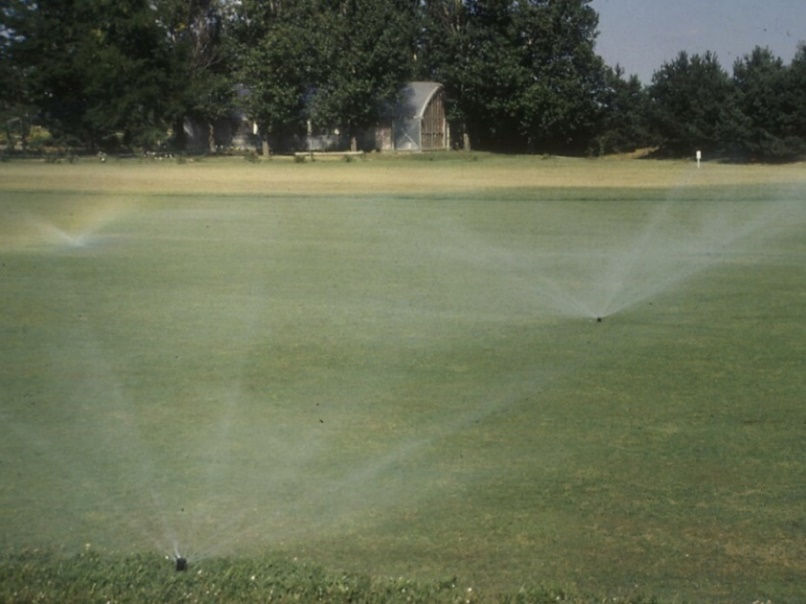

Figure 5.1. (a) Center pivot sprinkler system used for agriculture, and (b) underground sprinkler system in turfgrass
