A surface irrigation system consists of some type of water supply mechanism, similar to a mainline for sprinkler systems. This supply mechanism may be a “head” ditch, gated pipe, or buried pipelines with valves at the surface. A variation is the use of siphon tubes to deliver water from a supply ditch.

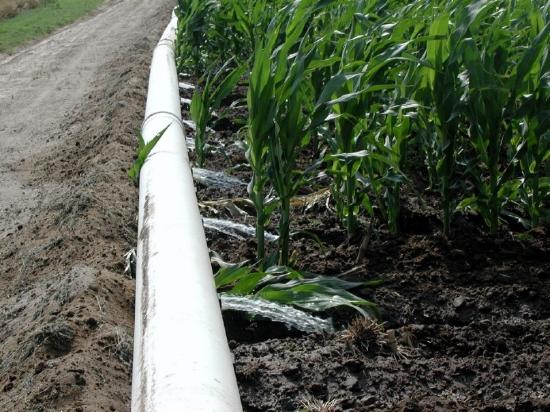

Figure 5.2. Furrow irrigation with gated pipe; one type of surface irrigation. (Photo courtesy of Steve Melvin, Nebraska Extension.
Whatever water supply device is used, water will flow across a constrained portion of the field. This area of the field may be constrained by small dikes in a border irrigated field or furrows in furrow irrigation. Sometimes an area is leveled and surrounded by small dikes. This type of system is called basin irrigation. If the field is nearly level in both the direction of flow and the transverse direction, the water that would run off the field may be blocked and forced to stay on the field.
