Portable solid-set systems are also available as shown in Figure 12.13. These systems are essentially a series of hand-move laterals connected to a mainline. Some systems such as shown in Figure 12.13c can be move mechanically to allow field operations and to reposition laterals. Manual or automatic values can be used to turn on and off laterals which allows for varying set times and irrigation intervals as needed. These systems are cheaper and more flexible than permanently installed systems. Many characteristics of portable solid-set systems are the same as periodically moved laterals.

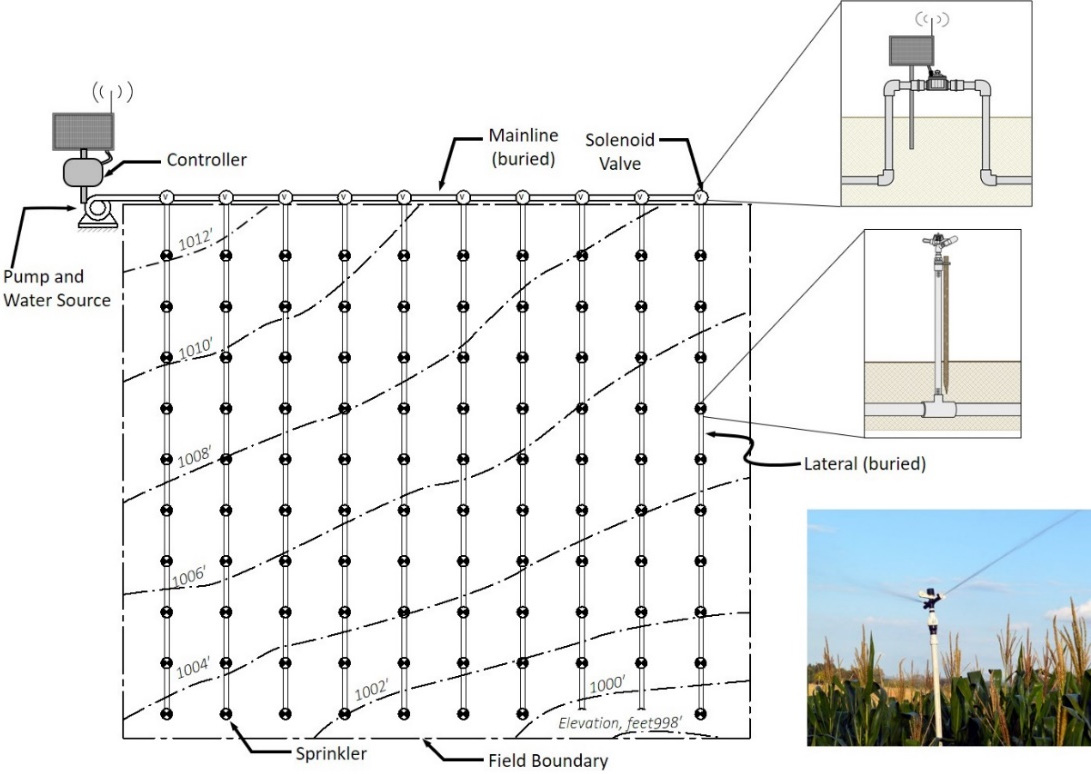

Figure 12.12. Plan view and some components of a permanent solid-set system. (Lower right photo is courtesy of Senninger Irrigation.)
Figure 12.13. Examples of portable solid-set systems (photos a and b are courtesy of Hunter Industries; photo c is courtesy of Westlake Pipe & Fittings).
