1.3 Measuring Wood Accurately

Accurate woodworking begins with accurate measurement. A small measuring error can affect the fit of a joint, the size of a project part, or the alignment of several pieces later in the project.

In WMT 101, most measurements are made in inches and fractions of an inch.

Learning Outcomes

After completing this section, you should be able to:

Read a ruler or tape measure accurately.
Identify common fractional-inch markings.
Recognize equivalent fractions.
Record measurements correctly in inches.

Reading Fractions of an Inch

An inch can be divided into smaller, equal parts.

Common divisions include:

1/2 inch
1/4 inch
1/8 inch
1/16 inch
1/32 inch

The smaller the fraction, the more precise the measurement.

On a ruler divided into thirty-seconds, each small mark represents 1/32 inch. Longer marks identify common fractions such as 1/16, 1/8, 1/4, and 1/2 inch.

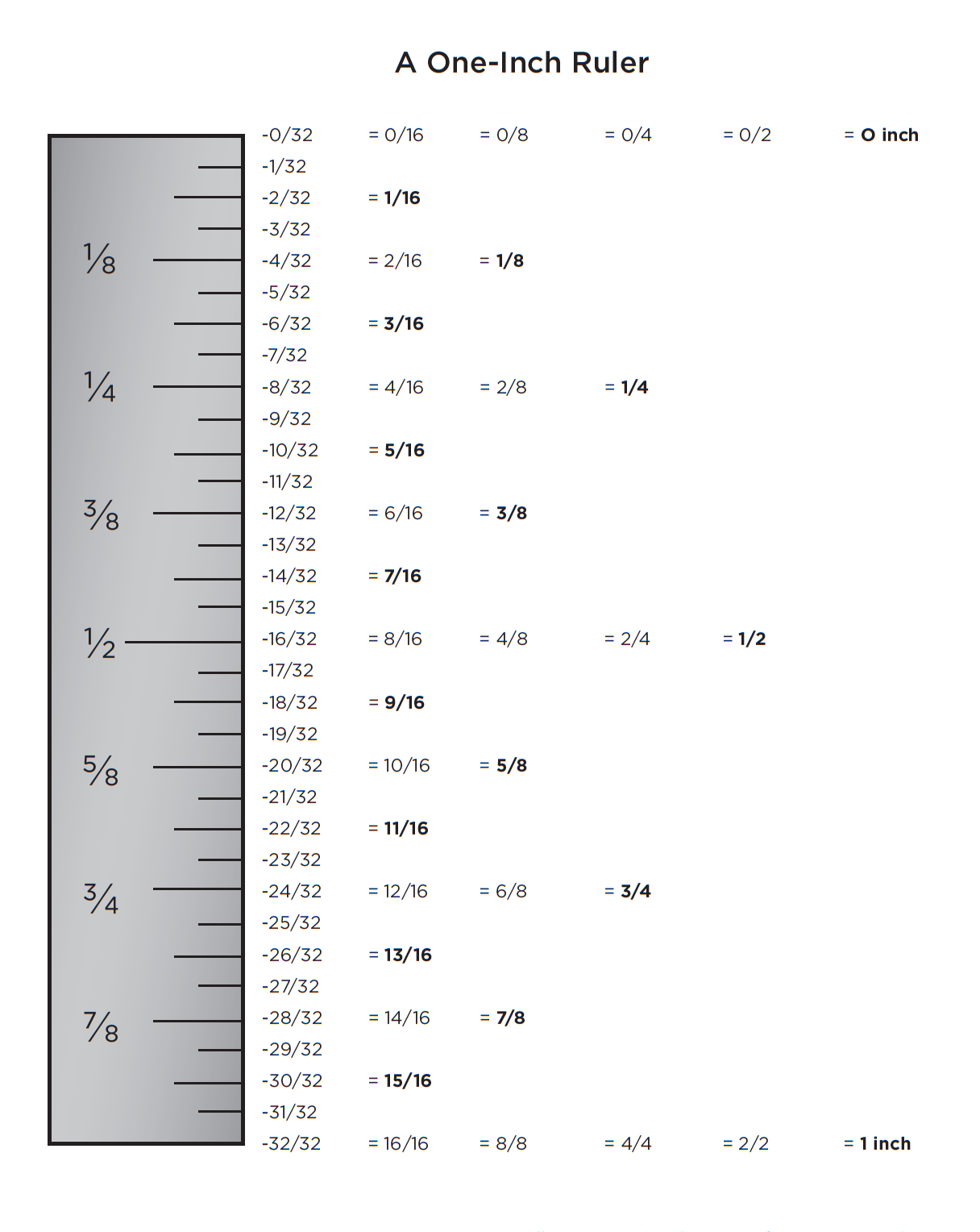

one inch ruler.png — One-inch ruler divided into 32 equal increments, showing equivalent fractions including sixteenths, eighths, quarters, halves, and one whole inch.

Figure: One-inch Ruler

Equivalent Fractions

The same location on a ruler can often be described by several equivalent fractions.

For example:

1/2 = 2/4 = 4/8 = 8/16 = 16/32

Other common equivalents include:

Table with measurements and their equivalent fractions
Measurement	Equivalent Fractions
1/8	2/16 = 4/32
1/4	2/8 = 4/16 = 8/32
3/8	6/16 = 12/32
1/2	4/8 = 8/16 = 16/32
5/8	10/16 = 20/32
3/4	6/8 = 12/16 = 24/32
7/8	14/16 = 28/32

Whenever possible, measurements should be written using the simplest fraction.

For example, write 3/4 inch, not 12/16 inch.

How to Read a Measurement

When reading a ruler:

Find the last whole-inch mark before the measurement.
Count the fractional divisions beyond that whole inch.
Identify the smallest division being used.
Reduce the fraction when necessary.

For example, a measurement that reaches 12 marks past 2 inches on a ruler divided into sixteenths is:

2 12/16 inches

Reduce the fraction:

2 3/4 inches

Read the Lines Carefully

Different line lengths help identify the fractions on a ruler.

Typically:

The longest line marks the whole inch.
The next longest marks 1/2 inch.
Shorter lines mark quarters.
Still shorter lines mark eighths.
The shortest lines may mark sixteenths or thirty-seconds.

Do not rely only on the length of the line. Learn to understand where the fraction falls within the inch.

Measure Before You Cut

Good woodworking depends on more than simply reading the ruler correctly.

Before machining a part:

Confirm the required dimension.
Measure carefully.
Check the measurement again.
Make sure you understand which part of the material must remain after the cut.

A few extra seconds spent checking a measurement can prevent wasted material and unnecessary rework.

Practice Your Measurement Skills

If you would like more practice reading fractional measurements, use the exercises below. Try to identify each marked measurement before checking your work.

Ruler Reading Practice
Use the six-inch ruler to identify the marked measurements.

$Six-inch ruler with multiple marked fractional-inch measurements for optional student practice$

Fractions and Measurement Practice
Use the ruler and fraction exercises to practice reading measurements and recognizing equivalent fractions.

$Optional practice exercise using rulers and equivalent fractions to reinforce measurement in inches$

Check Yourself

What does each mark represent on a ruler divided into 32 equal parts per inch?
What is 8/16 inch in simplest form?
What is 12/16 inch in simplest form?
Why should a measurement be checked before making a cut?
Which is the clearer way to record a measurement: 24/32 inch or 3/4 inch?
