Essential Tools for HVAC Technicians
๐ง Essential HVAC Tools Checklist ๐ง
✔ Hand Tools:
-
Screwdrivers (Phillips & Flathead)
-
Adjustable Wrench
.jpg?revision=1)
-
Nut Drivers (1/4" & 5/16")
-
Hex Key Set (Allen Wrenches)
✔ Electrical Tools:
-
Digital Multimeter (For voltage, continuity, capacitance checks)
-
Clamp Meter (For measuring amp draw)
-
Wire Strippers and Crimpers
-
Non-Contact Voltage Tester
.jpg?revision=1&size=bestfit&width=599&height=337)
✔ Refrigeration Tools:
-
Manifold Gauge Set (For refrigerant pressures)
-
Vacuum Pump (For evacuating systems)
.jpg?revision=1&size=bestfit&width=540&height=405)
-
Refrigerant Scale (For accurate charging)
-

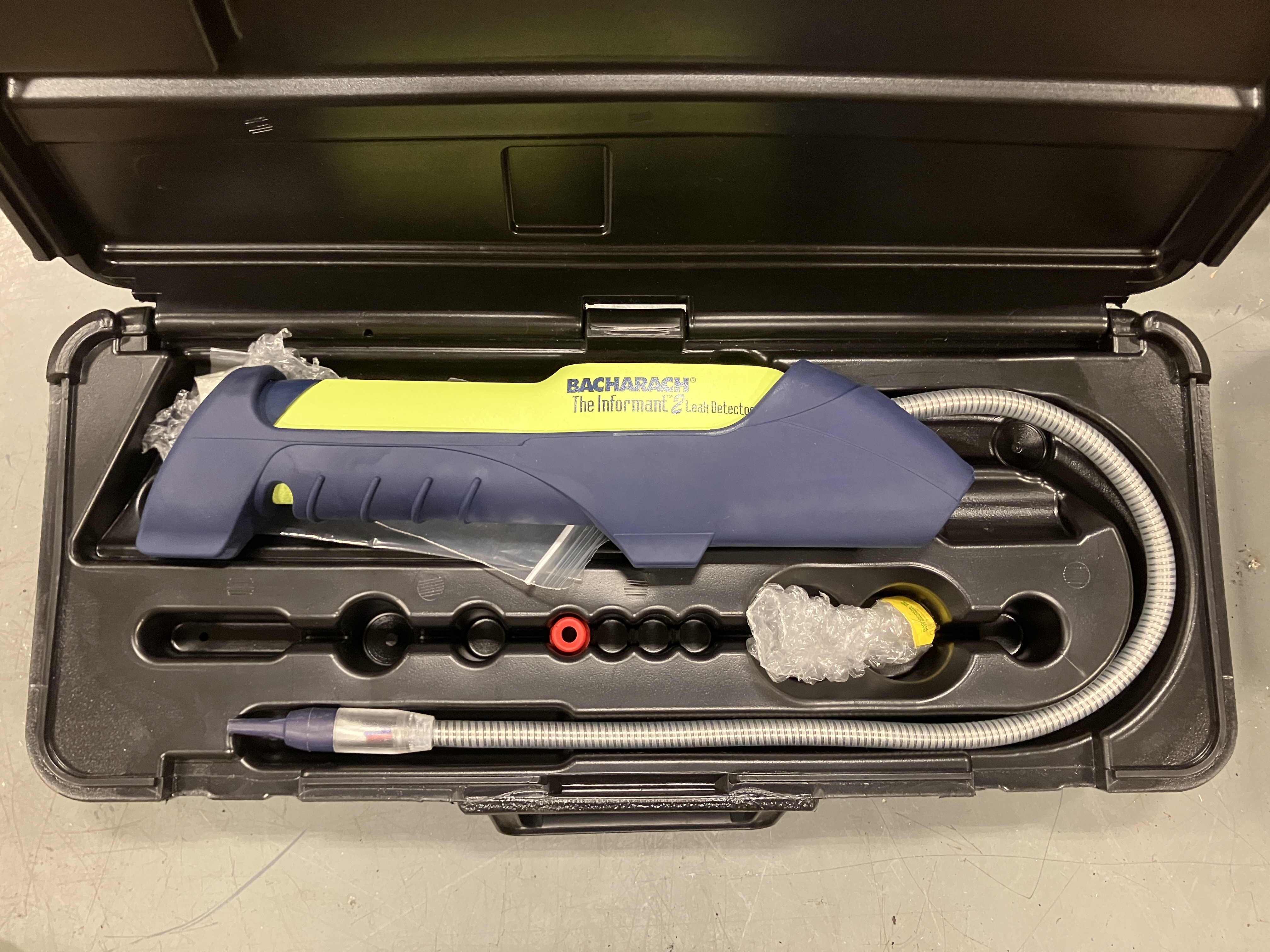

Leak Detector (For detecting refrigerant leaks)
✔ Airflow & Ductwork Tools:
-

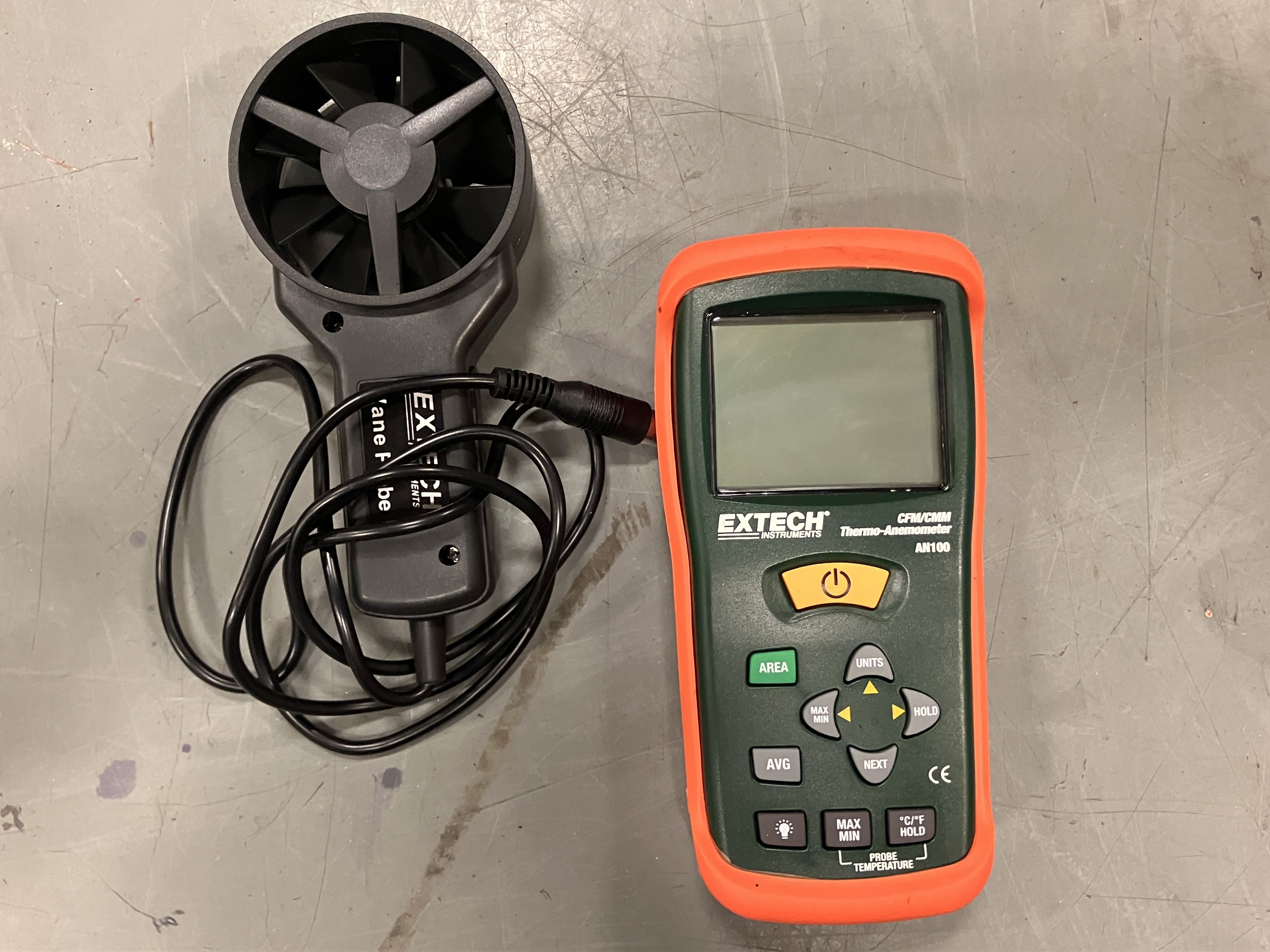

Anemometer (For measuring airflow)
-

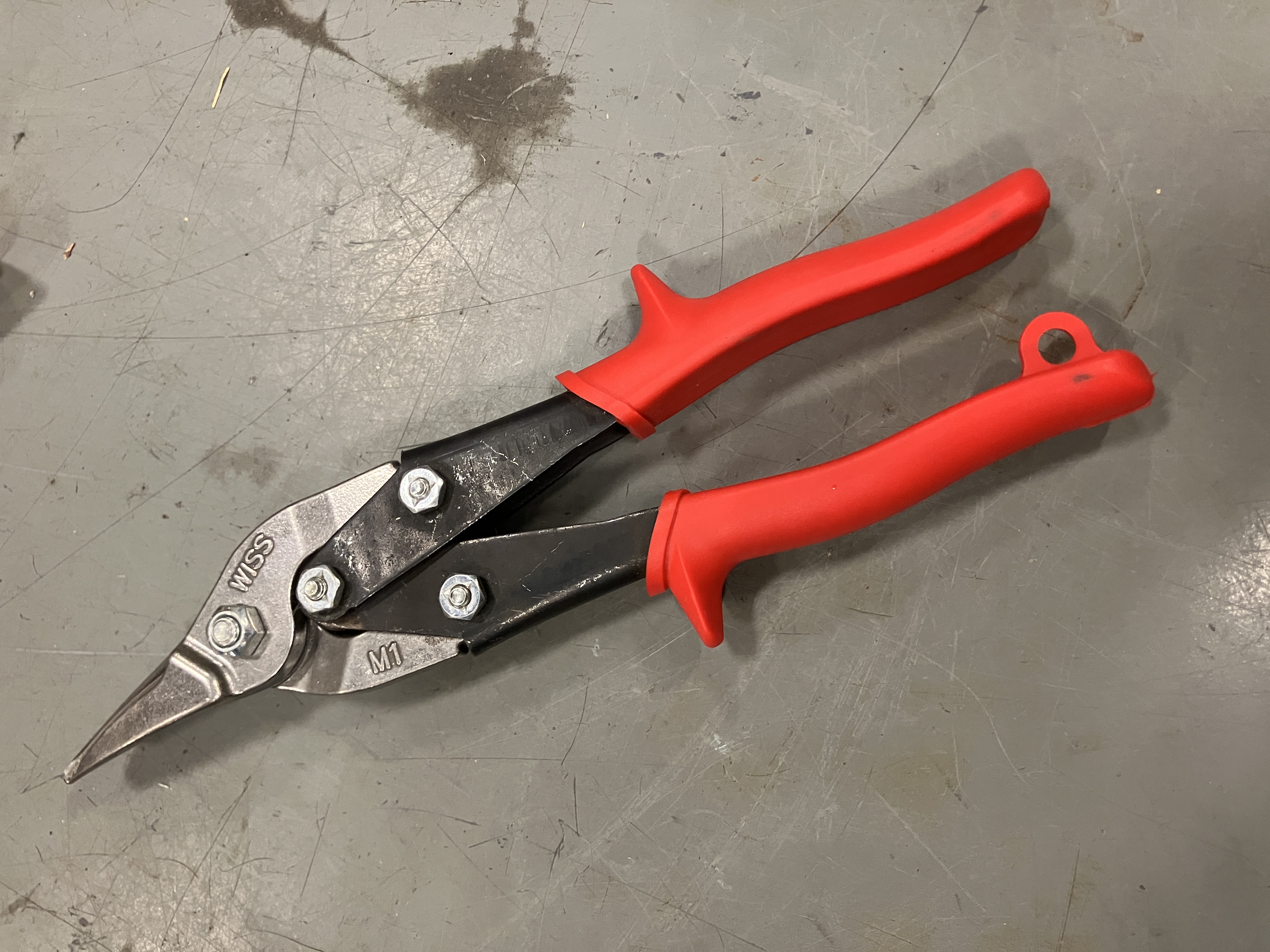

Sheet Metal Shears (For cutting ducts)
Yellow = straight-cut Red = Left-cut
✔ Combustion Testing Tools:
-
Gas Leak Detector
-
Combustion Analyzer
-
CO Detector
๐ Best Practices & Tips for Beginners
✅ Label all tools for quick identification on job sites.
✅ Keep a tool bag or backpack organized for efficiency.
✅ Calibrate digital meters and manifold gauges regularly.
✅ Always carry spare batteries for electronic tools.
✅ Wear safety gear—gloves, safety glasses, and knee pads.
✅ Use insulated tools when working with electrical components.
✅ Keep a flashlight or headlamp for working in dimly lit areas.
✅ Follow lockout/tagout (LOTO) procedures when servicing electrical systems.
Final Takeaway
By the end of this chapter, you should understand the basics of heat transfer, ventilation, air conditioning, and refrigeration systems. You should also be familiar with essential HVAC tools and trade terms, as well as basic troubleshooting and maintenance practices. This knowledge will help you as you start working with tools and systems in the HVAC/R trade.
