2.3: How Gas-Fired Heating Systems Work

     Gas-fired heating systems operate by burning fuel (natural gas or propane) to generate heat. The combustion process takes place in a burner assembly, and the heat produced is transferred to air or water, depending on the system type. The heated air or water is then distributed throughout the space, providing warmth.

     The basic principles of heat transfer—conduction, convection, and radiation—are all utilized in gas-fired systems. Heat is transferred through conduction in the heat exchanger, convection when the heated air or water is circulated, and radiation in certain direct heating applications.



How Gas-Fired Heating Systems Work: An In Depth Look

     Gas-fired heating systems are popular because they are reliable and effective at keeping homes and buildings warm. They work by burning fuel—usually natural gas or propane—to make heat. This heat is then transferred to air or water, depending on the type of system. Once the heat is created, it gets distributed throughout the space to provide warmth.

     The system starts with a process called combustion, which simply means burning fuel. The system has a burner where the gas gets lit, creating a flame. This flame is similar to a small, controlled fire. When the system turns on, an igniter lights the gas, and the flame heats up a part called the heat exchanger. This part is like a series of metal tubes or coils that are really good at absorbing heat. The heat exchanger’s job is to move heat from the flame to either air or water, depending on the system.

     In a forced-air system, the heat from the exchanger warms the air, and a blower pushes this warm air through ducts and vents to each room. This warm air flow is called convection—the movement of warm air that heats the space around it. In hot water or steam systems, the heat exchanger warms water instead of air. This hot water then flows through pipes to radiators or baseboard heaters in different rooms, spreading warmth.

     Gas-fired systems use three types of heat transfer to make sure every room is comfortable: conduction, convection, and radiation. Conduction happens when heat moves through the metal of the heat exchanger, which allows the heat to travel from the burner flame to the air or water. Convection is the movement of warm air or water through ducts or pipes to each room. Some systems also use radiation, where heat is directly given off by a hot surface, like a gas fireplace, warming the objects and people in the room directly.

     Imagine a gas furnace in your home. When the thermostat senses that the room is too cold, it sends a signal to turn on the furnace. The furnace releases gas into the burner, and the igniter lights the flame. The flame heats the exchanger, which in turn heats the air or water. A blower then pushes the warm air through the ducts and out the vents in each room, raising the room’s temperature and making it cozy.

     In summary, gas-fired heating systems work by burning fuel to create heat, which is transferred through the system and distributed to each room. They use conduction in the heat exchanger, convection to move warm air or water, and sometimes radiation for direct heat. This process makes gas heating systems a simple yet effective way to keep spaces warm and comfortable.



NOTE FOR AUTHORS & EDITORS: DIAGRAMS TBD

Educational visual on how gas-fired heating systems work, consider creating a simple, labeled diagram of the entire heating system. Here’s a breakdown of what each element could include:

1. Whole-System Diagram

• Show the key parts of a gas-fired heating system: fuel source, burner, igniter, heat exchanger, blower, ducts or radiators.
• Use arrows to indicate the flow of gas to the burner, the movement of heated air or water, and the heat traveling through the ducts or pipes to the rooms.



2. Combustion and Heat Exchanger Detail

• Zoom in on the burner assembly and heat exchanger with labels for each part.
• Show a small flame in the burner, with arrows indicating heat moving through the metal of the heat exchanger by conduction.



3. Heat Distribution: Convection and Radiation

• Illustrate how the heated air or water flows through ducts (for forced-air systems) or pipes (for hot water systems).
• Add a simple representation of convection by showing warm air flowing from a vent in a room or water moving through radiators.



4. Types of Heat Transfer

• A small sidebar showing icons for conduction, convection, and radiation to visually connect each process to the system:
  • Conduction: Heat moving through metal.
  • Convection: Warm air or water moving through ducts/pipes.
  • Radiation: Direct warmth from a surface like a radiator or fireplace.



Tips for an Engaging Visual:

• Use bright colors for warm air and cool colors for the rest, highlighting the flow of warmth.
• Label clearly and concisely to keep the visual uncluttered and engaging.
• Icons for fuel (gas tank or pipeline), fire (for combustion), and airflow will help simplify complex parts and make the process easier to understand.



Definition: Terms

1. Gas-Fired Heating Systems: Systems that burn natural gas or propane to generate heat, which is then distributed to warm a space.
2. Combustion: The process of burning fuel (natural gas or propane) to produce heat energy.
3. Burner: The part of the heating system where gas is ignited to create a flame for heating.
4. Igniter: A component that lights the gas in the burner to initiate combustion.
5. Heat Exchanger: A series of metal tubes or coils that transfer heat from the burner flame to air or water.
6. Conduction: The transfer of heat through a solid material, such as the metal in the heat exchanger.
7. Convection: The movement of heat through air or water, distributing warmth via ducts or pipes.
8. Radiation: The direct transfer of heat from a hot surface, such as a radiator or gas fireplace, to objects and people in a room.
9. Forced-Air System: A heating system where air is heated in the heat exchanger and distributed to rooms through ducts and vents using a blower.
10. Blower: A fan that pushes warm air through ducts in a forced-air heating system.
11. Hot Water or Steam System: A heating system where water is heated in the heat exchanger and circulated through pipes to radiators or baseboard heaters.
12. Thermostat: A device that monitors room temperature and signals the heating system to turn on or off to maintain the desired temperature.
13. Ducts: Pathways that carry warm air from the heat exchanger to different rooms in a forced-air system.
14. Radiators/Baseboard Heaters: Devices in hot water systems that emit heat into a room by radiating warmth from the heated water inside.
15. Fuel Source: The supply of natural gas or propane used to power the heating system.
16. Hot Surface Ignitor (HSI): A type of igniter that uses heat to ignite the gas in the burner.
17. Thermal Energy: The heat energy produced during the combustion process, used to warm air or water.



Suggested Visual Components and Icons (from librarian note):

• Fuel Source: Icon of a gas tank or pipeline.
• Burner and Flame: Icon of a flame in the burner assembly.
• Heat Exchanger: Metal coils or tubes.
• Convection Process: Arrows showing warm air or water movement.
• Conduction Process: Heat moving through metal.
• Radiation Process: Heat waves radiating from a surface.

This list includes all relevant terms and processes to understand gas-fired heating systems and can serve as a foundational glossary for educational materials.

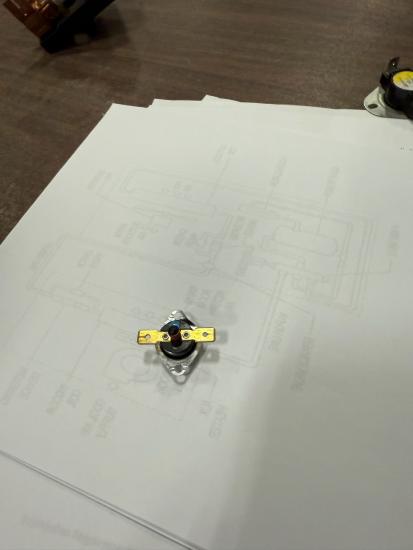

Images: Different types of limit switches: High Limit
