Simple Diagrams of Gas-Fired Heating Systems
Understanding the layout of gas-fired heating systems is like looking at the blueprint of a house—it shows how all the pieces fit together and work as a team. Each type of system has unique components designed to deliver heat efficiently and safely. Let’s break down the basic layouts of gas furnaces, gas boilers, and direct-vent heaters, focusing on how the key parts work together.
Gas Furnace System Layout
A gas furnace system is like a warm-air delivery truck—it heats air and sends it throughout the house using ductwork. The layout includes several key components:
- Burner Assembly: Where gas is ignited to produce heat.
- Heat Exchanger: Transfers heat from the burner to the air while keeping combustion gases separate.
- Blower Motor: Pushes the warmed air through the ductwork and into the rooms.
- Ductwork: Acts as the delivery route, carrying the warm air to vents throughout the building.
- Exhaust Vent: Safely removes combustion gases like carbon monoxide from the system.
The furnace components work together like a team: the burner creates the heat, the heat exchanger absorbs it, and the blower sends it on its journey through the ducts to warm every corner of the home.

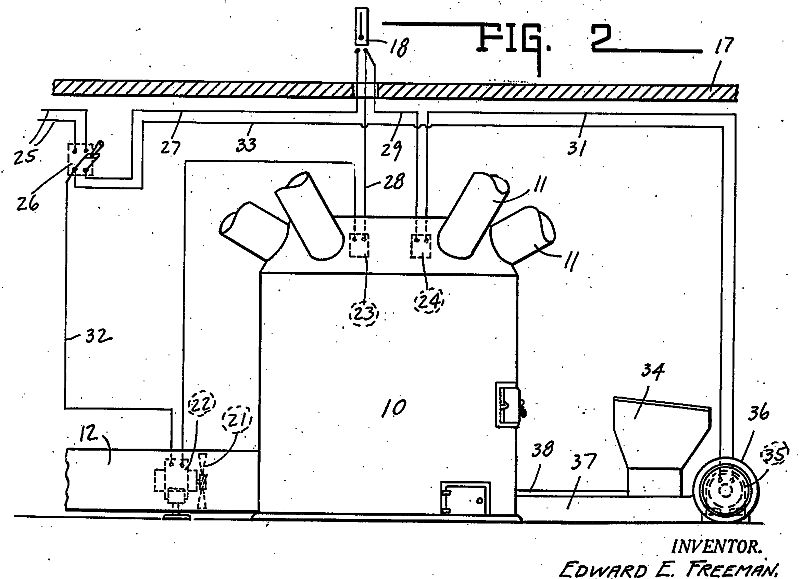

Freeman Furnace System, Public Domain
Gas Boiler System Layout
A gas boiler system heats water instead of air, making it more like a radiator system in a car than a delivery truck. The layout focuses on heating water and circulating it through pipes to distribute warmth:
- Burner: Ignites the gas to heat the water.
- Heat Exchanger: Transfers heat from the burner to the water, similar to a pot on a stove.
- Circulating Pump: Moves the heated water through the pipes to radiators or radiant floor tubing.
- Radiators or Radiant Floor Tubing: Releases the heat into the room, warming the air and surfaces.
- Expansion Tank: Absorbs pressure changes as the water heats and expands.
In this system, the burner heats the water, the pump moves it where it’s needed, and the radiators or floor tubing deliver the warmth. It’s a steady, consistent way to heat spaces.
Radiant Based HVAC System for Heating and Cooling by RBean, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons
Direct-Vent Heater Layout
Direct-vent heaters are simpler systems, perfect for heating specific areas. They’re like a personal heater with extra safety features. The layout includes:
- Combustion Chamber: Where gas is burned to create heat.
- Vent Intake: Pulls in fresh air from outside for combustion.
- Exhaust Vent: Expels combustion gases safely outdoors.
Direct-vent heaters are sealed systems, meaning they don’t rely on indoor air for combustion. This makes them safer and more efficient, especially in tightly sealed homes.
Practical Examples for Technicians
- Imagine you’re working on a gas furnace, and the homeowner complains about weak airflow. Knowing the layout, you might inspect the blower motor and ductwork to find the issue.
- For a gas boiler system, if one radiator isn’t heating, understanding the layout will guide you to check the circulating pump or bleed air from the affected radiator.
- In a direct-vent heater, if the system won’t light, you’ll know to inspect the combustion chamber and ensure the vent intake isn’t blocked.
Why Layouts Matter
As an HVAC technician, understanding these layouts helps you troubleshoot and repair systems more effectively. Knowing how the parts fit together lets you identify issues quickly and explain the problem to homeowners clearly. Whether you’re fixing a blower motor in a furnace, replacing a circulating pump in a boiler, or clearing a vent in a direct-vent heater, the system layout is your guide to keeping homes warm and safe.
Understanding Gas-Fired Heating System Layouts
Imagine walking into a house on a chilly morning. The warmth you feel isn’t magic—it’s the result of a carefully designed heating system working behind the scenes. Each type of gas-fired heating system, whether it’s a furnace, boiler, or direct-vent heater, has its own layout, with parts that fit together like a puzzle to keep the home comfortable and safe. Let’s explore these systems and how their components work as a team.
The Gas Furnace: A Warm-Air Delivery Truck
Picture a gas furnace as a delivery truck for warm air. It starts in the burner assembly, where gas ignites to create heat. That heat moves into the heat exchanger, a metal component that absorbs the heat while keeping harmful combustion gases separate.
Now the blower motor kicks into action, pushing the warm air through a network of ductwork. Like highways and streets, these ducts carry the warm air to every room in the house, where it exits through vents. Meanwhile, the exhaust vent safely carries combustion gases like carbon monoxide out of the house, ensuring the air inside stays clean and safe.
One winter evening, imagine a homeowner notices one room isn’t as warm as the others. As an HVAC technician, you’d know the layout of the furnace system and start by checking the blower motor or inspecting the ductwork for blockages. A quick adjustment, and the delivery truck is back on its route, warming the entire house.
The Gas Boiler: The Radiator’s Steady Heat
Unlike the furnace, a gas boiler focuses on water instead of air. Think of it as a radiator system in a car, providing steady, even heat. The process begins in the burner, where gas ignites to heat the water. The heat moves through a heat exchanger, much like a pot of water heating on a stove.
From there, a circulating pump takes over, sending the hot water through pipes to radiators or radiant floor tubing. These components release the heat into the room, warming the air and surfaces around them. An expansion tank absorbs any pressure changes as the water heats, keeping the system stable.
Now picture a homeowner who complains about a cold radiator in their living room. With the boiler layout in mind, you’d check the circulating pump or bleed air from the radiator. After troubleshooting, the water flows smoothly, and the room fills with warmth again.
The Direct-Vent Heater: A Simple, Safe Space Heater
Direct-vent heaters are like personal heaters with extra safety features. Inside the combustion chamber, gas burns to create heat. Fresh air for combustion comes from a vent intake, which pulls air from outside. At the same time, the exhaust vent expels combustion gases outdoors, keeping the indoor air clean.
This sealed system makes direct-vent heaters ideal for small spaces or tightly sealed homes. Imagine being called to a home where the direct-vent heater won’t ignite. Knowing the system layout, you’d check for blockages in the vent intake or issues in the combustion chamber. With a quick fix, the heater is back in action, providing safe, localized warmth.
Why These Layouts Matter
Every heating system is like a team, with each part playing an essential role. As an HVAC technician, understanding these layouts helps you troubleshoot issues and explain problems to homeowners. Whether it’s fixing a blower in a furnace, adjusting a pump in a boiler, or clearing a vent in a direct-vent heater, knowing how the pieces fit together makes your job easier and ensures homes stay warm and safe.
So the next time you step into a house on a cold day, think about the invisible work happening behind the walls and floors. Thanks to these heating systems, warmth is always just a few steps away.
