Essential Tools for Gas-Fired Heating Systems
General Hand Tools:
✔ Adjustable wrench

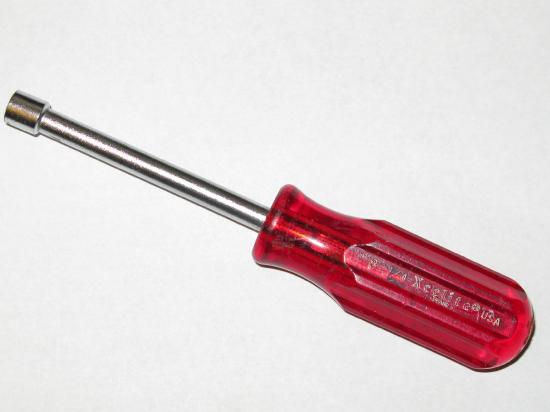

✔ Nut drivers (1/4" & 5/16")

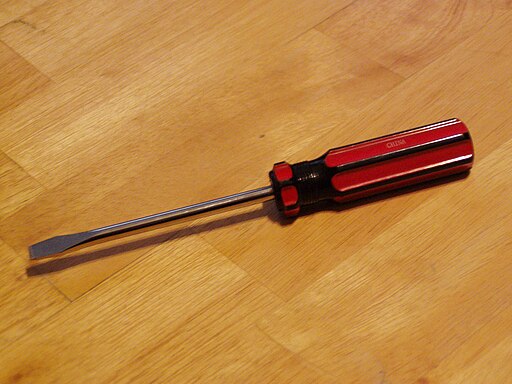

✔ Screwdrivers (Phillips & flathead)
✔ Hex key set (Allen wrenches)

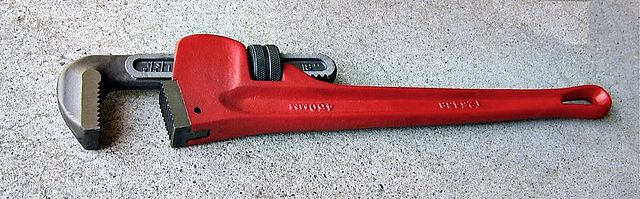

✔ Pipe wrenches (for gas line adjustments)
Combustion Testing & Safety Tools:
✔ Combustion analyzer (for checking fuel-to-air ratios)

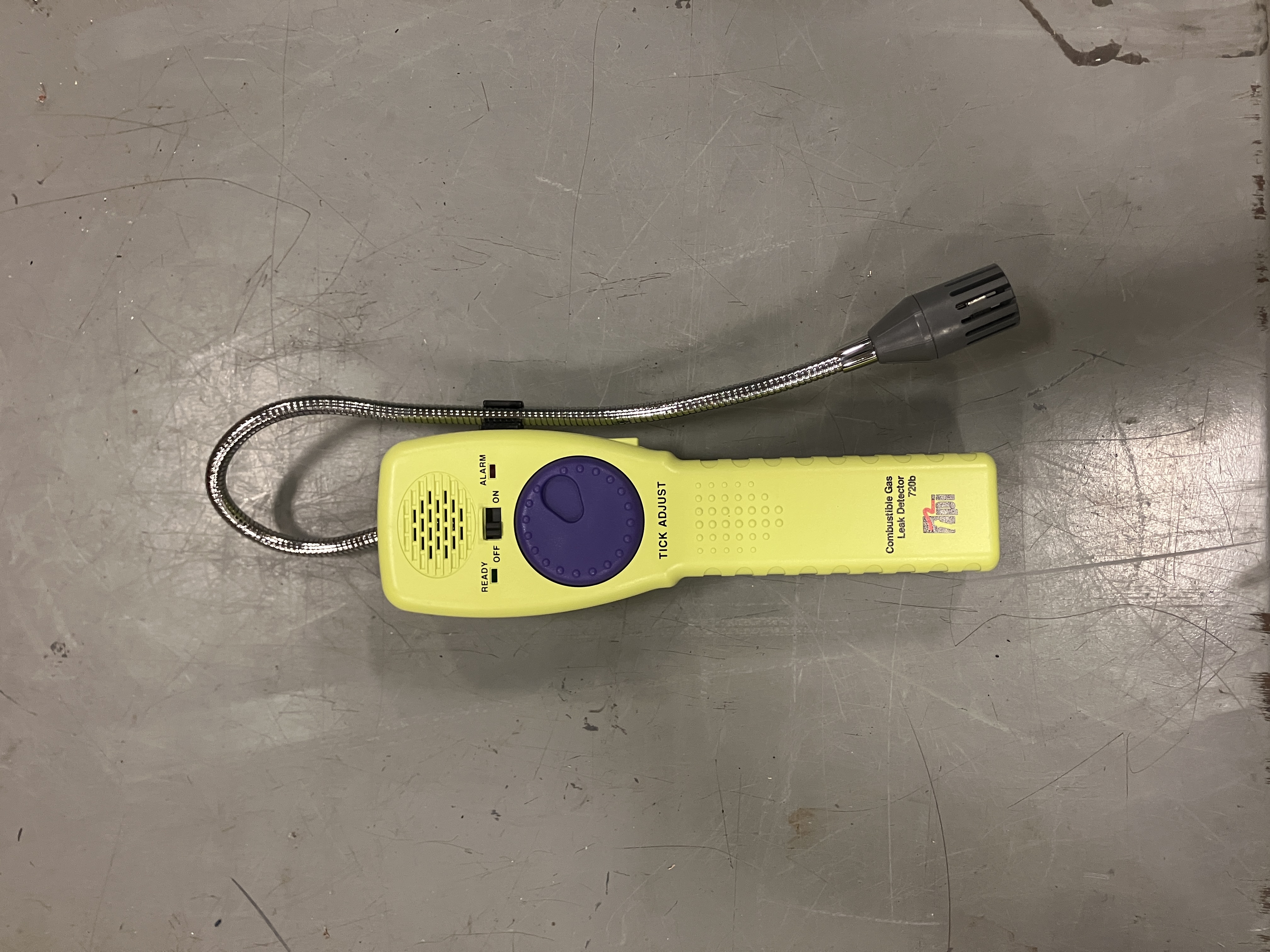

✔ Gas leak detector (for detecting gas leaks)
✔ CO detector (for monitoring carbon monoxide levels)
_01.jpg?revision=1&size=bestfit&width=354&height=630)
✔ Draft gauge (for testing venting systems)

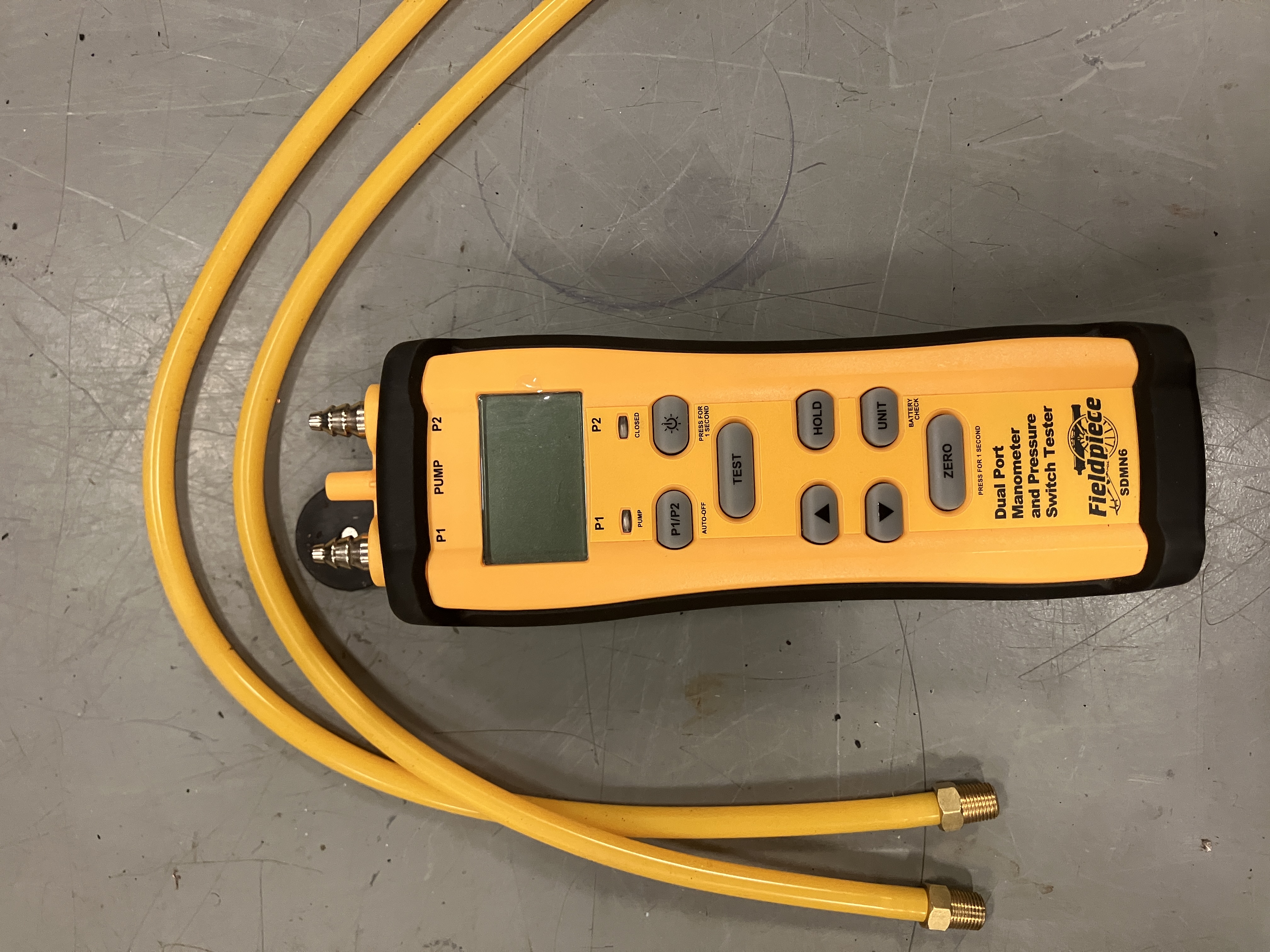

✔ Manometer (for checking gas pressure)
Electrical & Ignition System Tools:
✔ Digital multimeter (for voltage and continuity checks)

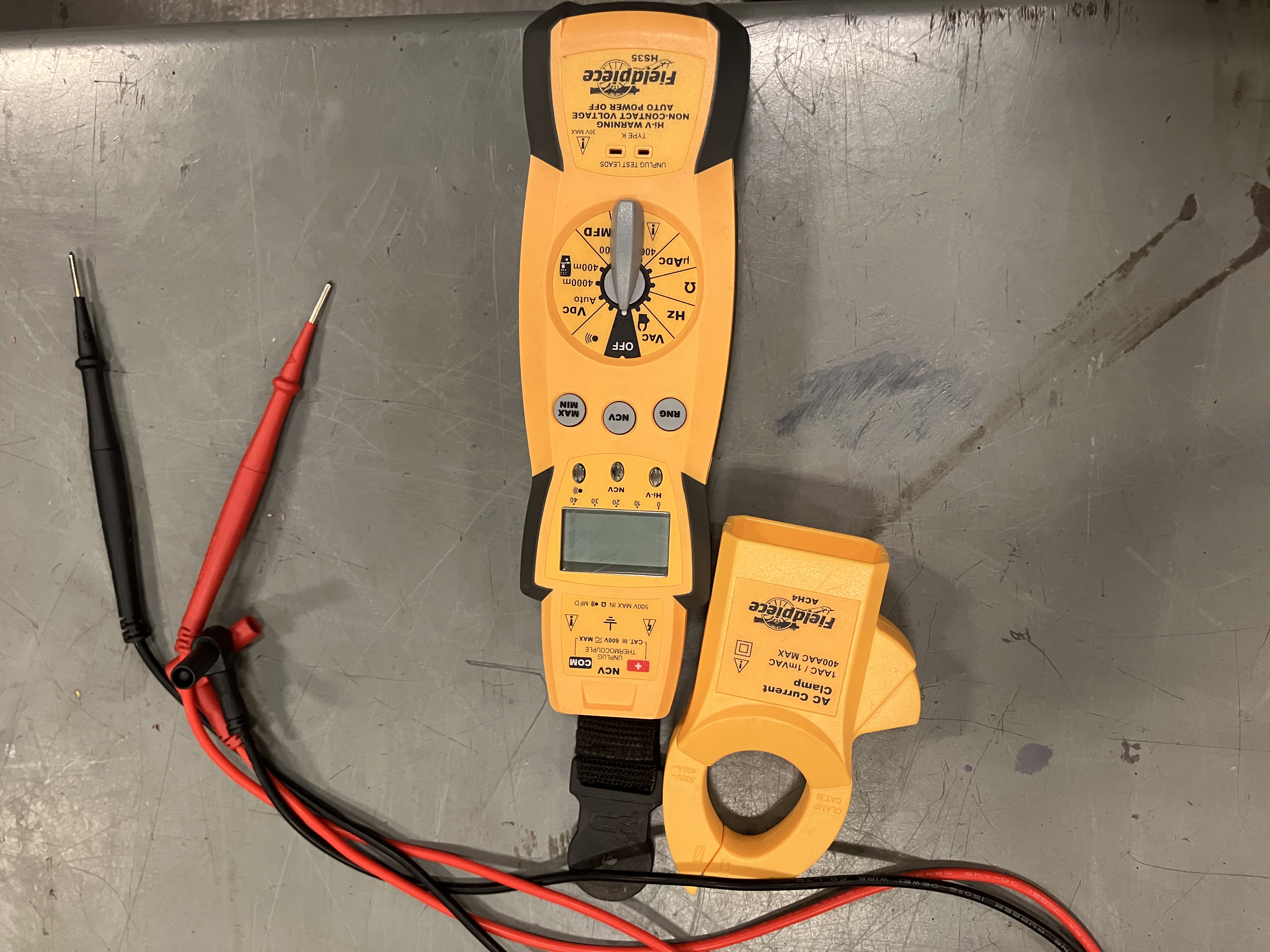

✔ Ignition tester (for verifying igniter operation)
✔ Sandpaper/emery cloth (for cleaning flame sensors)
✔ Clamp meter (for measuring amp draw on motors)
Airflow & Circulation Tools:

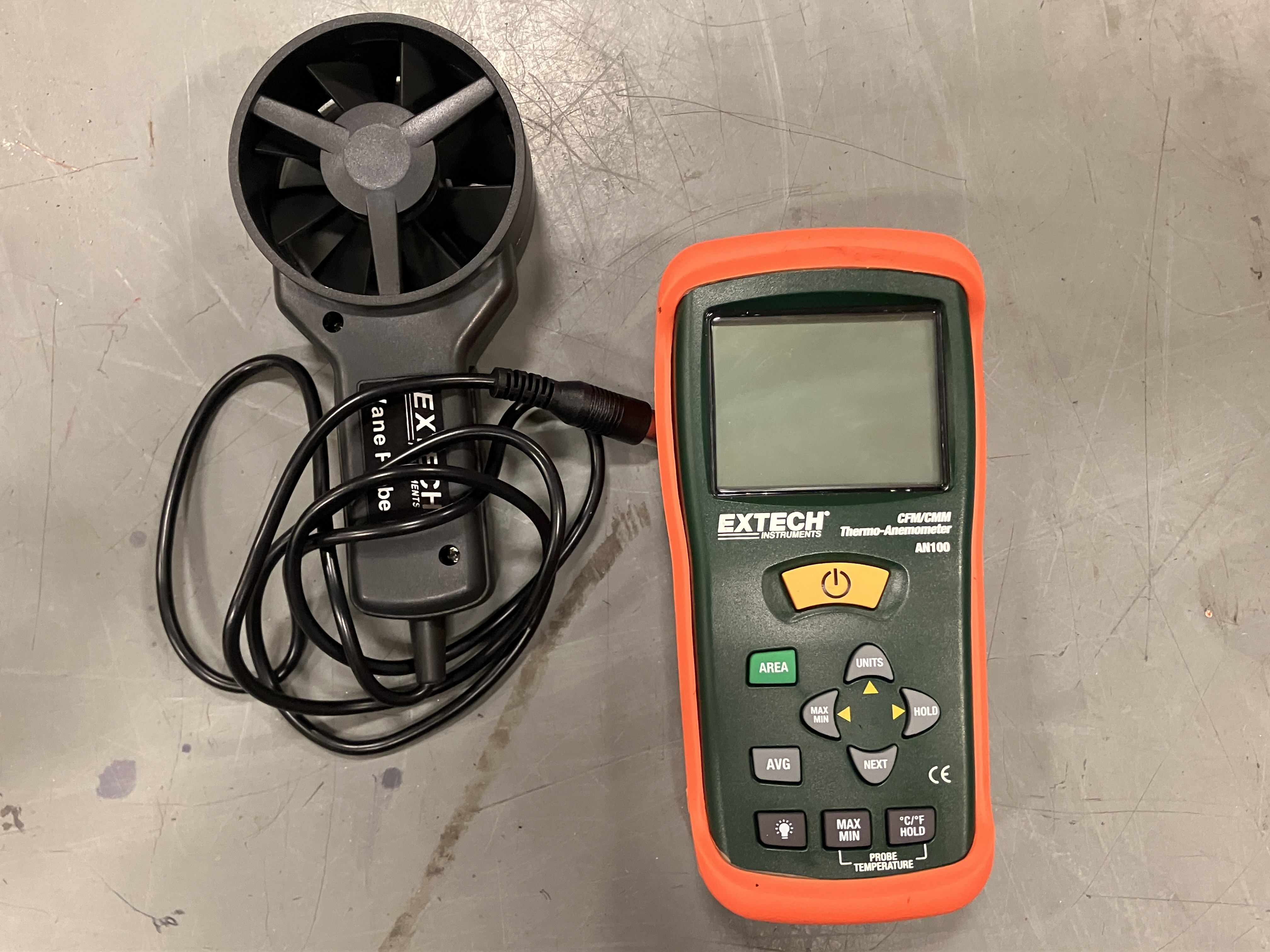

✔ Anemometer (for measuring airflow)

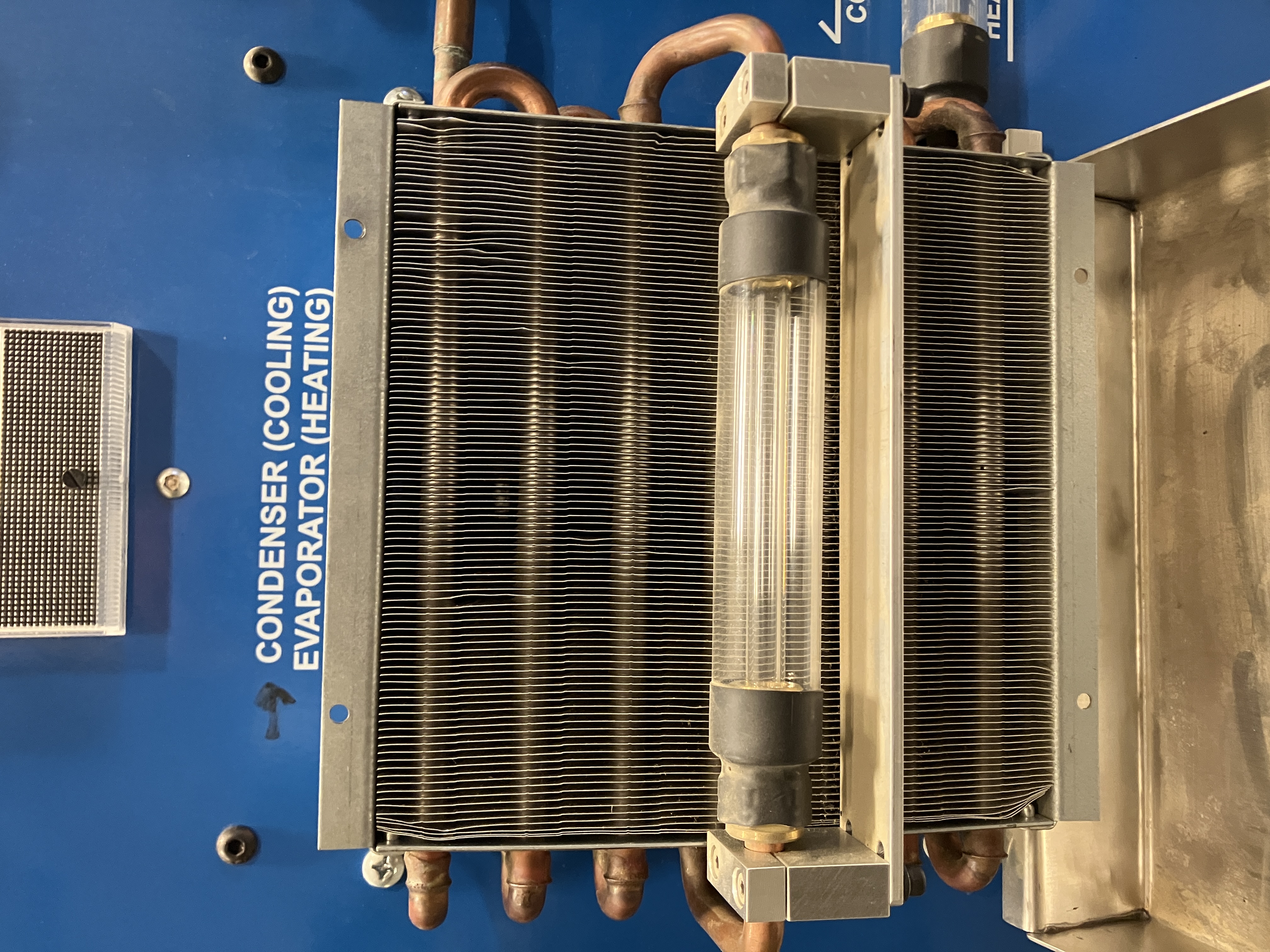

✔ Fin comb (for cleaning blower coils)
✔ Tachometer (for checking blower motor speeds)
✔ Smoke pen (to visualize airflow patterns)
Pro Tips for Gas-Fired Heating System Maintenance
✔ Inspect burners for soot buildup and adjust gas pressure as needed.
✔ Check heat exchangers for cracks that could lead to CO leaks.
✔ Ensure ignition systems are clean and functional before operation.
✔ Verify ventilation paths to prevent dangerous exhaust gas buildup.
✔ Monitor blower operation for proper air distribution.
✔ Perform combustion analysis on every maintenance check.
✔ Regularly inspect and clean air filters for maximum efficiency.
✔ Keep vent pipes clear of obstructions to maintain exhaust flow.
HVAC Gas System Maintenance Checklist
✔ Test gas pressure at the inlet and manifold.
✔ Inspect and clean burners for proper flame shape and color.
✔ Check all electrical connections for signs of wear or corrosion.
✔ Lubricate blower motor bearings to prevent excessive wear.
✔ Verify thermostat calibration to ensure accurate operation.
✔ Inspect venting system for leaks or blockages.
✔ Check flame sensor for proper ignition response.
✔ Confirm proper combustion air supply for safe operation.
✔ Inspect condensate drain lines on condensing systems.
Image: Saftey Tools: Saftey Glasses and Gloves
