Essential Tools for Cooling Systems
General Hand Tools:
✔ Adjustable wrench
.jpg?revision=1)
✔ Nut drivers (1/4" & 5/16")
✔ Screwdrivers (Phillips & flathead)
✔ Hex key set (Allen wrenches)
✔ Pipe cutters (for refrigerant lines)
Refrigerant Handling & Testing Tools:
✔ Manifold gauge set (for refrigerant pressures)

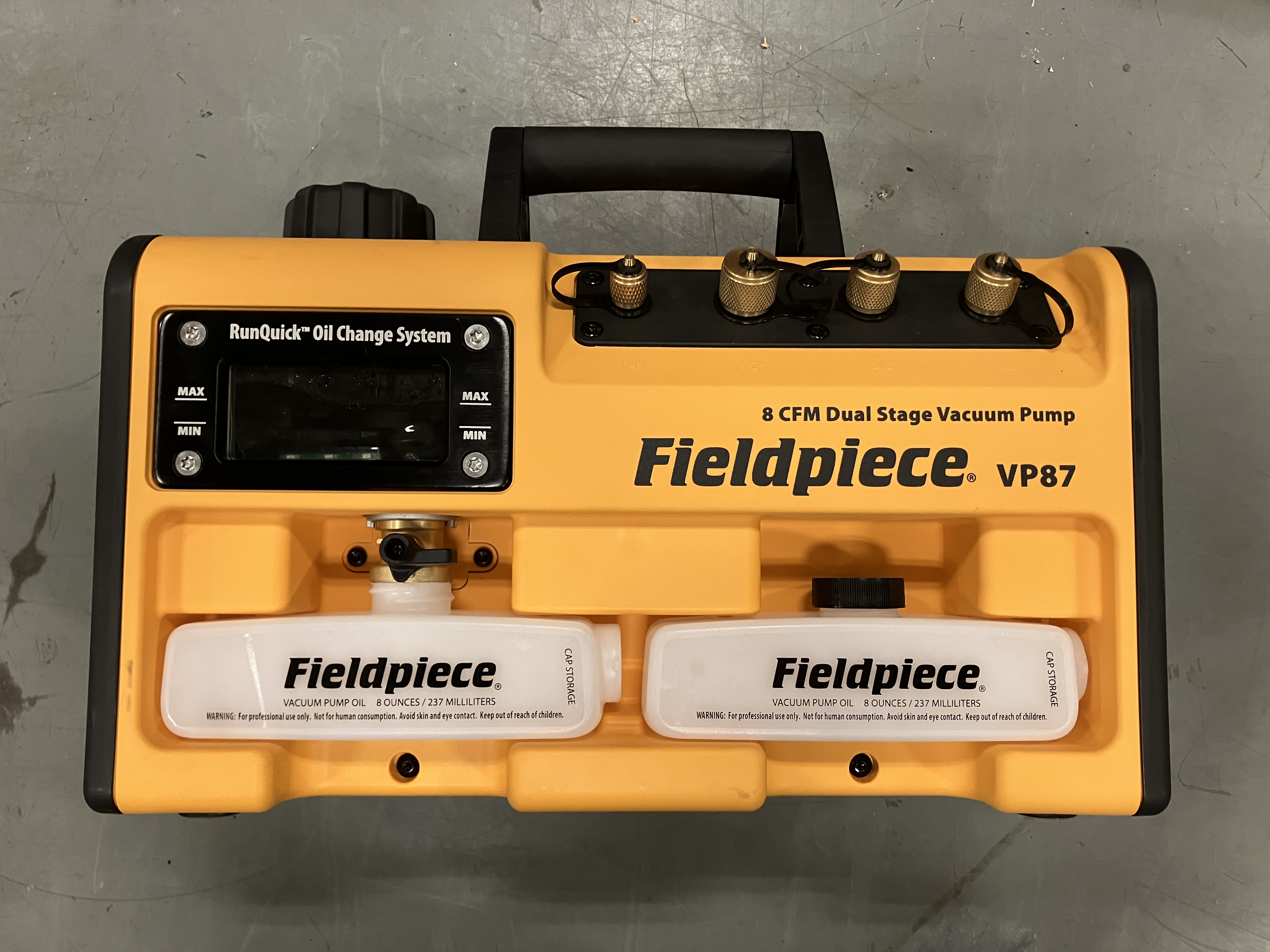

✔ Vacuum pump (for system evacuation)

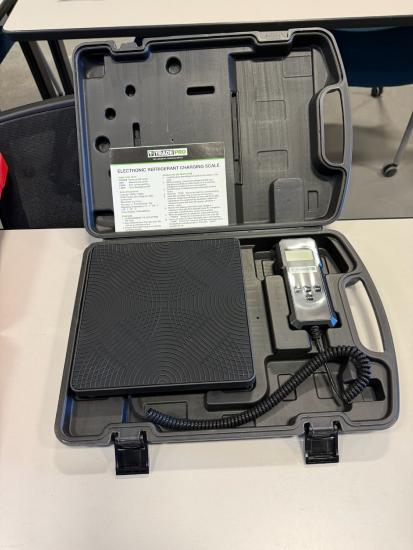

✔ Refrigerant scale (for accurate charging)

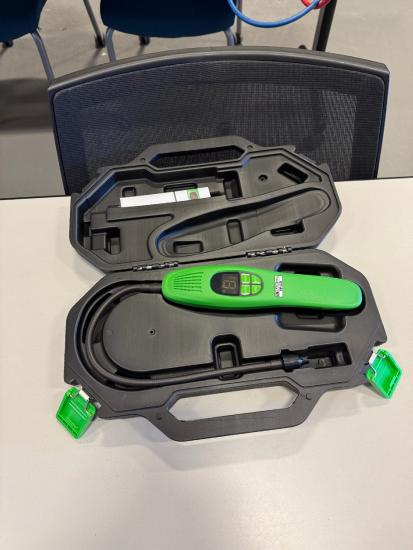

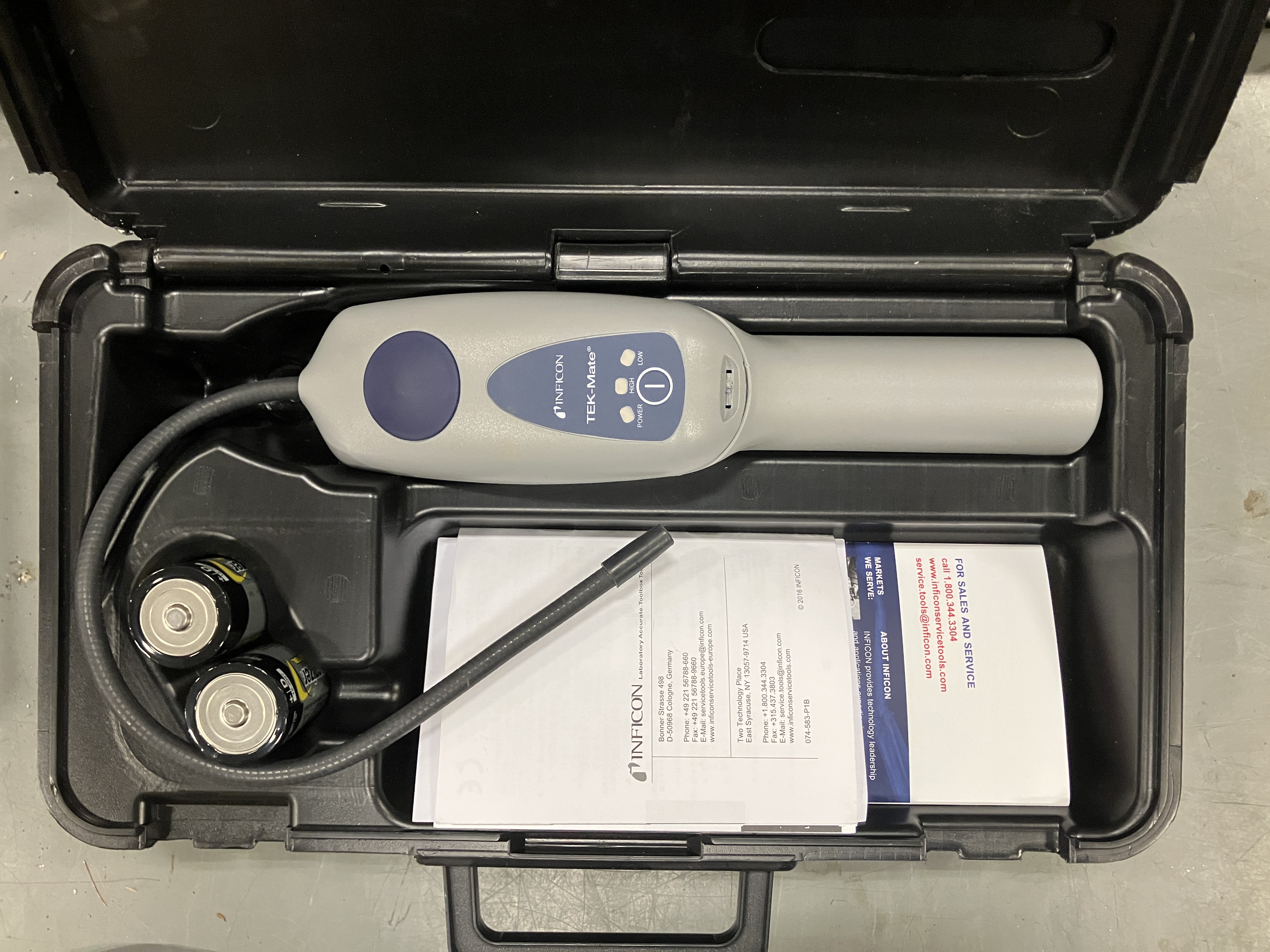

✔ Leak detector (for identifying refrigerant leaks)

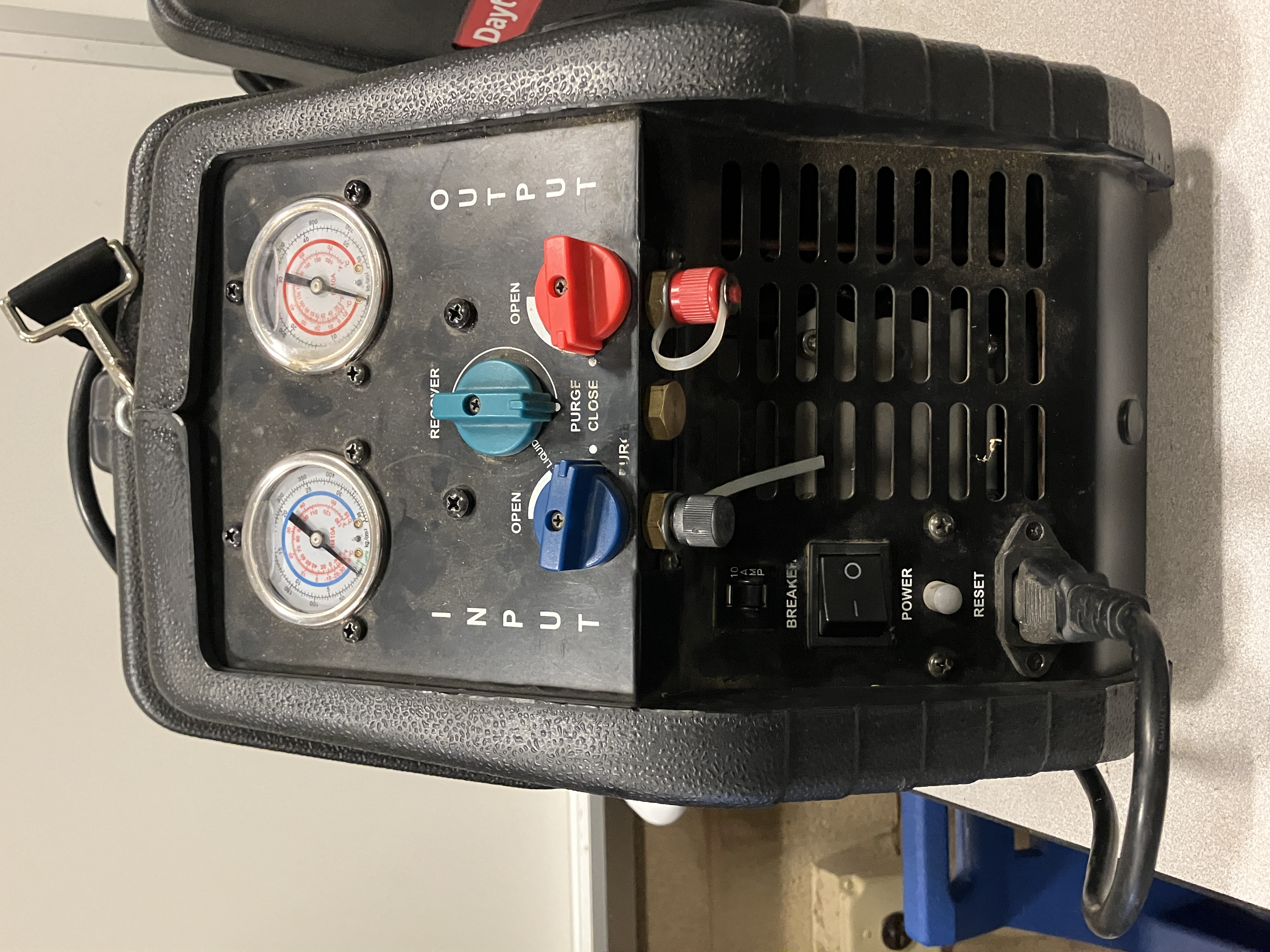

✔ Recovery machine (for reclaiming refrigerant)
Airflow & Cooling Efficiency Tools:

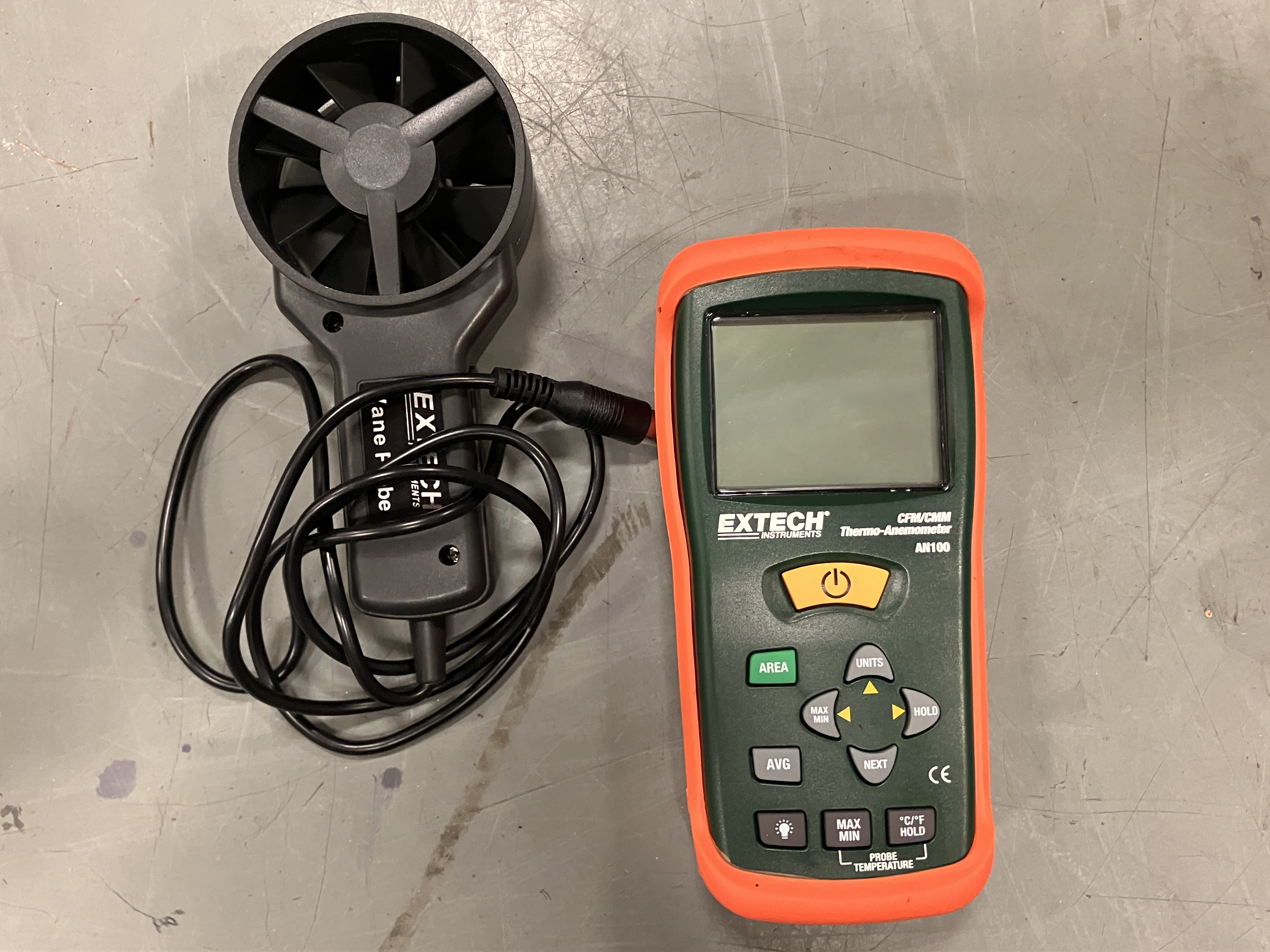

✔ Anemometer (for measuring airflow)
.jpg?revision=1&size=bestfit&width=621&height=298)
✔ Digital thermometer (for checking superheat & subcooling)
✔ Fin comb (for cleaning condenser & evaporator coils)
✔ Smoke pen (to visualize airflow patterns)

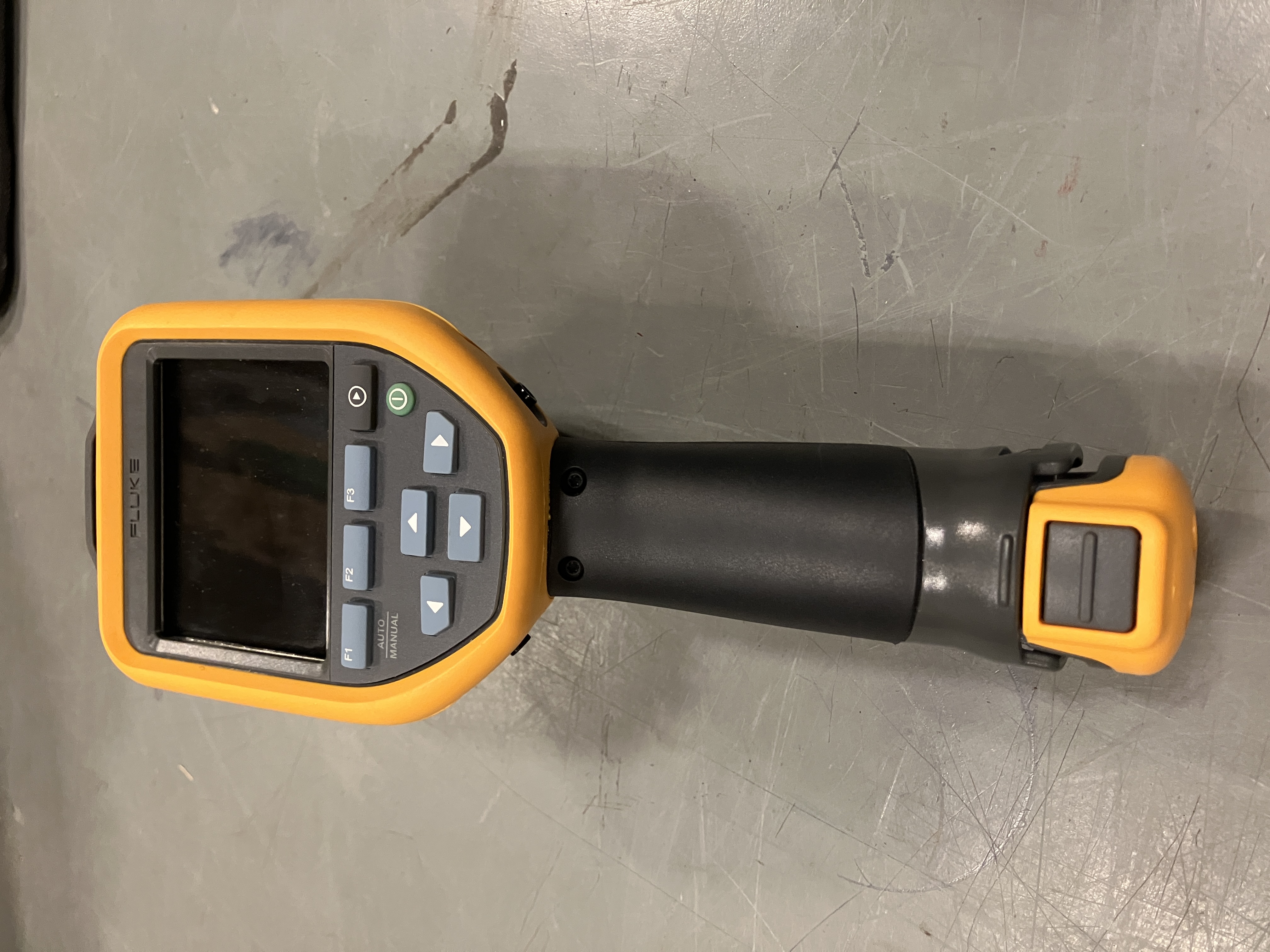

✔ Thermographic camera (to detect temperature variations)
Electrical & Control System Tools:
✔ Digital multimeter (for voltage, current, and continuity checks)
✔ Clamp meter (for measuring amp draw)
.jpg?revision=1&size=bestfit&width=277&height=608)

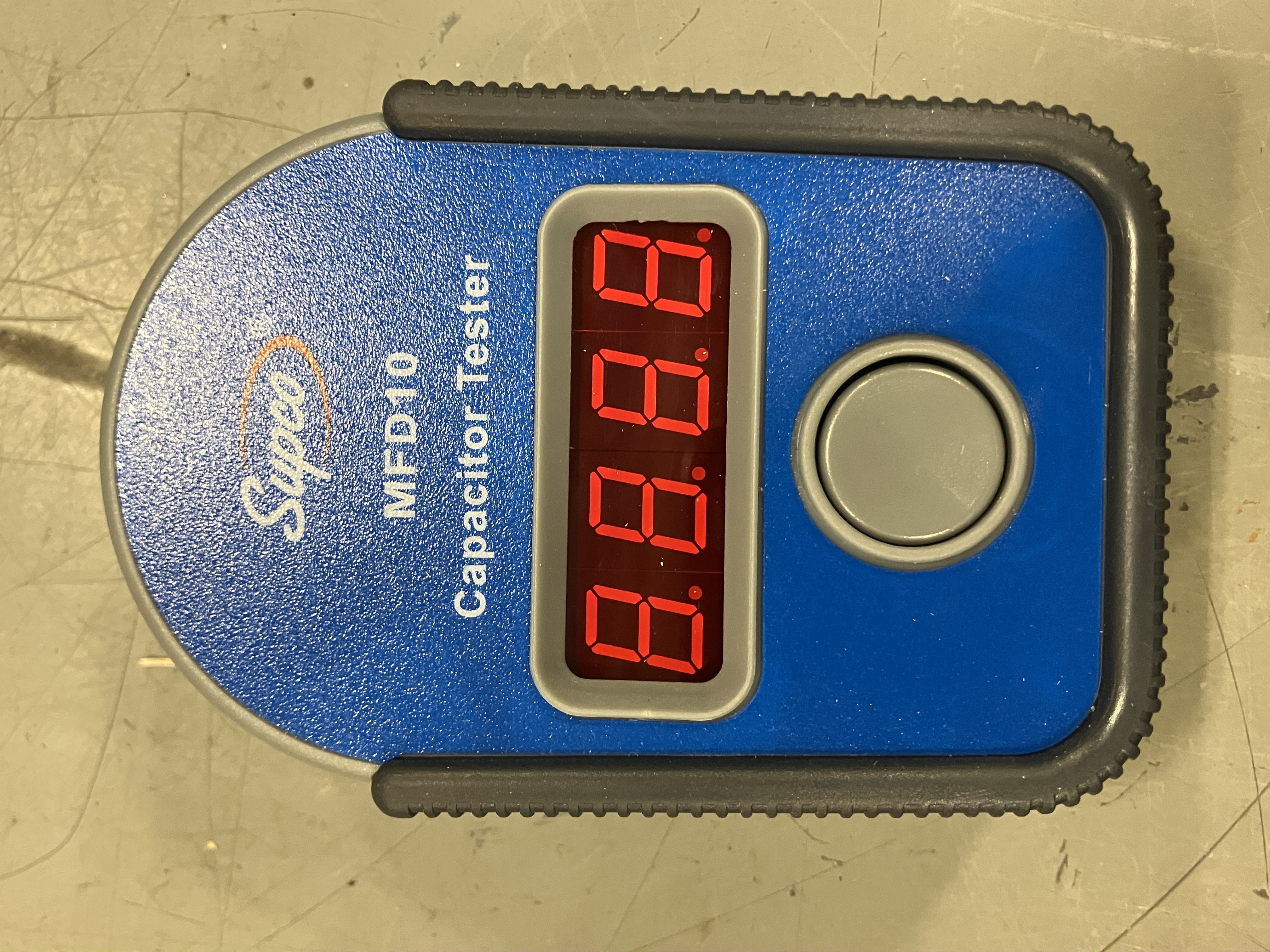

✔ Capacitor tester (for evaluating motor capacitors)

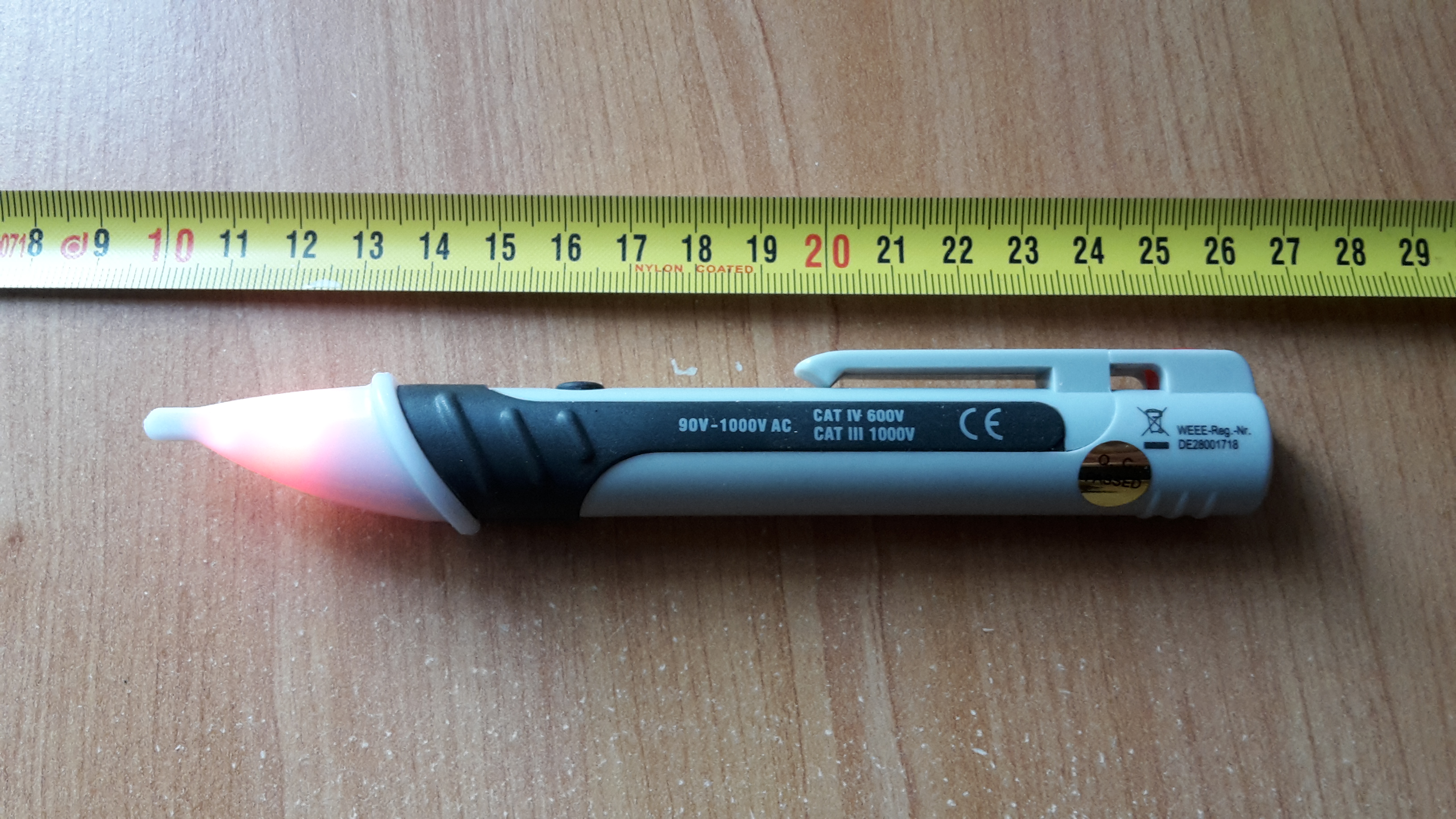

✔ Non-contact voltage tester (for checking live wires)
✔ Wiring diagrams (for troubleshooting control boards)
Pro Tips for Cooling System Maintenance
✔ Inspect condenser and evaporator coils regularly for dirt buildup.
✔ Check refrigerant levels using the superheat and subcooling method.
✔ Ensure proper airflow by inspecting ductwork and vents.
✔ Test for refrigerant leaks before recharging a system.
✔ Monitor compressor performance for unusual noises or excessive cycling.
✔ Verify thermostat accuracy and recalibrate if needed.
✔ Inspect electrical connections for corrosion or loose terminals.
✔ Perform a full system evacuation before recharging refrigerant.
HVAC Cooling System Maintenance Checklist
✔ Check and clean air filters every 1-3 months.
✔ Inspect and tighten electrical connections to prevent arcing.
✔ Lubricate fan motors and bearings if applicable.
✔ Test defrost cycles on refrigeration systems.
✔ Check the condensate drain line for blockages.
✔ Measure system pressures with a manifold gauge set.
✔ Ensure proper refrigerant recovery when servicing systems.
✔ Examine expansion valves for proper operation and potential restrictions.
✔ Calibrate the thermostat for accurate temperature control.
✔ Inspect blower fans and belts for wear and proper tension.
.
Image: Nitrogen Pressure Regulator (no brainer)
Image 2: Turbotorch Nitrogen Pressure Regulator that is adjustable
Image: JB Digital Micron Guage (off and on images)
