Essential Tools for Piping Systems
General Hand Tools:
✔ Adjustable wrench
.jpg?revision=1)

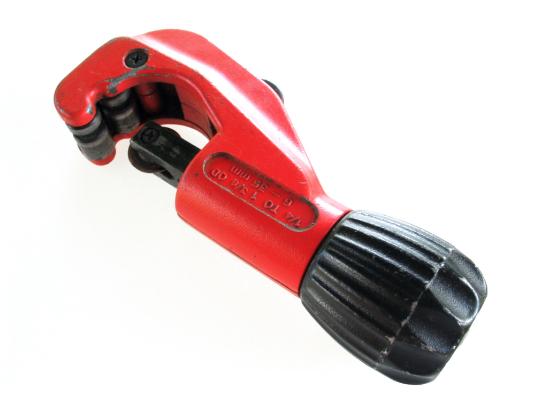

✔ Tube cutter (for copper and plastic pipes)
✔ Pipe wrenches (for threaded fittings)
.jpg?revision=1)

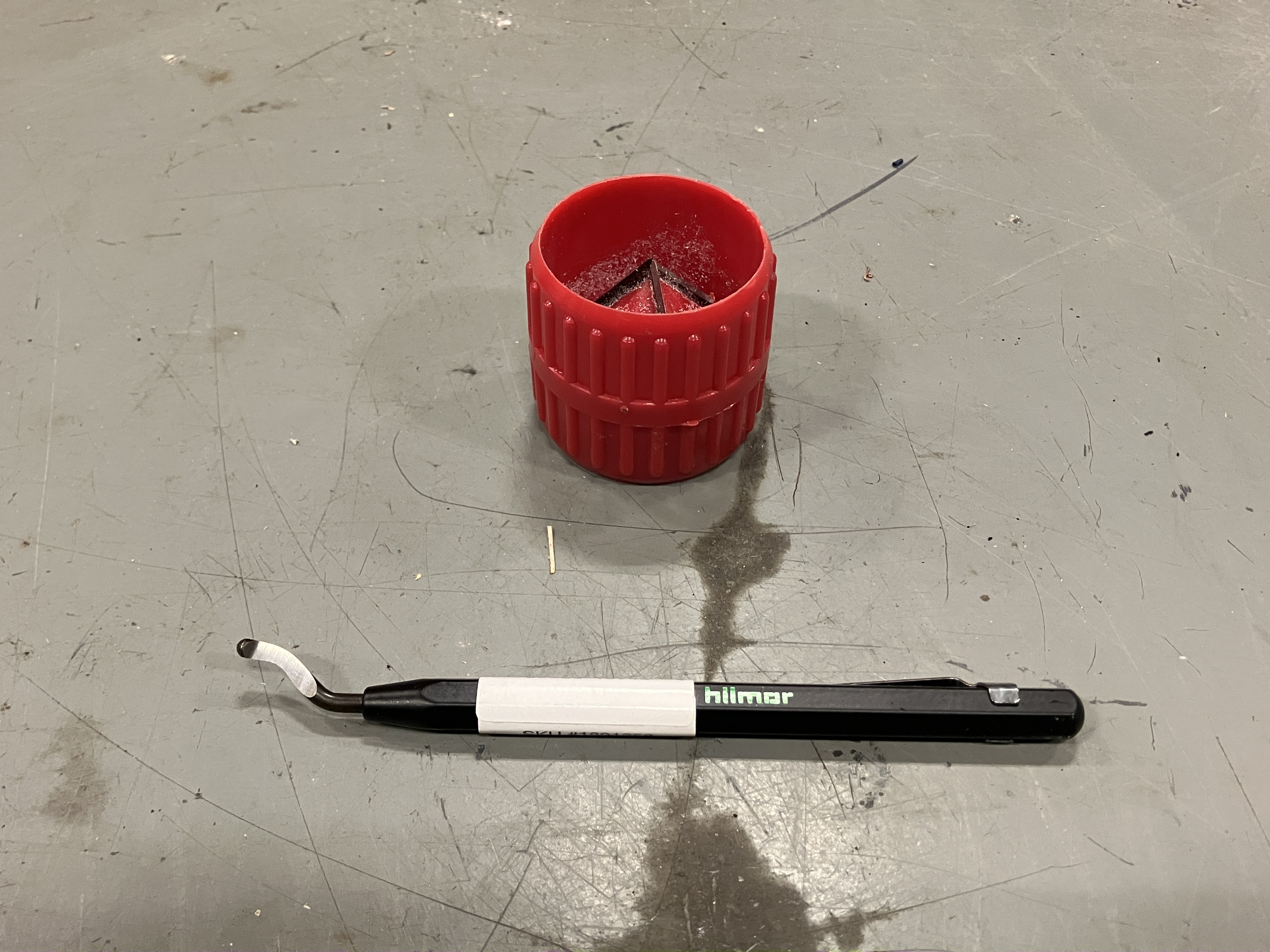

✔ Deburring tool (for smoothing pipe edges)

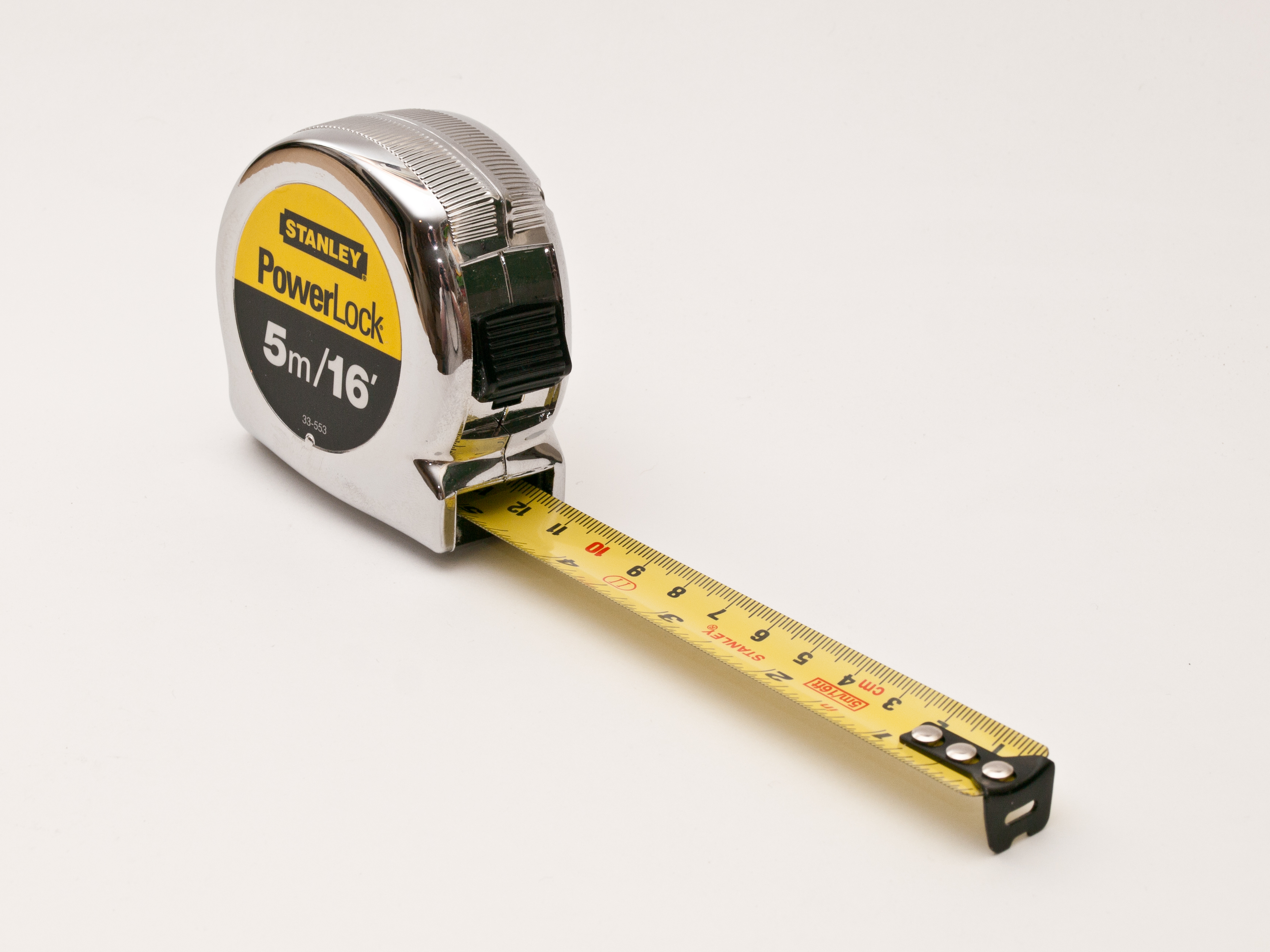

✔ Measuring tape (for accurate pipe cuts)
.jpg?revision=1&size=bestfit&width=383&height=287)
✔ Ratcheting PVC Cutter (for cutting plastic PVC pipe)
Cutting & Preparation Tools:
✔ Pipe cutters (for copper and PVC)

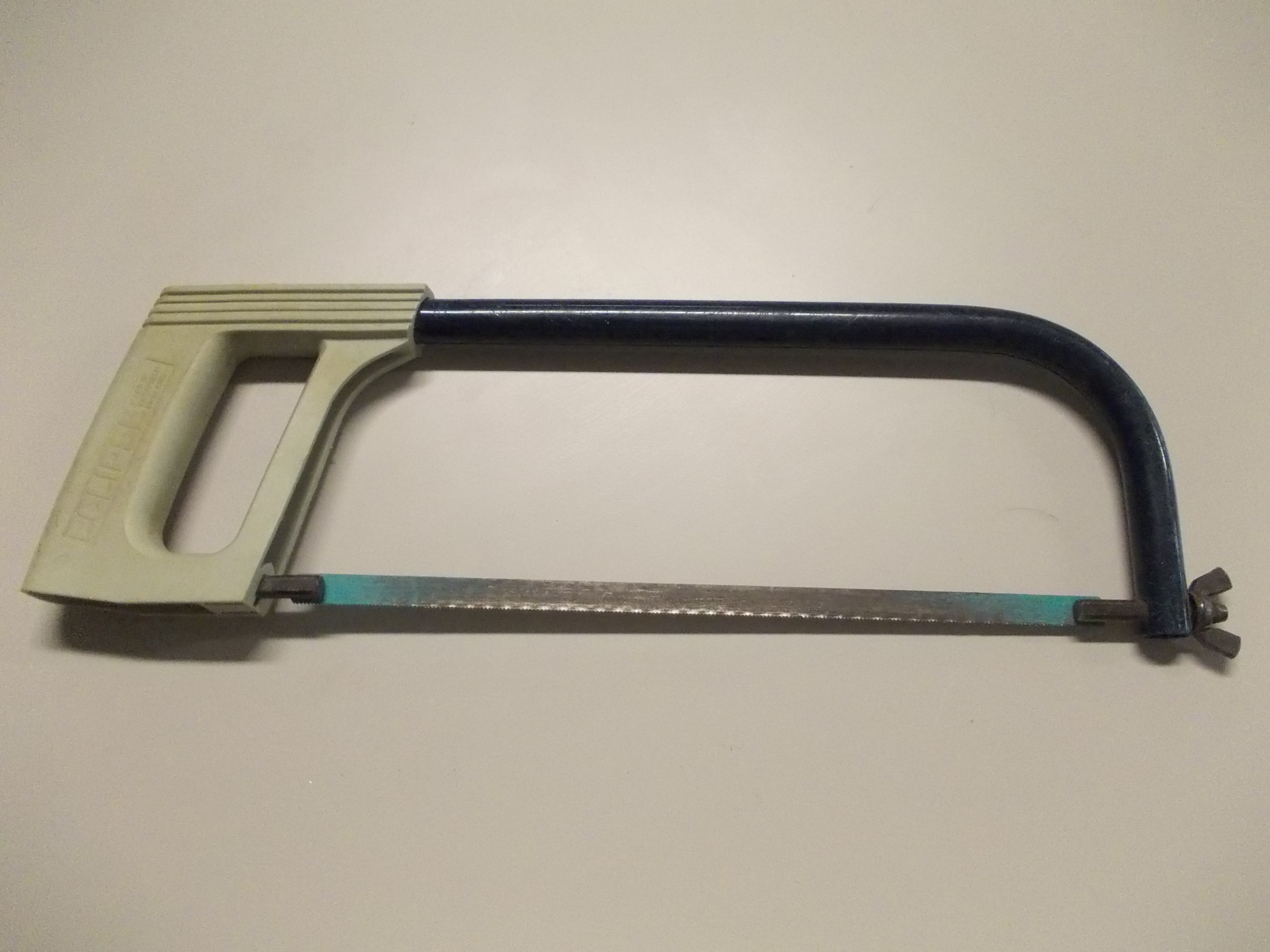

✔ Hacksaw (for cutting larger pipes)
✔ Reaming tool (to remove burrs and improve flow)
(same as the Deburring Tool ^)

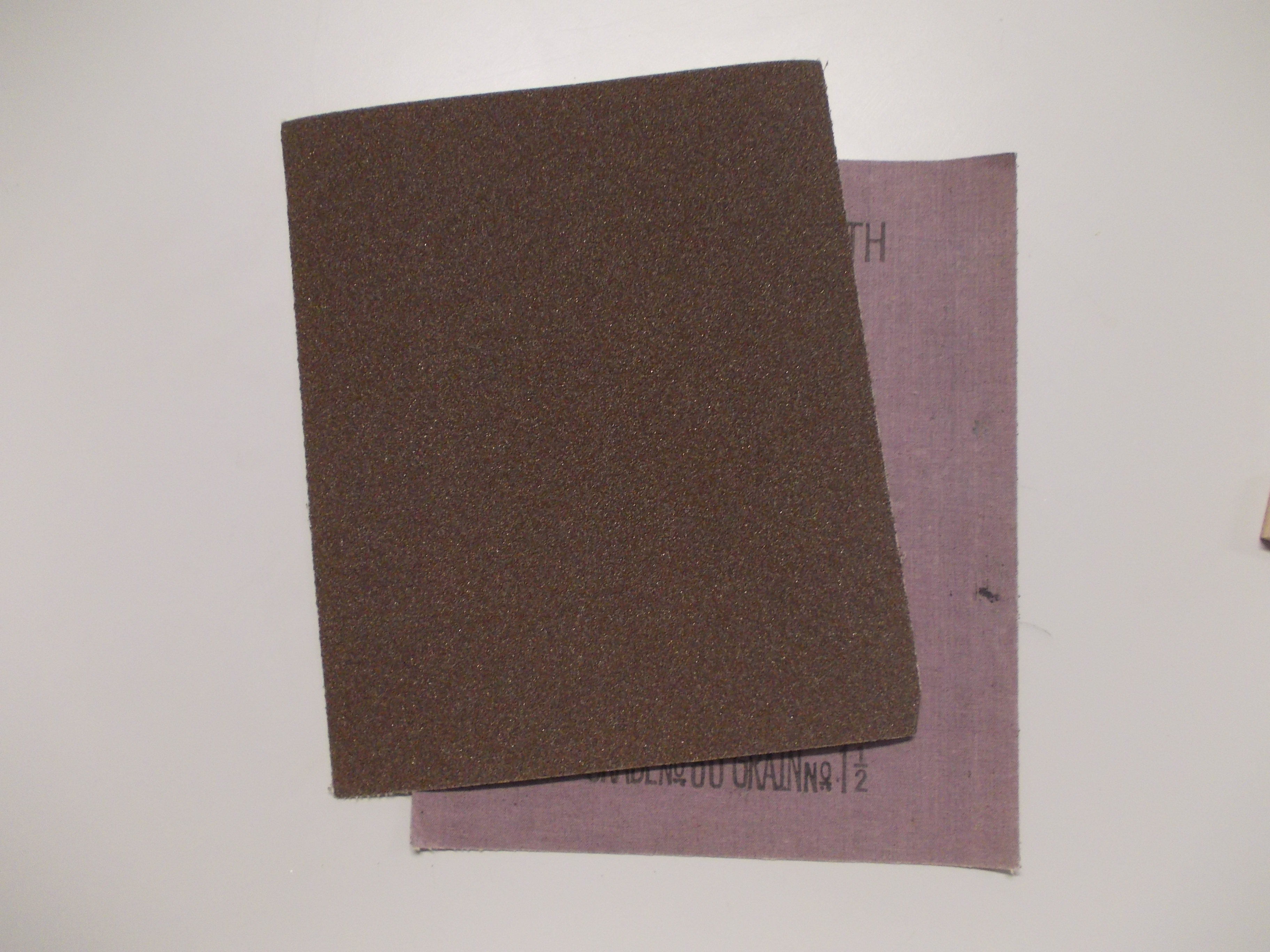

✔ Sandpaper/emery cloth (for prepping copper joints)

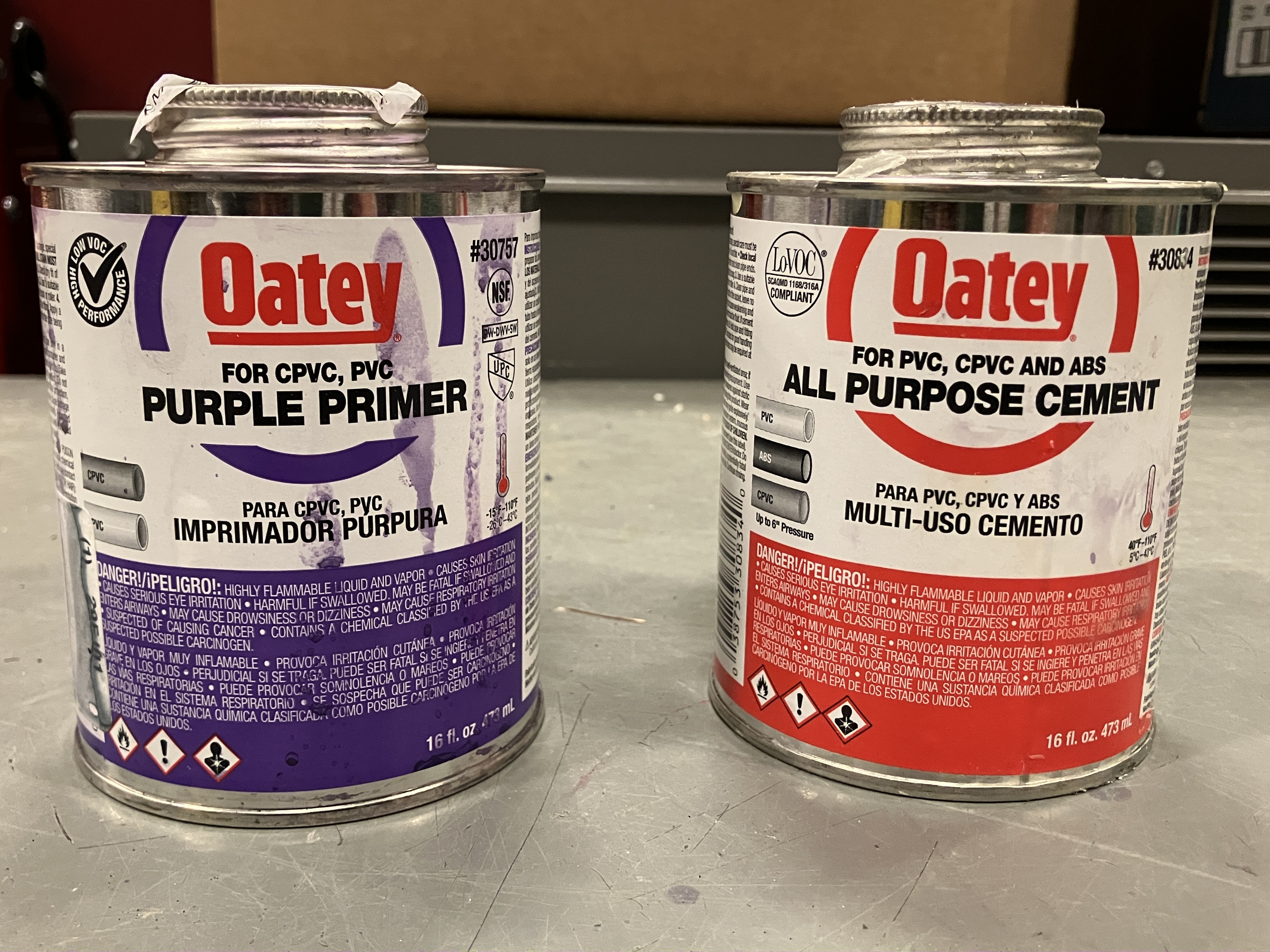

✔ Pipe primer and solvent cement (for plastic pipes)
Joining & Leak Testing Tools:

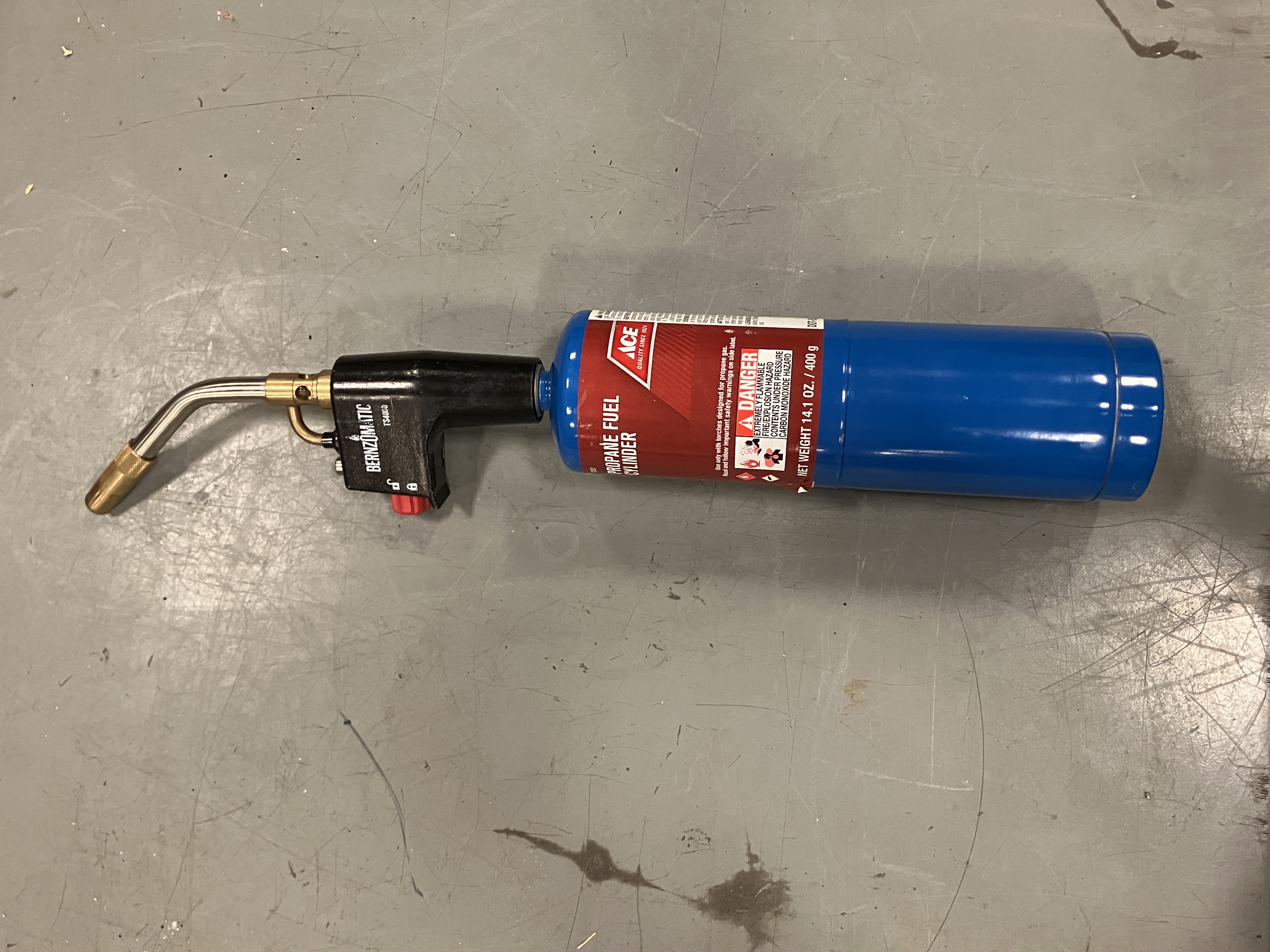

✔ Soldering torch (for copper pipe connections)

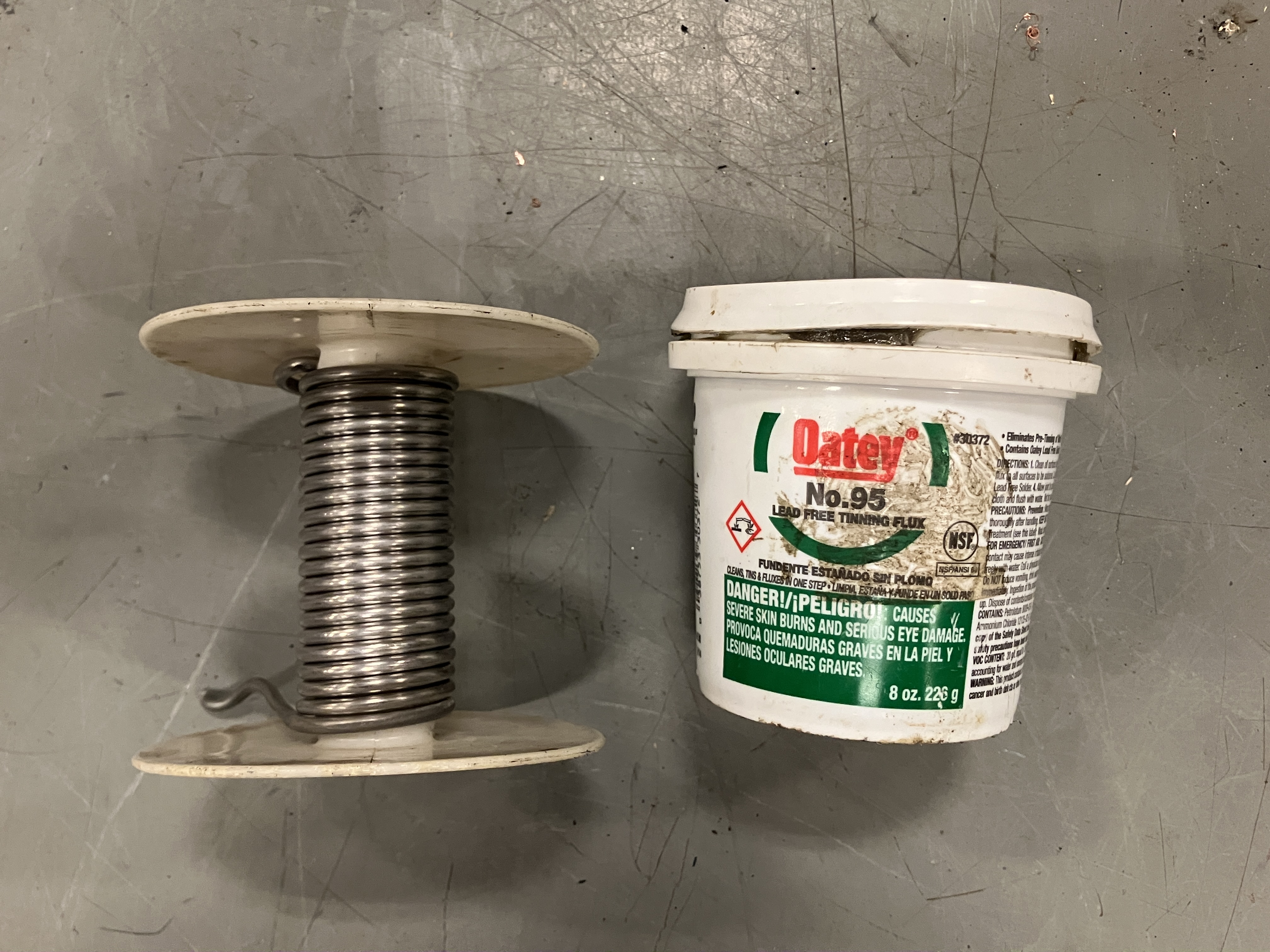

✔ Flux and solder (for sweat soldering)
✔ Compression and push-fit fittings (for quick installations)

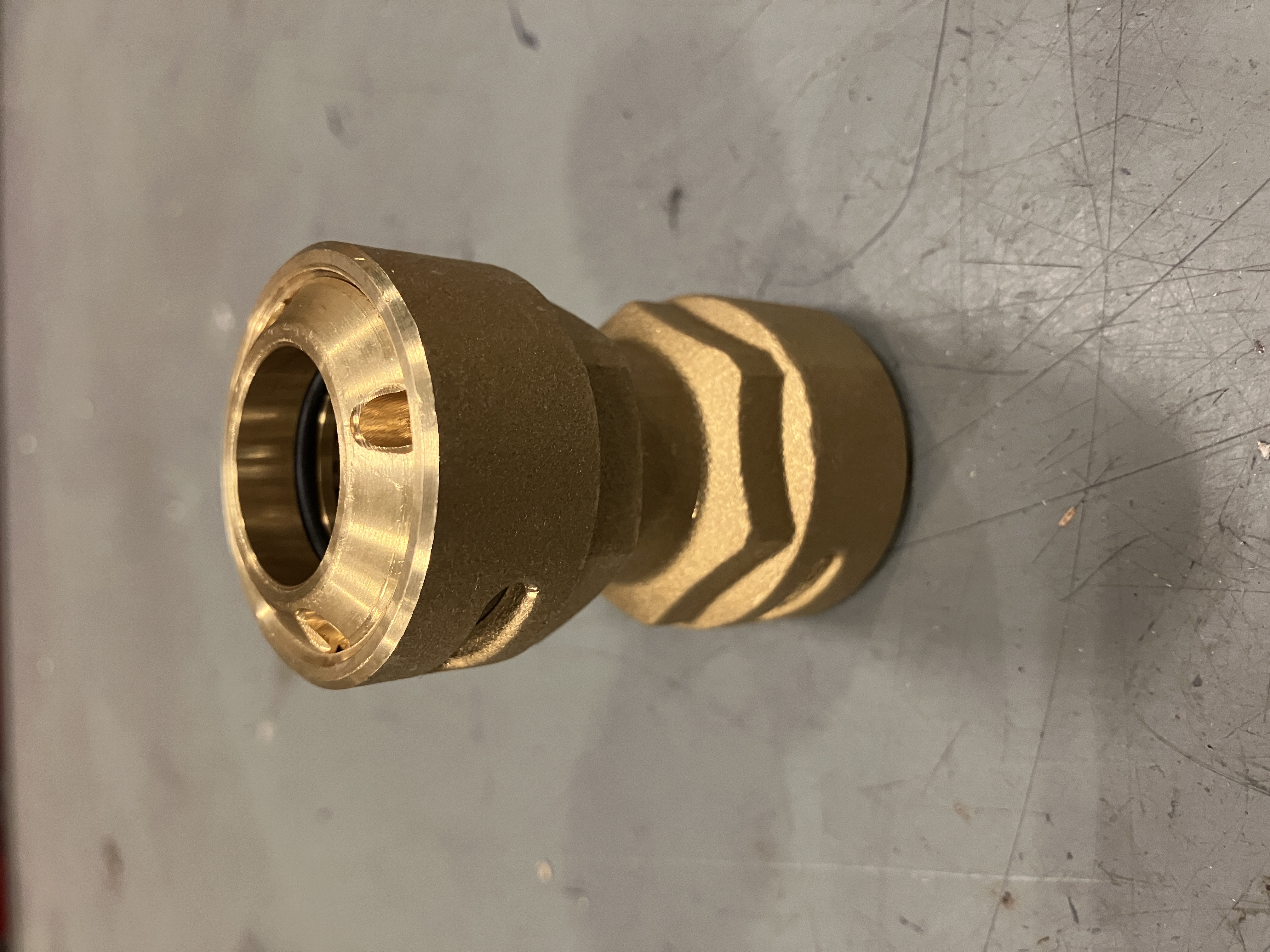

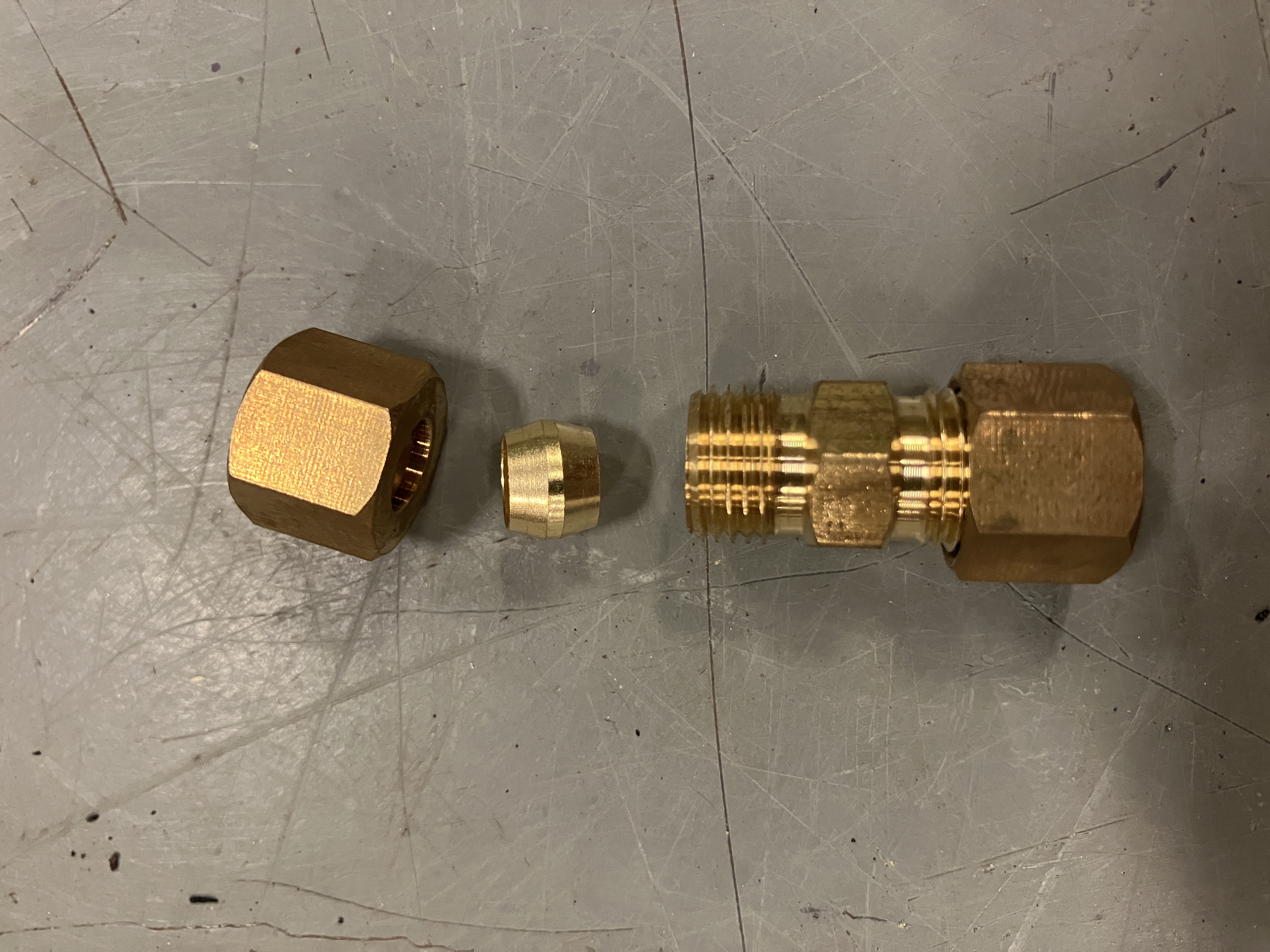

Compression Push-fit

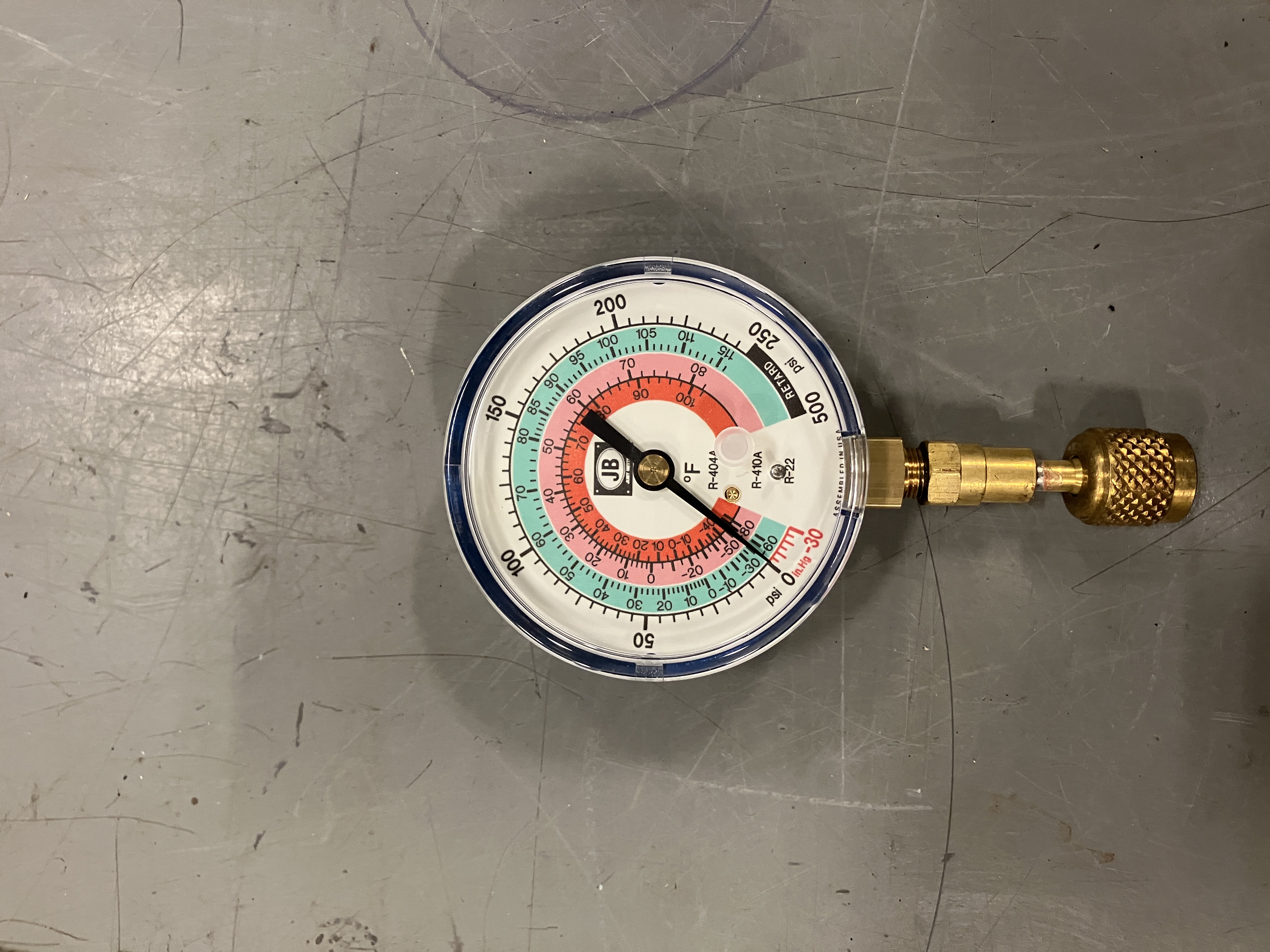

✔ Pressure gauge (for leak testing)

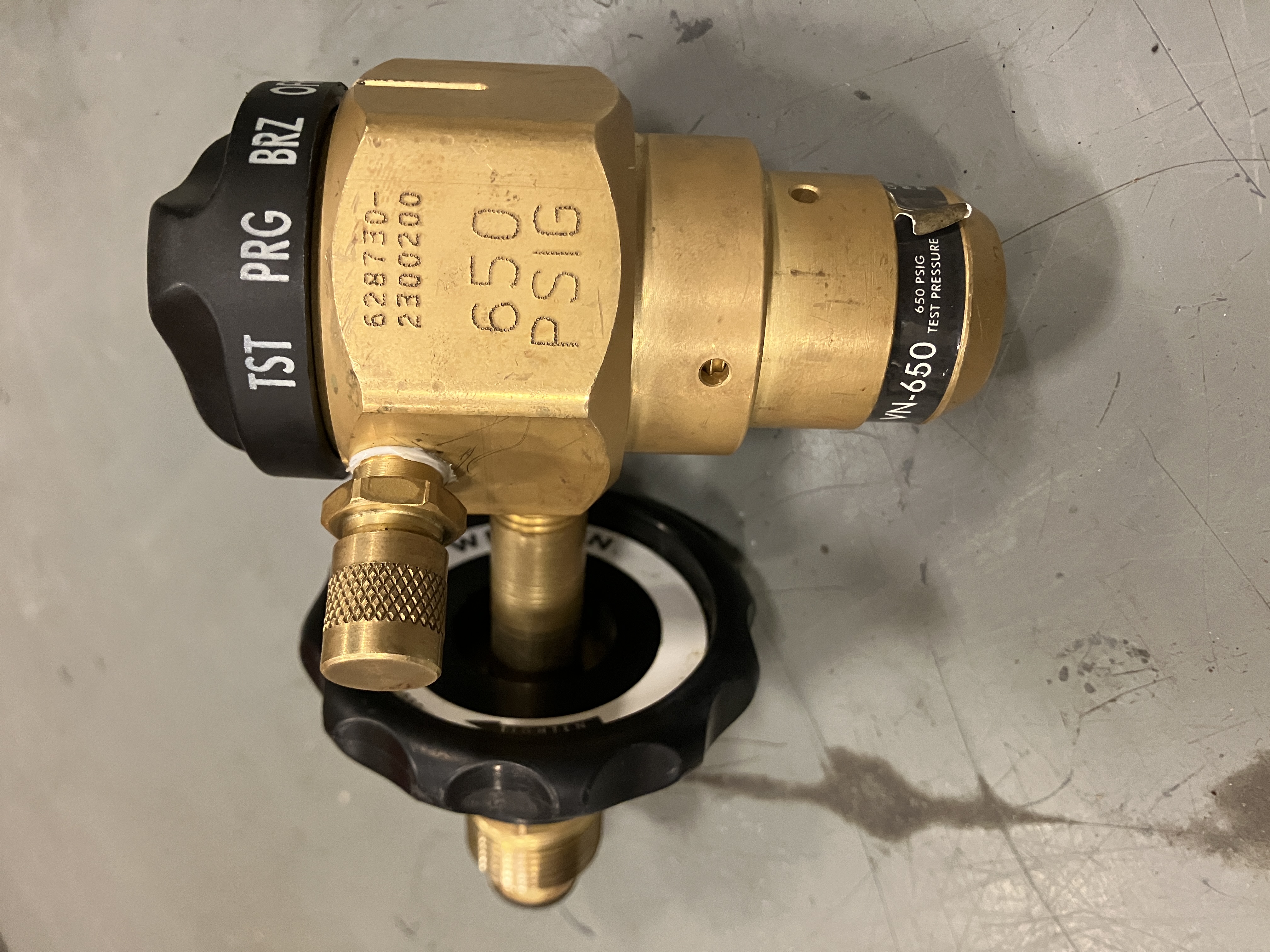

✔ Air or nitrogen pressure regulator (for system verification)
Support & Insulation Tools:

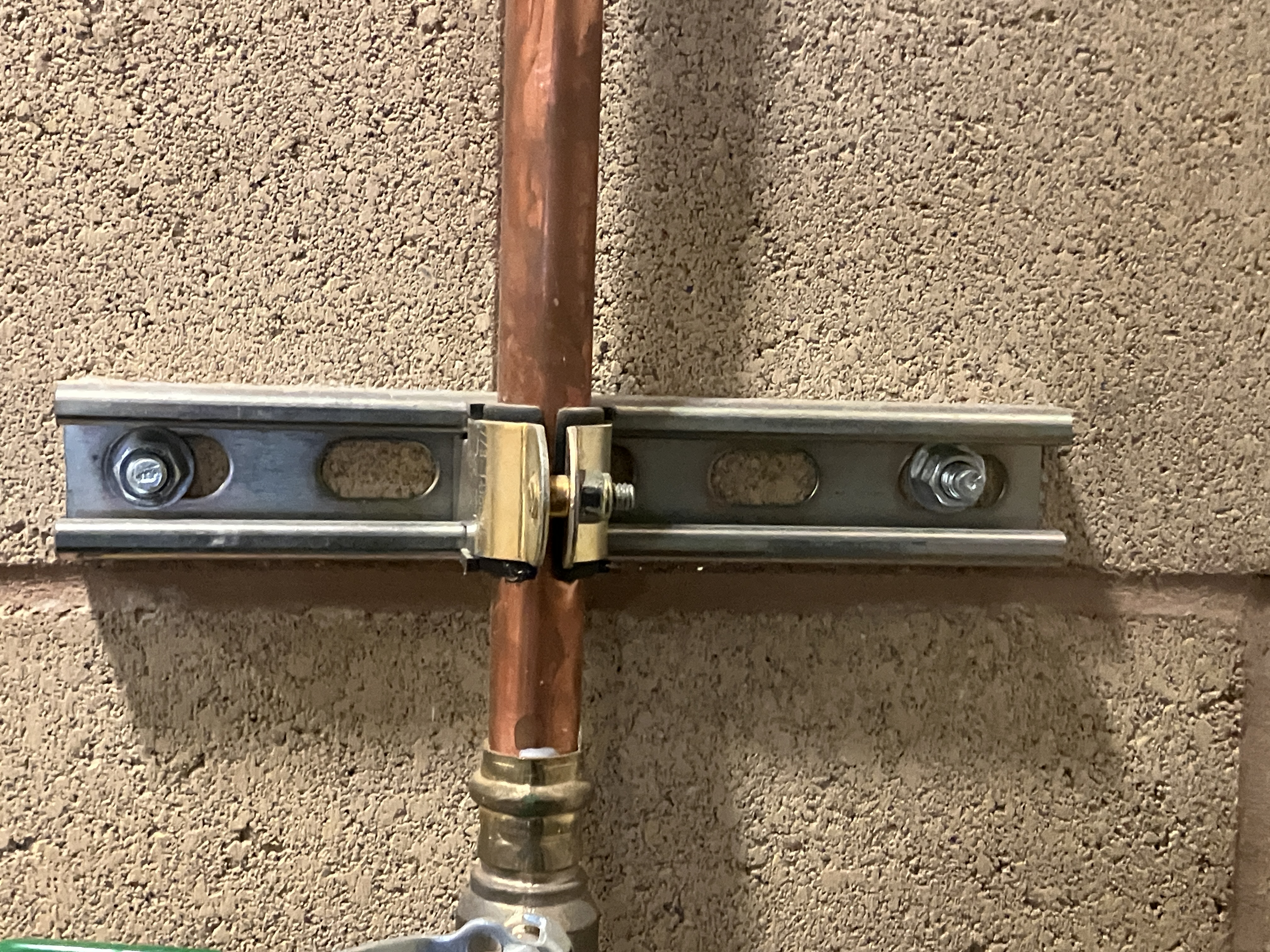

✔ Pipe clamps and hangers (for secure mounting)

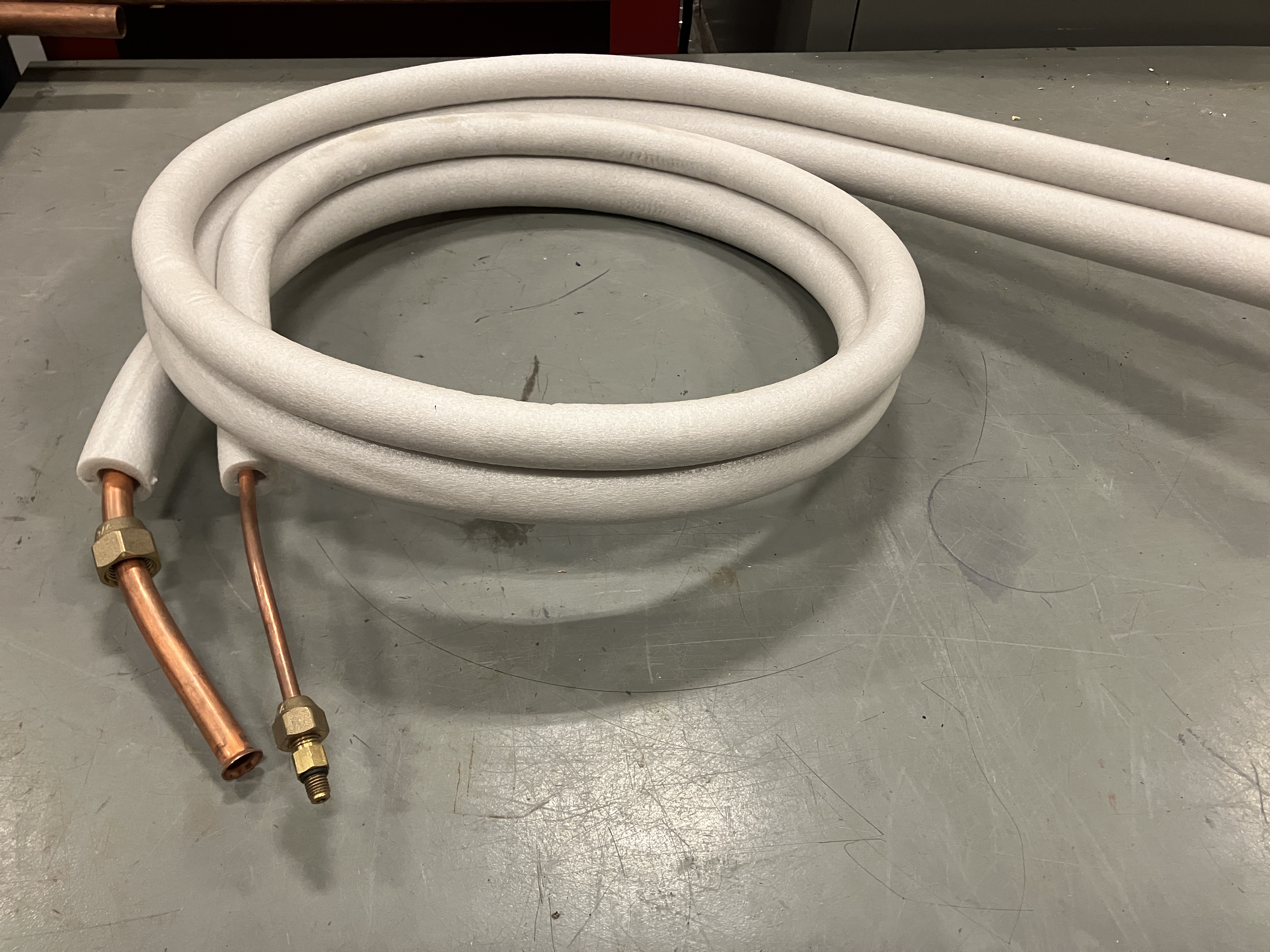

✔ Insulation sleeves (for reducing heat loss and condensation)

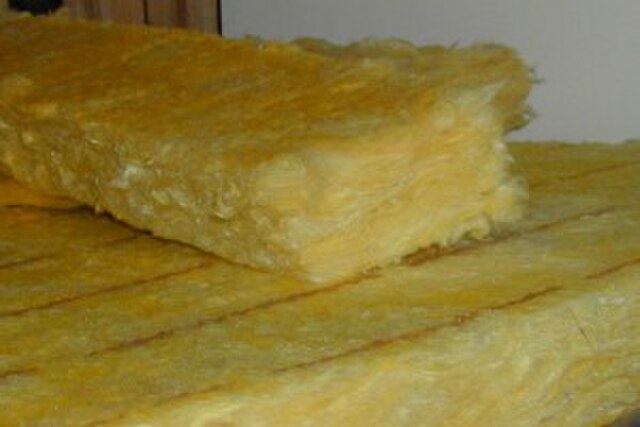

✔ Foam or fiberglass insulation (for energy efficiency)
✔ Zoom Lock
Pro Tips for Piping System Maintenance
✔ Use the correct pipe material for the application (copper for refrigerant lines, PVC for drainage).
✔ Measure and cut precisely to prevent rework and material waste.
✔ Clean and deburr pipe edges before making connections to ensure a secure fit.
✔ Apply flux properly when soldering copper pipes to prevent weak joints.
✔ Use leak detectors after making connections to identify potential issues.
✔ Secure piping with proper supports to avoid stress on joints and fittings.
✔ Avoid excessive heat when soldering near existing plastic components.
✔ Check for proper venting in drainage and refrigerant systems.
HVAC Piping System Maintenance Checklist
✔ Inspect pipes and fittings regularly for signs of leaks or corrosion.
✔ Test system pressure before finalizing installations.
✔ Ensure correct pipe slope for proper drainage.
✔ Check for secure connections on all fittings.
✔ Apply insulation on refrigerant and water pipes to improve efficiency.
✔ Verify pipe supports and hangers to prevent movement or sagging.
✔ Perform a leak test on new installations before putting the system into operation.
✔ Confirm local building codes for pipe installation and materials.
