6.5: Tools and Instruments for Electrical Work



Essential Tools:

1. Multimeter: Measures voltage, current, and resistance. It must be calibrated periodically to ensure accurate readings.
2. Wire Strippers: Removes insulation from wires. Inspect for dull blades or damage before use.
3. Clamp Meter: Measures current without disconnecting wires. Ensure the jaws are clean and free of debris for proper readings.

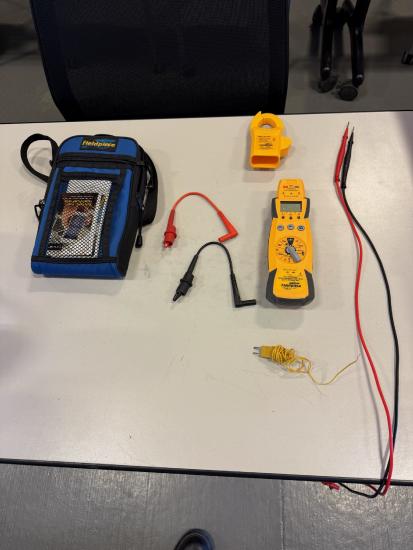

Image: Multimeter: Measures voltage, current, and resistance. It must be calibrated periodically to ensure accurate readings.



Tools & Tips

Tool Maintenance Tips:

• Calibration: Regularly calibrate multimeters and other measuring devices following the manufacturer’s instructions. Calibration ensures reliable readings and prevents errors in diagnostics.
• Inspection: Check all tools for visible damage, such as frayed wires or cracked insulation. Replace or repair tools as needed.
• Cleaning: Keep tools clean and dry to prevent rust and deterioration. Use a soft cloth to wipe down tools after use.
• Storage: Store tools in a clean, dry, and organized toolbox to prevent accidental damage and ensure quick access.

Analogy Example: Think of tool maintenance like caring for a car. Just as regular oil changes and inspections keep a car running smoothly, maintaining your tools ensures they’re ready and safe to use when needed.



Tools and Instruments for Electrical Work

     Electrical work in HVAC systems requires specialized tools to diagnose, measure, and troubleshoot electrical circuits safely and accurately. Using the right instruments ensures efficient system performance, prevents malfunctions, and enhances technician safety. This section provides a comprehensive guide to essential electrical tools, how to use them correctly, and best practices for maintenance and calibration.

---



Essential Tools for Electrical HVAC Work

     HVAC technicians rely on three primary electrical diagnostic tools: the multimeter, wire strippers, and clamp meter. Each tool has a specific function and is critical for troubleshooting and installation.



Multimeter: The Most Important Diagnostic Tool

A multimeter is the most essential electrical testing instrument for HVAC work. It measures:

✔ Voltage (V): The electrical force or pressure in a circuit. Used to check control voltage (24V AC), line voltage (120V/240V AC), and battery voltage (DC applications).
✔ Current (A): The flow of electricity in a circuit. Used to verify proper amperage in motors, transformers, and compressors.
✔ Resistance (Ω): The opposition to current flow. Used to check continuity in wires, relays, fuses, and motor windings.



How to Use a Multimeter for HVAC Work

1. Set the Multimeter to the Correct Function
   • Voltage: Set to AC voltage (V~) or DC voltage (V⎓), depending on the circuit.
   • Current: Set to Amps (A) if applicable.
   • Resistance: Set to Ohms (Ω) to check continuity.
2. Connect the Test Leads
   • For voltage testing: Place one probe on the hot wire and the other on neutral/ground.
   • For resistance testing: Disconnect power and place probes across the component to check for continuity.
3. Interpret the Reading
   • 24V AC on a thermostat circuit means the system is functioning normally.
   • 0V on a compressor power supply indicates a potential issue in the relay or breaker.
   • An infinite resistance reading (OL) on a motor winding suggests an open circuit.



Best Practices for Using a Multimeter

✔ Always test on a known voltage source before using the multimeter in a live HVAC circuit.
✔ Use a CAT III or CAT IV rated multimeter for HVAC high-voltage environments.
✔ Store the meter in a dry, dust-free case to prevent damage.

🔹 Analogy: A multimeter is like a detective’s toolkit—it gathers clues (voltage, current, resistance) to solve electrical problems in an HVAC system.

---



Wire Strippers: Properly Preparing Electrical Wires

Wire strippers are used to remove insulation from wires without damaging the metal conductor inside. This ensures secure, clean electrical connections.



How to Use Wire Strippers Properly

1. Select the Correct Gauge Slot – Wire strippers are marked with different gauge sizes.
2. Insert the Wire and Squeeze – Gently squeeze the handles to cut into the insulation without nicking the wire.
3. Pull the Insulation Off – Slide the insulation off the wire to expose the conductor.



Best Practices for Using Wire Strippers

✔ Always match the stripper slot to the correct wire gauge to avoid cutting wire strands.
✔ Inspect blades for dullness or damage before use.
✔ Avoid excessive force—let the tool do the work to prevent weakening the wire.

🔹 Analogy: Wire strippers are like peeling a banana—you want to remove just the outer layer without damaging the inside.

---



Clamp Meter: Measuring Current Without Breaking the Circuit

     A clamp meter measures current (amperage) in a live circuit without disconnecting any wires. This makes it an essential tool for diagnosing motor performance, compressor load, and electrical consumption.



How to Use a Clamp Meter

1. Turn the Meter On and Set it to Amps (A) Mode – Select AC Amps (A~) for HVAC applications.
2. Open the Clamp Jaws and Place Them Around a Single Conductor – Do not clamp around the entire cable bundle.
3. Read the Display – The meter will show the current flowing through the conductor in amperes (A).



Best Practices for Using a Clamp Meter

✔ Ensure the jaws are clean and free of debris for accurate readings.
✔ Only measure one conductor at a time—clamping around multiple wires will give incorrect results.
✔ Use a meter rated for high-amperage HVAC components (minimum 400A range).

🔹 Analogy: A clamp meter is like a speed radar for electricity—it measures how fast current is flowing without interrupting traffic.

---



Tool Maintenance for Accuracy and Safety

Regular maintenance, calibration, and proper storage ensure HVAC electrical tools remain accurate, reliable, and safe to use.



3.1 Calibration: Ensuring Accurate Measurements

✔ Multimeters and clamp meters must be calibrated periodically to maintain accuracy.
✔ Use a known voltage source (e.g., a fresh 9V battery) to check multimeter accuracy.
✔ If readings are off, follow the manufacturer’s calibration instructions.

---



Inspection: Checking Tools for Damage

✔ Look for cracked insulation, frayed wires, or worn-out test leads.
✔ Test leads must have intact insulation to prevent short circuits.
✔ Replace any tools that show signs of wear or inaccuracy.

---



Cleaning: Preventing Rust and Corrosion

✔ Use a soft cloth to wipe tools down after use.
✔ Store tools in a dry area to prevent rusting.
✔ Avoid using water or solvents that can damage electrical components.

---



Storage: Organizing Your Toolbox for Efficiency

✔ Store tools in a well-organized, dry toolbox to prevent damage.
✔ Keep multimeters in protective cases to avoid dust accumulation.
✔ Maintain a checklist of tools before starting a job.

🔹 Analogy: Tool maintenance is like caring for a car—just as regular oil changes and inspections keep a vehicle running smoothly, maintaining tools ensures they’re always ready and safe to use.

---



Exercise

Comprehensive Practice Exercises for HVAC Electrical Work

     To develop expert-level proficiency in HVAC electrical diagnostics, technicians must regularly practice using tools, measuring electrical properties, and maintaining equipment. The following hands-on exercises will help reinforce the fundamentals of electrical troubleshooting, precision measurement, and tool maintenance. These exercises build upon basic skills and advance into real-world scenarios that HVAC professionals will encounter in the field.

---



1. Multimeter Exercises: Mastering Voltage, Current, and Resistance Measurements

1.1 Calibrate a Multimeter
    ✅ Use a 9V battery as a reference voltage and verify that the multimeter reads accurately.
    ✅ If the reading is off, adjust the calibration or refer to the manufacturer’s calibration guide.



1.2 Measure Voltage in an HVAC Circuit
    ✅ Measure 24V AC at a thermostat circuit and confirm it is within range.
    ✅ Measure 120V or 240V AC at an electrical panel or compressor power supply.
    ✅ Compare expected vs. actual readings and diagnose potential voltage drops.



1.3 Test Resistance (Ohms) in HVAC Components
    ✅ Set the multimeter to Ω (Ohms) and measure:

• A relay coil’s resistance to determine if it’s operational.
• The resistance of a motor winding to check for an open or shorted circuit.
• HVAC fuses to confirm continuity (good fuse should read 0Ω).



1.4 Measure Current in a Circuit (Amps)
    ✅ Use a clamp meter (or a multimeter with an amp function) to measure the amp draw of a blower motor.
    ✅ Compare the actual reading to the manufacturer’s rating on the motor label.
    ✅ Identify potential overload conditions by checking breaker ratings against measured current.

---



2. Wire Stripper Exercises: Ensuring Clean, Secure Wire Connections

2.1 Strip Insulation from Wires
    ✅ Select different wire gauges (e.g., 18 AWG for thermostats, 12 AWG for power lines).
    ✅ Use wire strippers to cleanly remove insulation without damaging copper strands.
    ✅ Check stripped wires under magnification to ensure no nicks or cuts.



2.2 Create Proper Wire Connections
    ✅ Strip two wires and twist them together securely for a wire nut connection.
    ✅ Crimp a spade terminal onto a stripped wire and test for a strong connection.
    ✅ Practice securing low-voltage thermostat wires without breaking the delicate strands.



2.3 Diagnose Poor Connections
    ✅ Examine improperly stripped wires to determine causes of weak or failed connections.
    ✅ Check resistance in wire connections using a multimeter—loose or corroded connections should show high resistance.

---



3. Clamp Meter Exercises: Measuring Current Safely in Live Circuits

3.1 Measure Compressor Amp Draw
    ✅ Use a clamp meter to measure the amp draw of a running compressor.
    ✅ Compare the reading to the LRA (Locked Rotor Amps) and RLA (Running Load Amps) ratings on the compressor label.



3.2 Check Inductive Load on a Blower Motor
    ✅ Place the clamp meter around a single conductor and measure amp draw.
    ✅ Record the reading and compare it to the motor’s full-load amperage (FLA).



3.3 Detect Overloaded Circuits
    ✅ Measure amp draw at an electrical panel breaker feeding an HVAC system.
    ✅ Identify if the current exceeds breaker capacity, indicating a potential overload.

---



4. Tool Maintenance and Organization Exercises

4.1 Inspect and Clean Tools for Longevity
    ✅ Examine a multimeter’s test leads for cracks, fraying, or exposed wiring.
    ✅ Inspect wire stripper blades for dullness and lubricate if needed.
    ✅ Clean clamp meter jaws to ensure accurate current measurement.



4.2 Perform a Tool Inspection Checklist
    ✅ Verify that all tools are in working order before beginning an HVAC project.
    ✅ Check a toolbox for missing tools and organize it for efficient workflow.
    ✅ Separate low-voltage and high-voltage tools to avoid cross-contamination of measuring instruments.

---



5. Real-World Troubleshooting Exercises

5.1 Diagnose a No-Voltage Thermostat Issue
    ✅ Check thermostat power at the R and C terminals (should be 24V AC).
    ✅ If no voltage is present, trace back to the transformer or fuse for failure.



5.2 Identify a Failed Start Capacitor in an AC System
    ✅ Use a multimeter in capacitance mode (MFD) to measure the start capacitor’s rating.
    ✅ If the capacitor is significantly below its rated value, replace it and verify system operation.



5.3 Test for Ground Faults in a Compressor or Fan Motor
    ✅ Use the resistance setting (Ω) on a multimeter to check for continuity between a motor terminal and the ground.
    ✅ If resistance is low or zero, the motor has a ground fault and needs replacement.



5.4 Perform a Live Voltage Drop Test
    ✅ Measure voltage at an HVAC contactor with the system running.
    ✅ Compare the reading to the expected voltage—a significant drop may indicate loose wiring or a failing component.

---



6. Advanced Exercises: System-Level Electrical Diagnostics

6.1 Perform a Full HVAC System Electrical Inspection
    ✅ Measure voltage at the breaker panel supplying the HVAC unit.
    ✅ Check for proper 24V AC control voltage at the thermostat and relays.
    ✅ Measure amp draw on the compressor, blower motor, and outdoor fan motor.
    ✅ Inspect for burned wiring, loose connections, and corroded terminals.



6.2 Test and Replace a Contactor in an HVAC System
    ✅ Measure voltage across the contactor coil terminals to confirm activation.
    ✅ Test for continuity across the contact points with power off—no continuity means a failed contactor.
    ✅ Replace the contactor, then verify the system operates correctly.



6.3 Simulate and Diagnose a Failed Circuit
    ✅ Set up a test circuit with intentional wiring faults (e.g., a broken wire, short circuit, or failed relay).
    ✅ Use a multimeter and clamp meter to diagnose the issue.
    ✅ Correct the problem and verify proper circuit operation.

---



Why Hands-On Practice is Essential

🔹 Regular practice with tools and instruments ensures technicians become confident in diagnosing and repairing HVAC electrical issues.
🔹 Mastering multimeters, clamp meters, and wire strippers is essential for troubleshooting, maintenance, and safe operation.
🔹 Tool maintenance and calibration guarantee accuracy, safety, and efficiency on the job.
🔹 Real-world troubleshooting exercises prepare technicians for complex electrical failures in live HVAC systems.

✅ Next Steps: Complete these exercises regularly to sharpen your skills and become an expert HVAC technician capable of handling any electrical issue with confidence!
