Humidity is the amount of water vapor in the air. Too much or too little humidity can make a room uncomfortable.
Relative Humidity (RH):
This is the percentage of water vapor in the air compared to what the air can hold at that temperature.
Tools to Measure Humidity:
- Hygrometer: Measures humidity directly.
- Psychrometric chart: Helps find relationships between air temperature, humidity, and other factors.
Practice:
- Use a psychrometric chart to find RH when the air temperature is 75°F and the dew point is 60°F.
- Measure humidity in a room using a hygrometer.
HVAC Humidity and Psychrometric Basics
Humidity plays a vital role in indoor air quality, occupant comfort, and HVAC system efficiency. As an HVAC professional, understanding how moisture interacts with air and how to measure and control it is essential for maintaining optimal environmental conditions. This section covers the fundamentals of humidity, methods for measuring moisture content, and how to use a psychrometric chart to analyze air properties.
What Is Humidity?
Humidity refers to the amount of water vapor present in the air. The ability of air to hold moisture depends on temperature—warmer air can hold more moisture, while cooler air holds less. The proper balance of humidity is crucial in HVAC systems, as excess humidity can lead to mold growth and discomfort, while low humidity can cause dryness and static electricity buildup.
How Humidity Affects HVAC Performance
- High Humidity Issues:
- Causes mold and mildew growth.
- Increases latent cooling load, making air conditioners work harder.
- Leads to sticky and uncomfortable indoor conditions.
- Low Humidity Issues:
- Causes dry skin, throat irritation, and respiratory discomfort.
- Increases static electricity and damage to electronics.
- Causes furniture and wood flooring to shrink and crack.
💡 Ideal Indoor Humidity Levels:
- 40-60% RH (Relative Humidity) is generally considered optimal for comfort and health.
- Below 30% RH can cause discomfort and material damage.
- Above 60% RH can lead to excessive moisture problems.
Relative Humidity (RH): A Key Concept in HVAC
Relative Humidity (RH) is the percentage of moisture in the air compared to the maximum amount the air can hold at a given temperature.

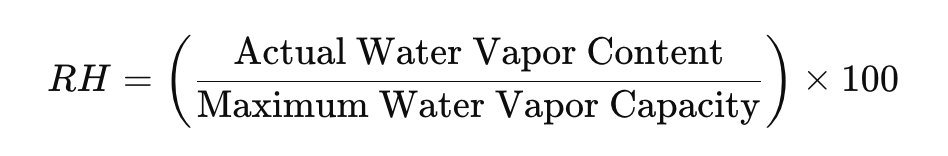

📌 Formula for Relative Humidity:
RH=(Actual Water Vapor ContentMaximum Water Vapor Capacity)×100RH = \left(\frac{\text{Actual Water Vapor Content}}{\text{Maximum Water Vapor Capacity}}\right) \times 100RH=(Maximum Water Vapor CapacityActual Water Vapor Content)×100
✔ Example: If the air at 75°F can hold 20 grams of water per cubic meter, but currently contains 10 grams, the RH is:
RH=(1020)×100=50%RH = \left(\frac{10}{20}\right) \times 100 = 50\%RH=(2010)×100=50%
💡 Why It Matters:
- At 100% RH, the air is fully saturated, and condensation (dew) will begin to form.
- At 50% RH, the air is holding half the moisture it can carry at that temperature.
- At 0% RH, the air is completely dry, which rarely happens in natural environments.
How to Measure Humidity in HVAC Systems
HVAC professionals use several tools to measure and analyze humidity levels in a building.
1. Hygrometer
- Function: Directly measures relative humidity (RH).
- Types:
- Analog Hygrometers: Use materials that expand and contract with humidity.
- Digital Hygrometers: Provide more accurate RH readings with electronic sensors.
- Psychrometric Hygrometers: Use wet and dry bulb temperatures for measurement.
📌 How to Use a Hygrometer:
- Place the device in the area being measured.
- Allow time for accurate readings (~5-10 minutes).
- Read the RH display.
- Compare to recommended humidity levels (40-60% RH).
2. Psychrometric Chart: The HVAC Technician’s Best Tool
A psychrometric chart is a graphical tool used to analyze air properties based on temperature and humidity. It helps determine:
✔ Dew point temperature
✔ Relative humidity
✔ Enthalpy (heat content)
✔ Specific volume (air density)
✔ Wet-bulb and dry-bulb temperatures
📌 Key Terms in a Psychrometric Chart:
| Term | Definition |
|---|---|
| Dry-Bulb Temperature (DBT) | The air temperature measured by a standard thermometer. |
| Wet-Bulb Temperature (WBT) | The temperature that accounts for evaporative cooling effects. |
| Dew Point Temperature | The temperature at which moisture begins to condense out of the air. |
| Relative Humidity (RH) | The ratio of actual water vapor in the air to its maximum capacity at that temperature. |
| Enthalpy (h) | The total heat energy in the air, measured in BTU/lb of dry air. |
📌 How to Use a Psychrometric Chart:
- Locate Dry-Bulb Temperature (horizontal axis).
- Find Dew Point or Wet-Bulb Temperature (various curves).
- Trace to the RH Curve (lines curving upward).
- Read the intersection value to determine RH.
🔧 Example Problem: Finding RH at 75°F Dry-Bulb and 60°F Dew Point
- Find 75°F on the horizontal axis (Dry-Bulb).
- Locate 60°F Dew Point on the Dew Point scale.
- Follow the curves to find the RH (~50%).
Practical HVAC Applications of Humidity Control
- Dehumidification in Cooling Systems
- Air conditioning removes moisture by cooling the air below the dew point, allowing water vapor to condense and drain away.
- A properly functioning AC unit should reduce RH to 40-50% indoors.
- Humidification in Heating Systems
- During winter, low humidity can cause discomfort.
- Humidifiers add moisture to the air by introducing water vapor to maintain comfort.
- Preventing Condensation Issues
- Condensation occurs when surfaces are cooler than the dew point temperature.
- Proper insulation and airflow management prevent moisture buildup in HVAC ducts and equipment.
- Using Humidity to Improve Energy Efficiency
- Lower RH reduces the perceived temperature, allowing for higher AC setpoints (saving energy).
- Higher RH in winter reduces heating costs by making air feel warmer.
✔ Exercise 1: Use a Psychrometric Chart to Find RH
- Find RH when air is 75°F and the dew point is 60°F.
✔ Exercise 2: Measure Room Humidity with a Hygrometer
- Use a digital or analog hygrometer to measure RH in a room and determine if it’s within the 40-60% comfort range.
✔ Exercise 3: Convert Wet-Bulb and Dry-Bulb Readings
- Use a psychrometric chart to determine enthalpy and air volume based on temperature readings.
Summary
Humidity control is a key aspect of HVAC performance, affecting comfort, energy efficiency, and system operation. By mastering the use of hygrometers, psychrometric charts, and humidity control methods, technicians can optimize HVAC systems for better indoor air quality. Understanding humidity’s relationship with temperature and air properties ensures HVAC systems operate at peak efficiency while maintaining ideal indoor comfort conditions.
