                                                    🔧 From the HVAC Expert: Tips and Tricks🔧

                                                     Essential Tools for HVAC Trade Mathematics

    Measurement & Calculation Tools:

    ✔ Digital calipers (for precise component measurements)

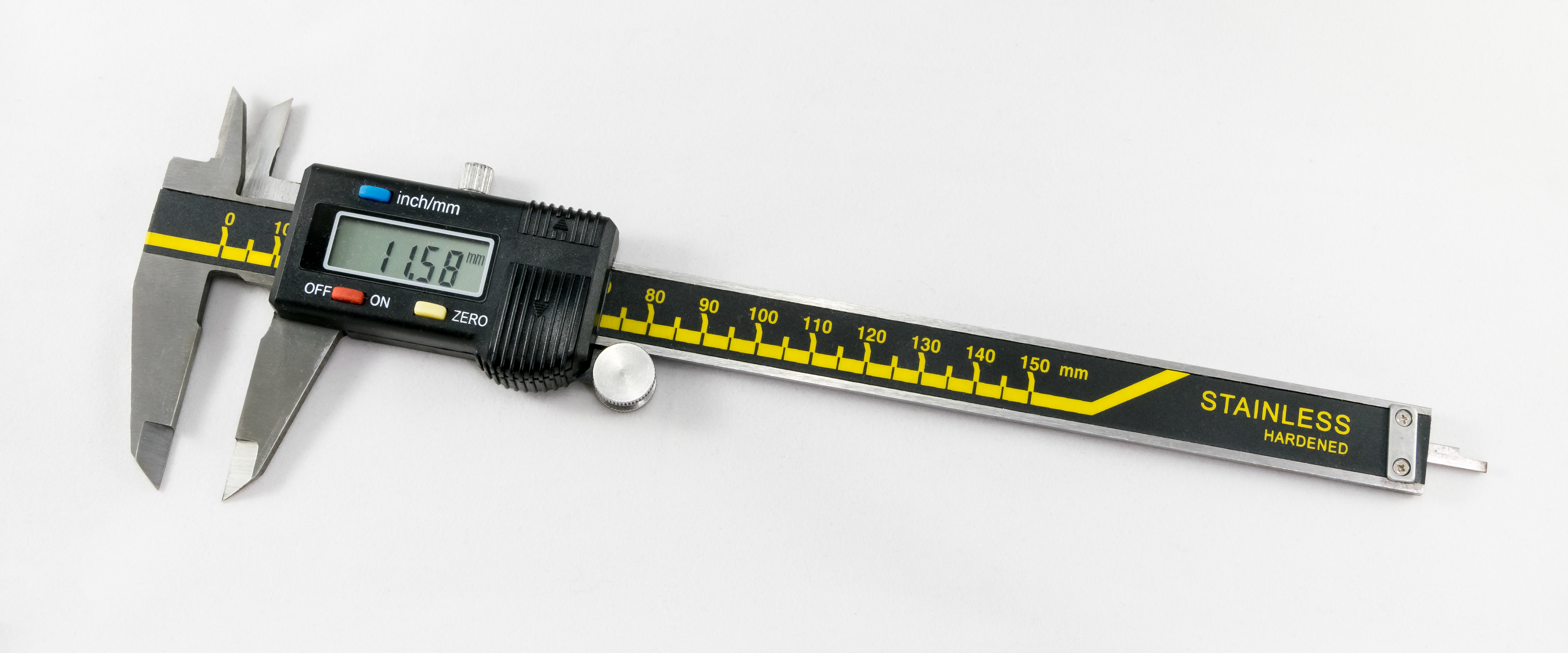

    Digital calipers


    ✔ Tape measure (for standard HVAC installations)

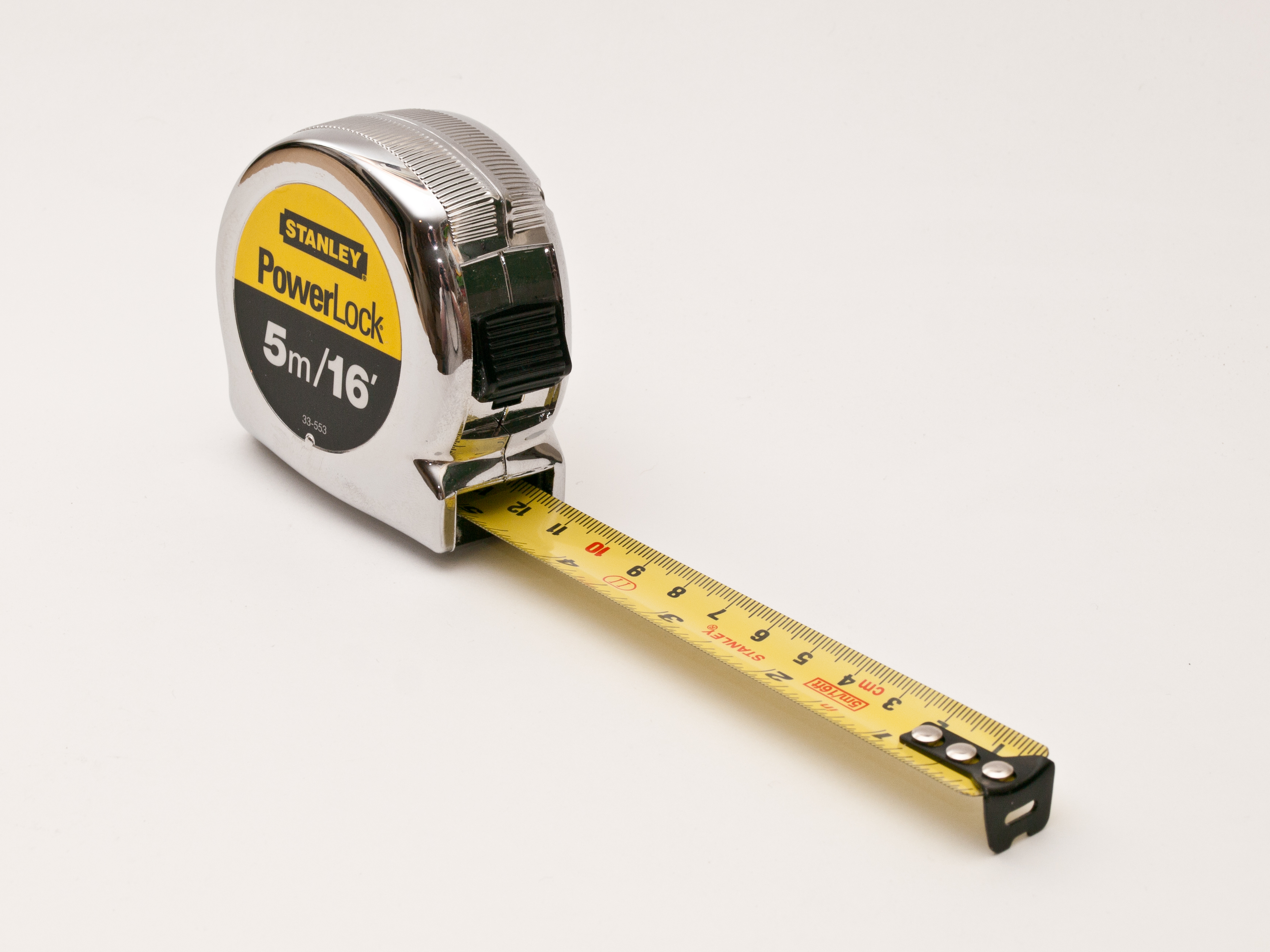

    Tape Measure


    ✔ Ruler and straightedge (for drawing layout diagrams)

    Ruler and Straightedge


    ✔ Infrared thermometer (for temperature readings)

    Infrared Thermometer


    ✔ Digital pressure gauge (for vacuum and pressure measurements)

                                     Negative Pressure                                                                           High Pressure

    Digital pressure gauge (Negative pressure)  Digital pressure gauge (High Pressure)


    ✔ Manometer (for airflow and static pressure testing)

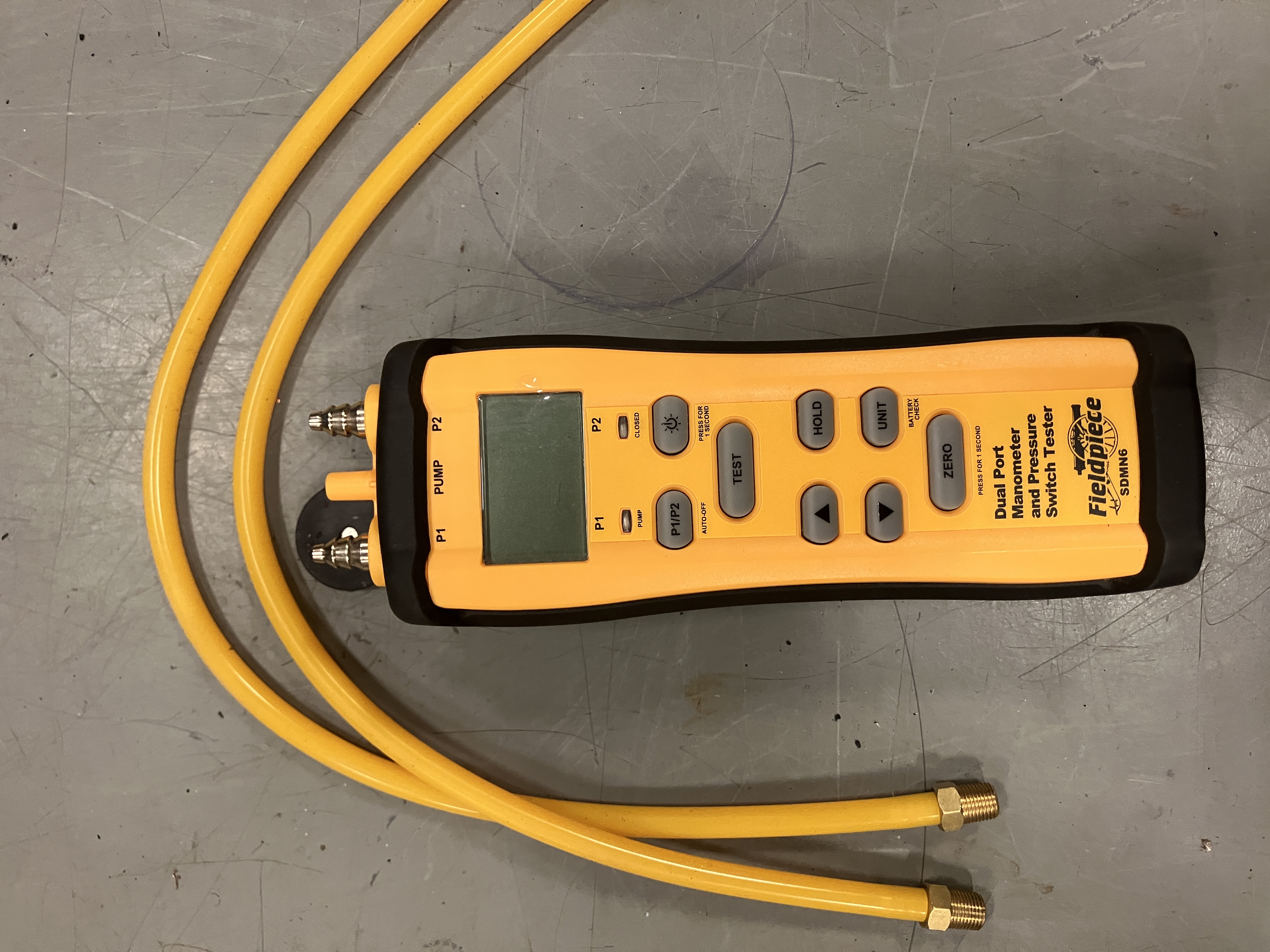

    Manometer


    ✔ Psychrometer (for humidity and wet-bulb temperature measurement)

    Psychrometer


    ✔ HVAC formula chart (for quick conversions and calculations)

    HVAC formula chart

    Conversion & Testing Tools:

    ✔ Temperature conversion calculator (Fahrenheit to Celsius, etc.)

    Temperature conversion calculator


    ✔ Pressure unit converter (PSI, inches of mercury, Pascals)


    ✔ Humidity calculator (for determining relative humidity)

    (Same as HVAC formula chart ^)


    ✔ Voltage and resistance calculator (for electrical component testing)

    Voltage and resistance calculator


    ✔ Refrigerant charging scale (for proper refrigerant amounts)

    Refrigerant Scale (For accurate charging)


    ✔ Airflow meter (for CFM calculations)

    Airflow meter



    Pro Tips for HVAC Trade Mathematics

    ✔ Memorize key HVAC formulas for quick calculations in the field.
    ✔ Use conversion charts and apps to simplify temperature and pressure changes.
    ✔ Double-check airflow readings to ensure proper ventilation and system balance.
    ✔ Always verify pressure values before making system adjustments.
    ✔ Understand psychrometric charts to accurately assess humidity and temperature relationships.
    ✔ Practice common calculations like superheat, subcooling, and heat load calculations.
    ✔ Calibrate measuring tools regularly to ensure accuracy in readings.



    HVAC Trade Mathematics Maintenance Checklist

    ✔ Verify calibration of pressure gauges and thermometers.
    ✔ Ensure accurate refrigerant charging calculations based on manufacturer specifications.
    ✔ Confirm airflow CFM values match system requirements.
    ✔ Cross-check humidity readings with psychrometric data.
    ✔ Perform basic electrical calculations when troubleshooting motor circuits.
    ✔ Keep a reference sheet of common conversions for efficiency.
    ✔ Regularly test digital and analog measurement tools for consistency.
    ✔ Check vacuum readings before refrigerant charging to ensure system integrity.
