Essential Tools for Carbon Steel Piping
Cutting & Threading Tools:
✔ Pipe cutter (for clean, precise cuts)
✔ Threading machine (for threading pipe ends)
+
✔ Pipe reamer (to remove burrs and improve flow)
✔ Hacksaw or bandsaw (for cutting thick steel piping)
✔ Pipe vise (for securing pipe during cutting or threading)
Joining & Fitting Tools:

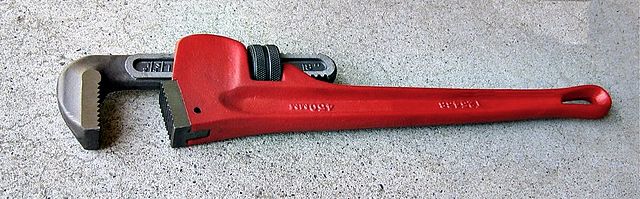

✔ Pipe wrenches (for tightening threaded connections)

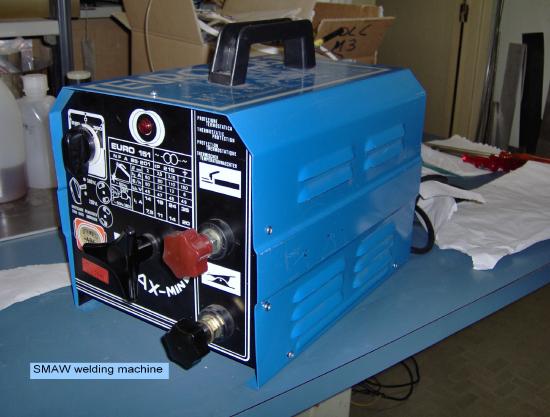

✔ Welding machine (for joining steel piping)

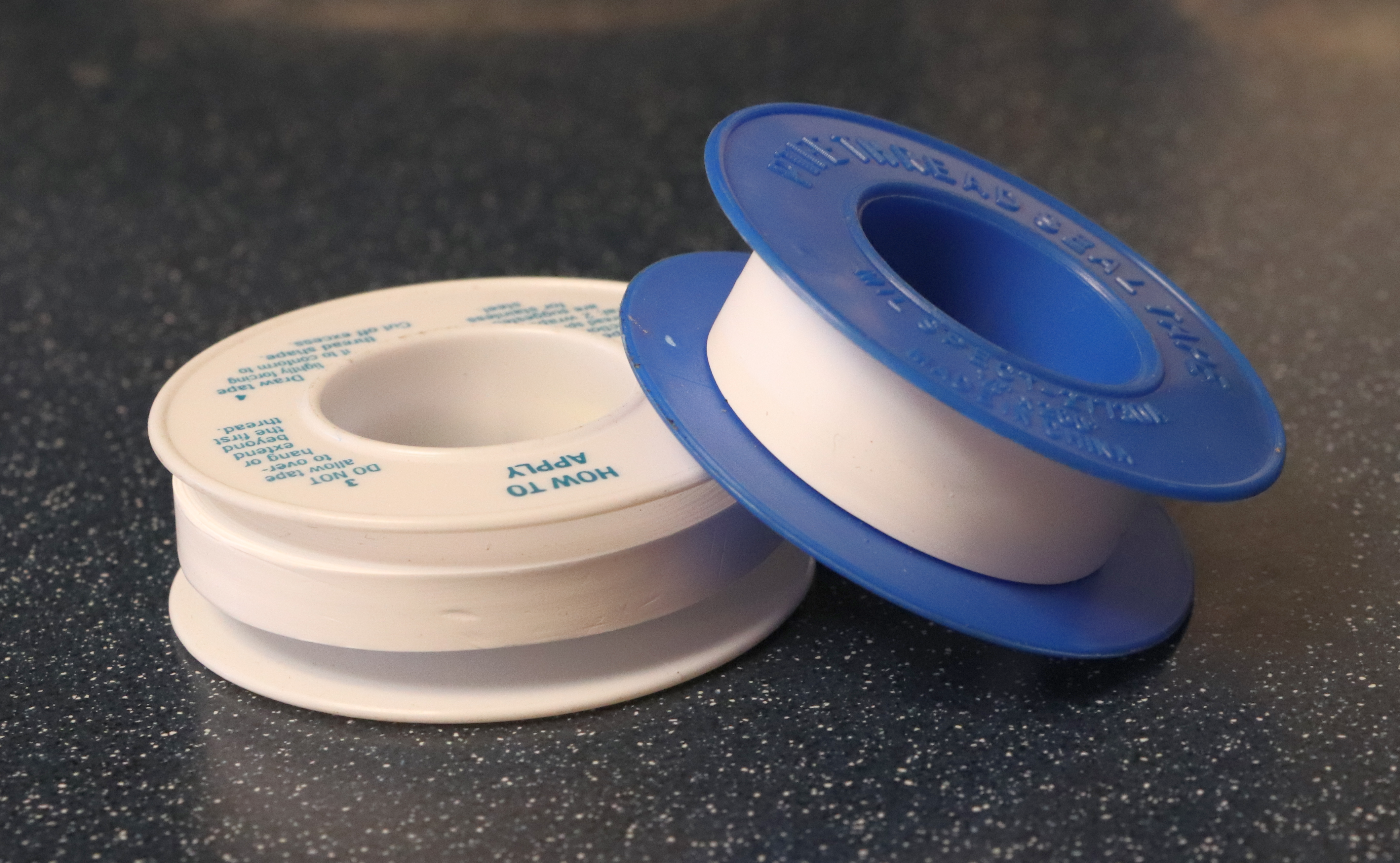

✔ Pipe dope and Teflon tape (for sealing threaded joints)
✔ Compression fittings (for non-welded connections)
Inspection & Safety Tools:
✔ Pressure gauge (for testing pipe integrity)
✔ Corrosion meter (for checking pipe degradation)
(Use your eyes)

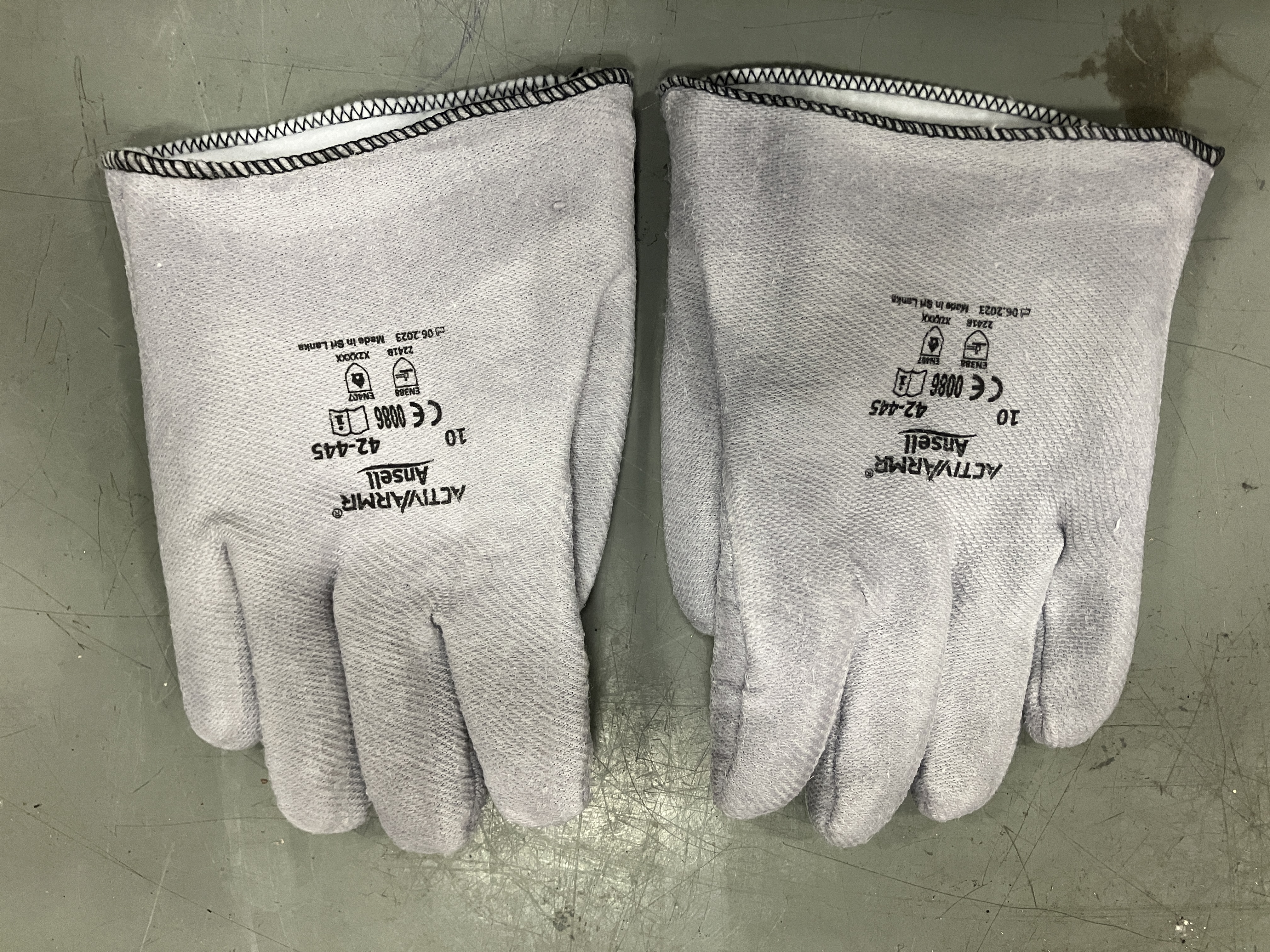

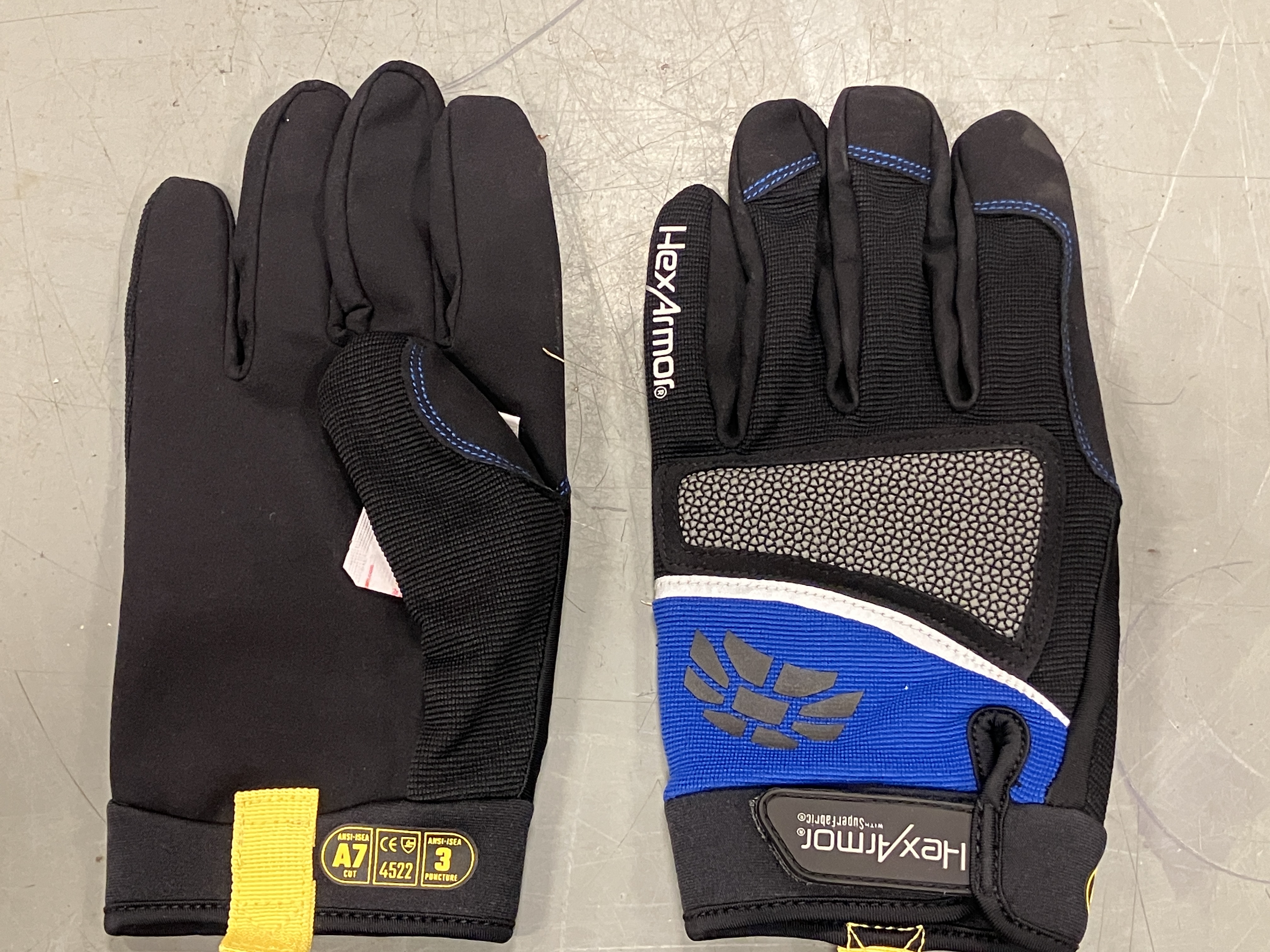

✔ Fire-resistant gloves (for handling hot pipes)

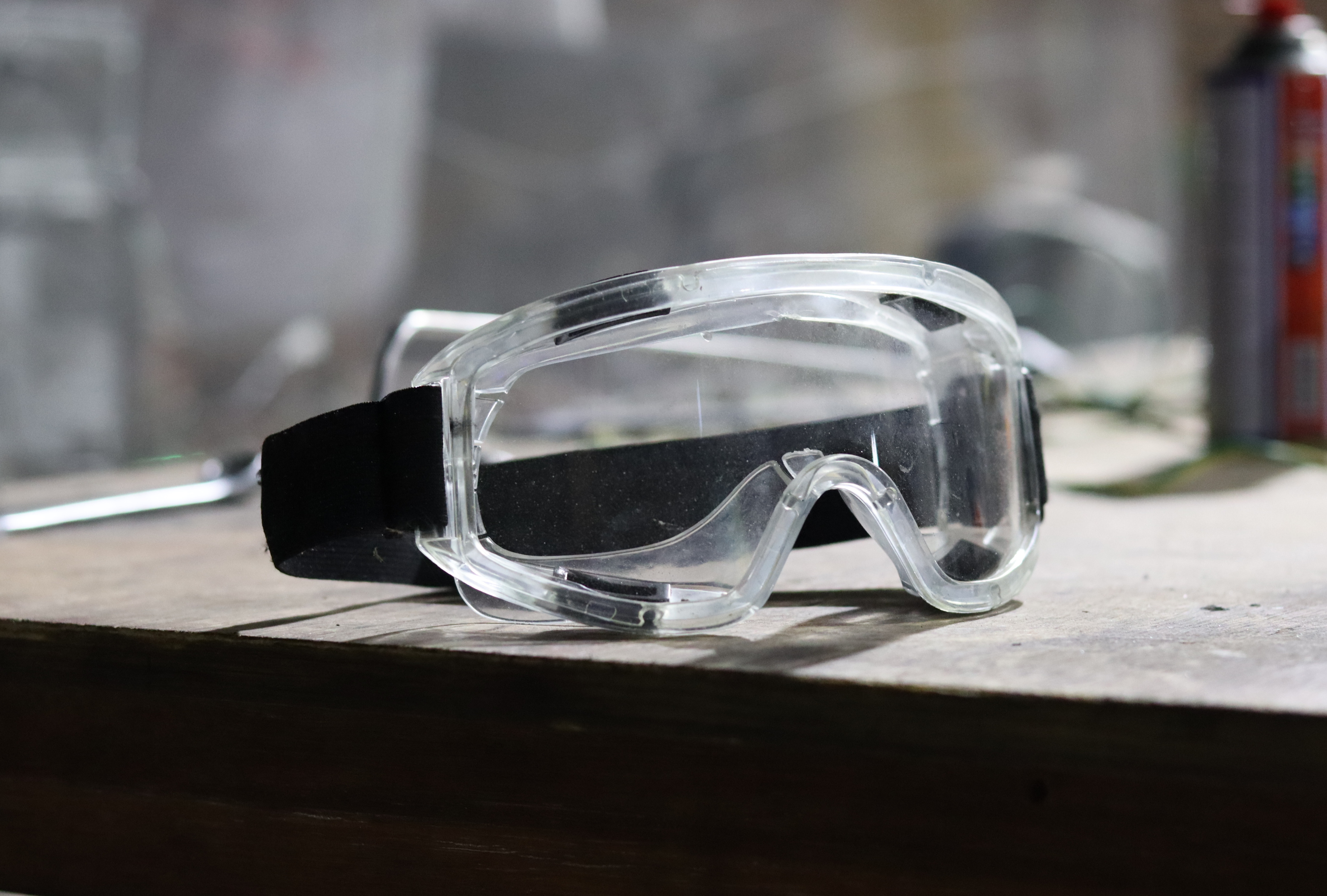

✔ Safety goggles (for eye protection during cutting and welding)
✔ Respirator (for protection against metal fumes)
Pro Tips for Carbon Steel Piping Work
✔ Use the correct threading dies for specific pipe diameters to prevent leaks.
✔ Always clean and deburr pipe ends before threading or welding.
✔ Ensure proper pipe alignment when joining sections to maintain system integrity.
✔ Apply pipe sealants appropriately to prevent leaks in threaded connections.
✔ Check for corrosion regularly to extend the life of the piping system.
✔ Use proper ventilation when welding or working with coated pipes.
✔ Store carbon steel pipes properly to avoid exposure to moisture and rust.
HVAC Carbon Steel Piping Maintenance Checklist
✔ Inspect pipe surfaces for rust and corrosion.
✔ Check for leaks in threaded and welded joints.
✔ Monitor system pressure using gauges to detect weak spots.
✔ Ensure insulation is intact to prevent heat loss and condensation.
✔ Reapply protective coatings to pipes in corrosive environments.
✔ Verify flange bolt tightness to prevent pressure loss.
✔ Test weld integrity using non-destructive testing methods.
✔ Clean and flush piping systems to remove debris buildup.
