The simplest arrangement is two-wheel drive. In these machines, only the rear wheels propel the tractor forward, while the front wheels steer. They’re light, economical, and perfectly suited to flat, dry fields where traction is easy to find. Their simplicity makes them favorites for beginners and for farms where cost and maintenance must stay low. But when the soil turns slick or the ground slopes upward, two-wheel drive reaches its limits.
That’s where four-wheel drive steps in. Here, the engine powers every wheel, distributing torque evenly and gripping the earth with determination. Four-wheel-drive tractors plow through mud, climb hills, and pull massive implements that would overwhelm smaller machines. Their strength comes at a price—greater complexity and cost—but for large farms and commercial operations, the trade-off is worthwhile.
At the frontier stands the autonomous tractor. These machines blur the line between vehicle and robot. Guided by satellites and onboard computers, they navigate fields with centimeter-level accuracy, planting and spraying while their human supervisors watch from a control room—or from a phone screen. They can work day and night, in heat or in dust, tracing perfect lines across thousands of acres. For now, they are expensive and still rare, but they hint at a future where the farmer’s role is to plan, not to drive.
Two-Wheel Drive (2WD)
Rear wheels provide power; front wheels steer only. Best for light-duty work on flat, dry fields.
- Pros: Low cost, simple maintenance, efficient fuel use.
- Cons: Poor traction on hills or mud, limited pulling power.
Fig. 1.6.1
Four-Wheel Drive (4WD)
All wheels are powered, providing strong grip and stability.
- Best for: Large-scale farms, rough terrain, and heavy loads.
- Pros: Better traction, high pulling capacity.
- Cons: Higher price and maintenance complexity.
Fig. 1.6.2
Autonomous Tractors
Self-driving machines that use GPS, sensors, and onboard computers for navigation. Controlled by computer, tablet, or smartphone. Some autonomous models are completely cab-less, relying entirely on remote control and AI.
- Best for: Precision farming and repetitive field operations.
- Pros: Reduces labor costs, operates day and night, maximizes consistency.
- Cons: High cost, requires advanced infrastructure and training.

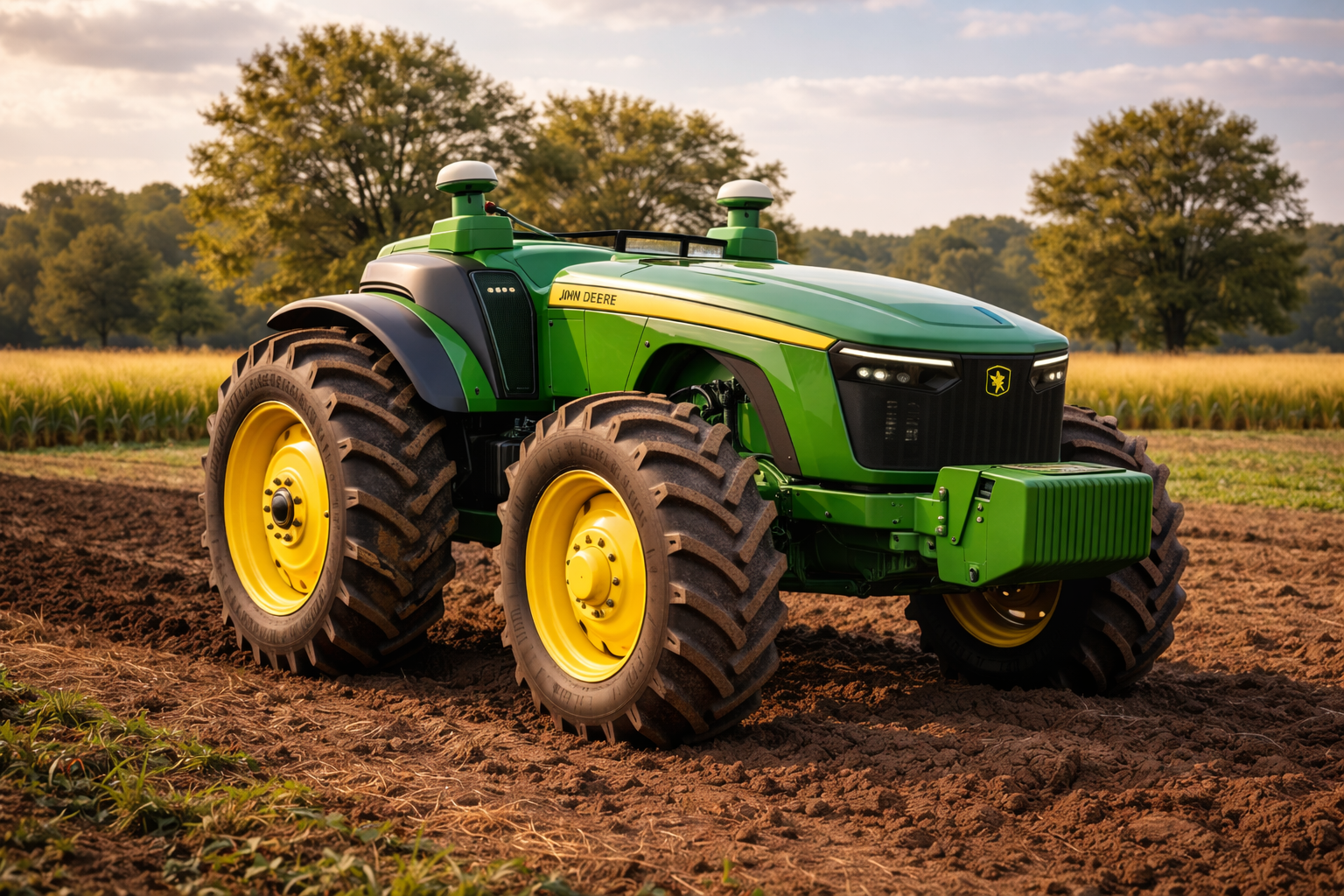

Fig. 1.6.3
Fig. 1.6.1 "create an image of a 2-wheel drive tractor" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 1.6.2 "create an image of a modern four-wheel drvie tractor" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 1.6.3 "create an image of a modern autonomous tractor" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
