Most modern tractors draw their strength from diesel engines. A diesel works through compression ignition—instead of a spark plug, it relies on pressure and heat alone. Air is drawn into the cylinder and squeezed by the piston until its
temperature rises high enough that, when fuel is injected, it bursts into flame instantly. That rapid, controlled explosion pushes the piston downward with tremendous force.
This design gives diesel engines their characteristic traits: high torque at low speeds, excellent fuel efficiency under heavy loads, and exceptional durability. They thrive in work that demands steady, powerful pull—plowing, tilling, hauling—and they can run for thousands of hours with little complaint.
Diesels, however, are not without quirks. They are heavier and noisier than their gasoline cousins, and on freezing mornings they may need glow plugs to pre-heat the cylinders before firing. Repairs, when they finally are needed, can be costly, but the intervals between those repairs are long. That reliability is why diesel has become the standard power source for nearly every modern tractor, from compact utilities to massive four-wheel-drive giants. Fig. 2.2.1
Gasoline and Spark Ignition
Before diesel dominance, the early decades of tractor history belonged to gasoline. Gasoline engines use spark ignition: a precise mixture of air and fuel is drawn into the cylinder, compressed, and then ignited by an electric spark. The design is familiar to anyone who has worked on an automobile—quick to start, smooth to accelerate, and easy to maintain.
Gasoline engines shine in smaller, lighter tasks. They start readily in cold weather, respond quickly to throttle changes, and usually cost less up front. Yet they burn fuel faster, generate less torque at low RPM, and wear out sooner under hard use. Today they survive mostly in older tractors, lawn and garden models, and small utility machines—places where simplicity and responsiveness matter more than brute endurance.
Fig. 2.2.2
LPG: The Clean-Burning Alternative
Some specialized tractors run on liquefied petroleum gas (LPG)—propane or butane stored as a liquid under pressure. Mechanically, LPG engines resemble gasoline engines, but the fuel vaporizes before combustion, producing an exceptionally clean burn. The results are noticeable: lower emissions, less carbon buildup, and quieter operation. Their drawbacks are practical ones—reduced power compared to diesel, limited fuel availability in rural regions, and lower energy content per gallon. For that reason, LPG tractors are typically found in environmentally sensitive settings such as greenhouses or food-production areas, where exhaust fumes must stay minimal.
Electric and Hybrid Power
Fig. 2.2.3
The newest chapter in tractor power is written in silence. Electric tractors use battery-driven motors instead of internal
combustion. Hybrid tractors pair a small combustion engine with an electric motor, drawing energy from batteries that can be charged by plug-in power or regenerative braking.
Electric drive offers instant torque, precise electronic control, and nearly vibration-free operation. There are no oil changes, no exhaust fumes, and few moving parts to wear out. Their limitations are familiar to anyone following electric vehicles: short range, long charging times, and high upfront cost. But on vineyards, organic farms, and research plots where quiet, emission-free work is essential, small electric tractors are already proving themselves. Larger hybrid systems are beginning to appear in experimental field models, promising dramatic fuel savings once charging infrastructure catches up.
Fig. 2.2.4
Comparing the Power Plants
Each engine type brings its own balance of efficiency, torque, and environmental impact. Diesel engines lead in pulling power and endurance. Gasoline engines offer lighter weight and quick starts but lower efficiency. LPG systems split the difference with moderate power and clean exhaust, while electric and hybrid tractors point toward a future of quiet, low-maintenance, high-precision farming. Regardless of the fuel, every design serves the same end: converting chemical energy into the reliable mechanical motion that keeps agriculture moving.

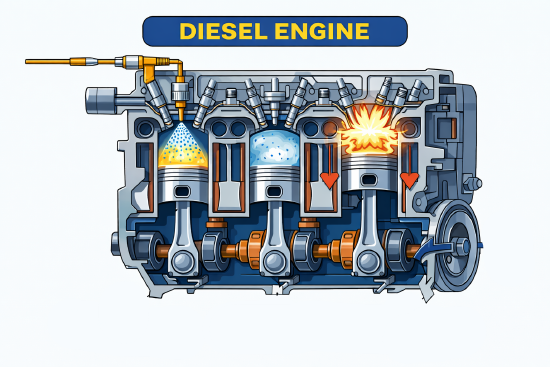

Fig. 2.2.1 "create a cartoon image of a diesel engine" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

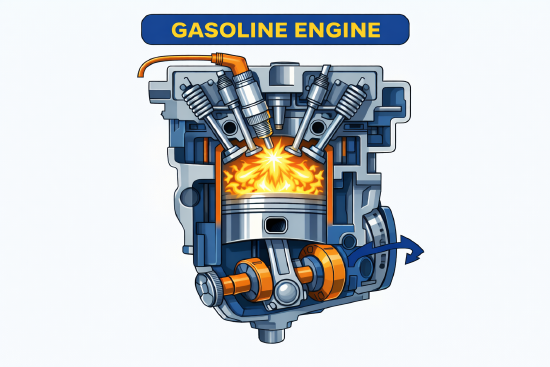

Fig. 2.2.2 "create a cartoon image of a gasoline engine" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

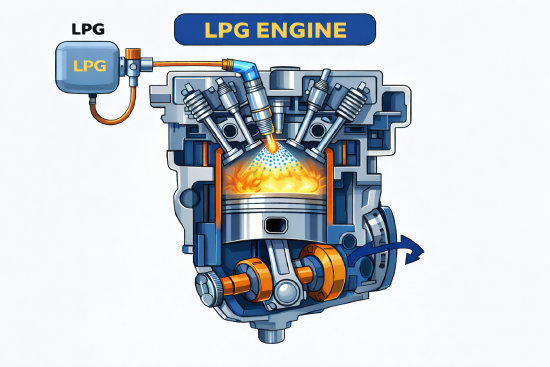

Fig. 2.2.3 "create a cartoon image of an LPG engine " (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

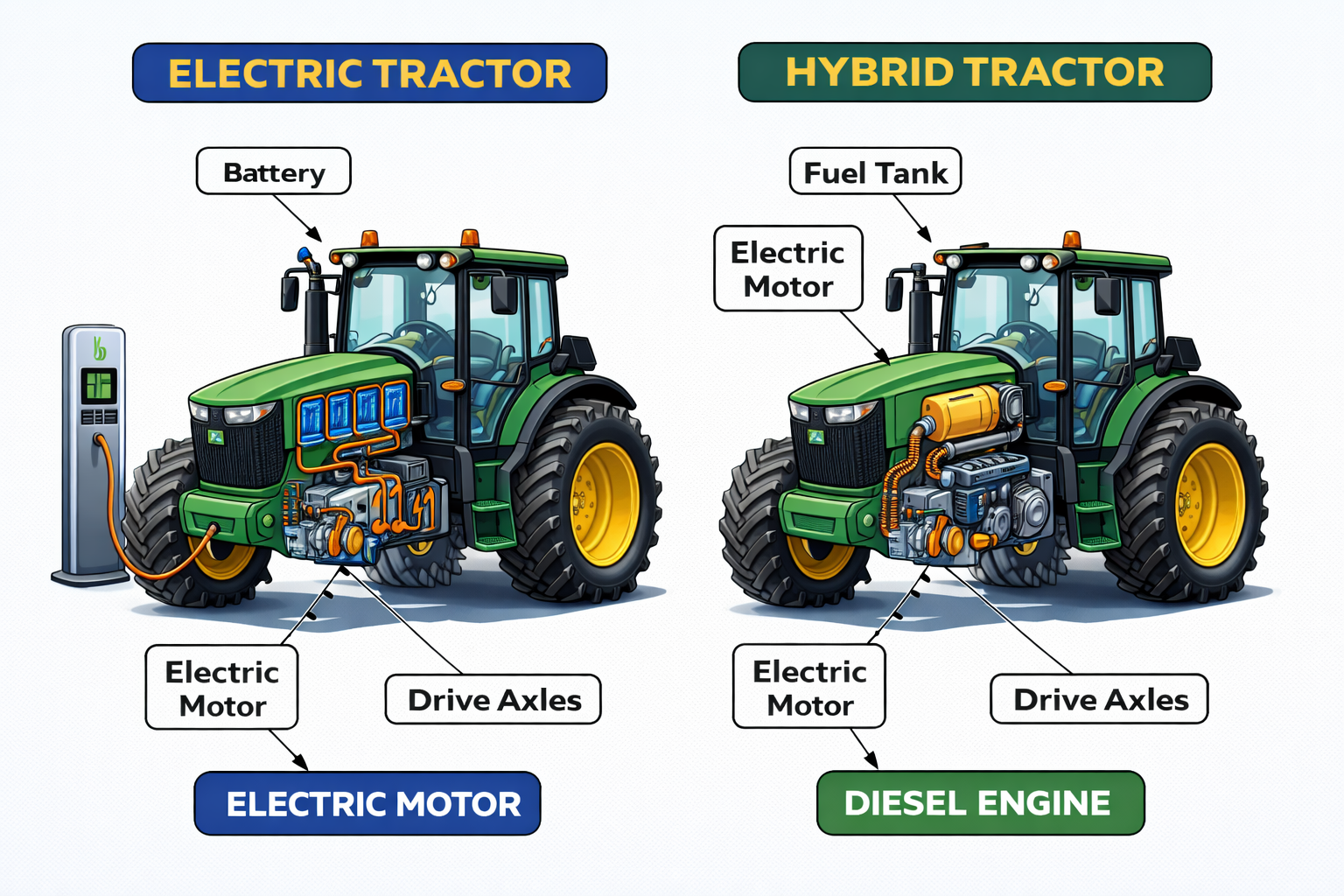

Fig. 2.2.4 "create a cartoon image of a side by side of an electric tractor and a hybrid tractor" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
