Fuel begins its journey in the tank, a sealed reservoir typically made from steel, aluminum, or high-density plastic. It may seem inert, but inside the tank venting caps regulate pressure and drain plugs collect sediment and water that can settle over time. Rust, dirt, or condensation are the tank’s natural enemies; left unchecked, they contaminate the entire system.
From there, the fuel pump takes over. Older tractors use mechanically driven pumps bolted to the engine block, while newer machines rely on electric pumps powered by the battery. Diesel engines demand even greater precision: their pumps must deliver fuel at thousands of pounds per square inch through injection lines so that it atomizes properly in the combustion chamber. A worn or weak pump will starve the engine, causing sluggish starts or loss of power under load.
Before fuel ever touches the injectors, it passes through the fuel filter—or often two of them. The primary filter traps large debris, while the secondary or fine filter removes smaller particles and water. Many diesel filters include a transparent water separator bowl that allows operators to see and drain any trapped moisture. Clean fuel is life itself for a diesel engine; contaminated fuel wears injectors, damages pumps, and throws off combustion timing.
The final stage depends on the engine’s design. In diesels, injectors spray fuel directly into the combustion chamber or a pre-chamber at extremely high pressure, producing a fine mist that mixes instantly with the hot, compressed air. If injectors clog or wear unevenly, the engine begins to smoke, knock, or lose power. In gasoline tractors, the same task once fell to the carburetor—a clever vacuum-driven device that mixes air and fuel in the right proportions before feeding the cylinder. Carburetors are sensitive instruments; they can run “rich” when too much fuel enters or “lean” when too little does, and they dislike old, varnished gasoline or dirt in their tiny passages.

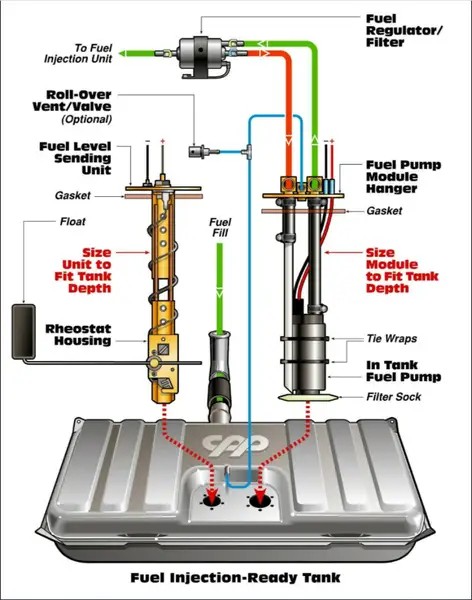

Visualizing the system helps: fuel leaves the tank, flows through the pump, then the filters, and finally reaches either the injectors or the carburetor before being burned in the cylinders. When power fades, the cause often lies somewhere along this chain—clogged filters, weak pumps, or dirty injectors. Regular inspection, clean fuel, and timely filter changes keep this invisible network working silently beneath the hood.
Fig. 2.4.1
Fig. 2.4.1 "create a cartoon image of a fuel tank along with other fuel related components" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
