Fig. 2.6.1
Engine oil begins its circuit in the sump, or oil pan, at the bottom of the engine. The oil pump, usually gear- or chain-driven, draws the oil up from the sump and sends it under pressure through a maze of narrow oil passages called galleries. Along the way it passes through an oil filter, which removes soot, metal shavings, and sludge. Fresh, clean oil then fans out to every critical surface: crankshaft bearings, connecting rods, cam lobes, valve stems, and pistons. After coating and cooling these parts, the oil drains back to the sump to begin the journey again.
Good oil does more than reduce friction. It carries away heat from places that coolant cannot reach, seals microscopic gaps between piston rings and cylinder walls, suspends contaminants, and coats every surface with a thin film that guards against rust. In essence, it is coolant, cleaner, and cushion all in one.
Fig. 2.6.2
The system depends on proper pressure. Too little oil flow and bearings run dry; too much restriction and the pump struggles to circulate it. That’s why tractors are fitted with oil pressure gauges or warning lights. A drop in oil pressure is a warning to shut down immediately—the difference between a simple fix and a ruined engine.
Maintenance is simple but sacred: check oil levels before each day’s work, change oil and filters on schedule, and always use the manufacturer’s specified grade. Multi-grade oils such as 15W-40 flow well in cold mornings yet remain stable under the punishing heat of midsummer fieldwork. When the oil darkens with soot or thickens with sludge, it’s time for a change. A gallon of fresh oil costs a few dollars; an engine seized from neglect can cost thousands.
Within the quiet hum of lubrication lies the difference between a tractor that lasts a season and one that serves for generations.
Fig. 2.6.3
Fig. 2.6.4
Fig. 2.6.1 "create a cartoon image of the lubrication system of an engine" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 2.6.2 "create a cartoon image of what does inside an engine" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 2.6.3 "create an image of the components within an engine oil filter" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

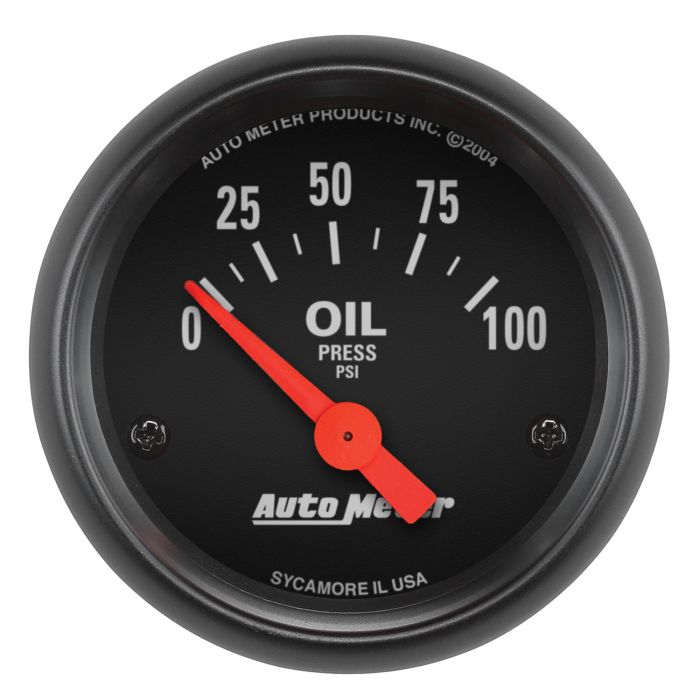

Fig. 2.6.4 "create an image of an oil pressure gauge" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
