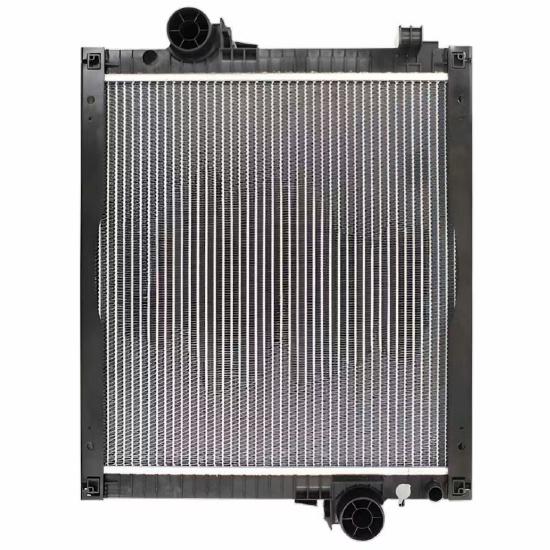

At the heart of the system is the coolant, a mix of water and antifreeze circulating through passages in the engine block and cylinder head. As the coolant moves through those channels, it absorbs heat from the metal, then flows outward toward the radiator, a network of thin tubes and fins mounted at the tractor’s nose. Air rushing through the radiator—whether driven by motion or by a fan—draws away the heat and cools the fluid before it loops back into the engine.
Antifreeze does more than prevent freezing on cold mornings. It raises the boiling point of water so that coolant can carry more heat without vaporizing, and it also adds corrosion inhibitors to protect the metal passages from rust.
Fig. 2.7.1

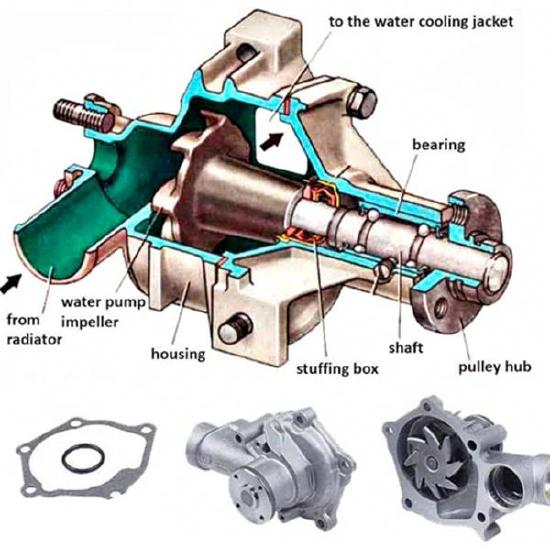

The water pump, usually belt-driven, provides the circulation. Inside, an impeller pushes coolant through the system with steady pressure. A small leak or worn bearing here can quietly undo the whole cycle, leading to overheating or coolant loss. The thermostat, a temperature-sensitive valve, acts as a gatekeeper: closed while the engine warms, open once the metal reaches operating temperature. If the thermostat sticks shut, heat builds rapidly; if it sticks open, the engine may never warm fully and will run inefficiently in cold weather.
Fig. 2.7.2

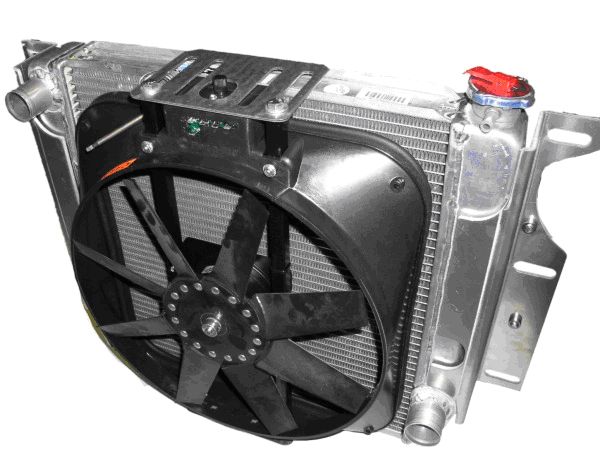

Assisting the process is the cooling fan, which pulls or pushes air through the radiator even when the tractor is idling. Modern fans may be electronically controlled or coupled through a clutch that engages only when heat rises, saving power when full cooling isn’t needed.
Fig. 2.7.3
A reservoir tank beside the radiator catches expanding coolant as it warms and returns it as the system cools. This keeps pressure stable and prevents overflow. Sensors within the cooling circuit relay temperature data to the dashboard, and in some tractors, to the electronic control unit itself.
Fig. 2.7.4
Maintenance is straightforward: keep radiator fins clear of dust, chaff, and insects; flush and refill the coolant every year or two; inspect hoses and pump seals for leaks. Neglecting the cooling system risks more than a temporary shutdown—it can warp the head, crack the block, or cook the oil into sludge. A clean radiator and fresh coolant are a farmer’s best defense against the silent, relentless enemy of heat.
