Fig. 2.8.1
It begins with the battery, a chemical storehouse of energy, typically a 12-volt lead-acid unit, though some large machines use dual 12-volt batteries wired in series for 24 volts. The battery provides the initial surge to crank the engine and feeds the electronics when the tractor is at rest. Once the engine starts, the alternator takes over, converting mechanical rotation into electrical current. Its built-in voltage regulator keeps output steady—around 13.5 to 14.5 volts—so the battery charges without overloading sensitive circuits.
The starter motor is the electrical system’s moment of drama. When the operator turns the key or presses the start button, current flows through the ignition switch to a solenoid that thrusts the starter gear against the flywheel. For a few seconds the motor draws enormous current—hundreds of amps—to spin the engine until it fires, at which point it disengages and the alternator begins to recharge the battery.
Fig. 2.8.2
Modern tractors use wiring harnesses that bundle circuits neatly from front to back, carrying power to lights, instruments, sensors, and control modules. Fuses and relays protect these circuits from overload or short circuits, while grounding straps complete the electrical path back to the battery. A corroded terminal or loose ground can mimic almost any electrical failure—dim lights, dead gauges, or a starter that won’t click—so simple connections are often the first things to check.
Electrical maintenance is partly about cleanliness: bright terminals, tight bolts, and dry connectors. It’s also about vigilance. A weak battery, a slipping alternator belt, or a frayed wire can cascade into bigger failures. Electricity may seem invisible, but in a modern tractor it is as essential as oil
or fuel.
Fig. 2.8.3

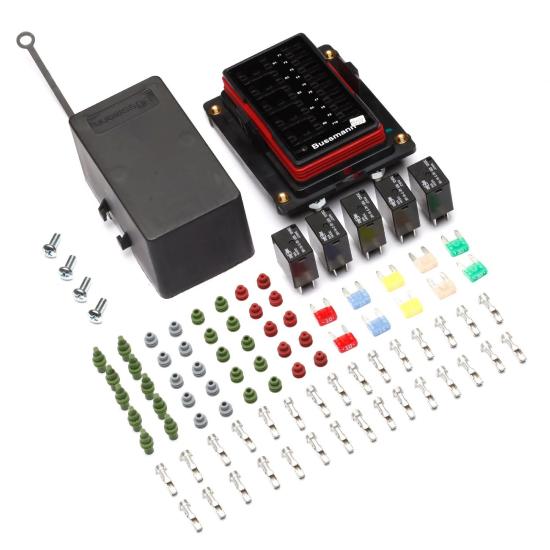

Fig. 2.8.1 "create an image of an automotive fuse box with relays and fuses" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

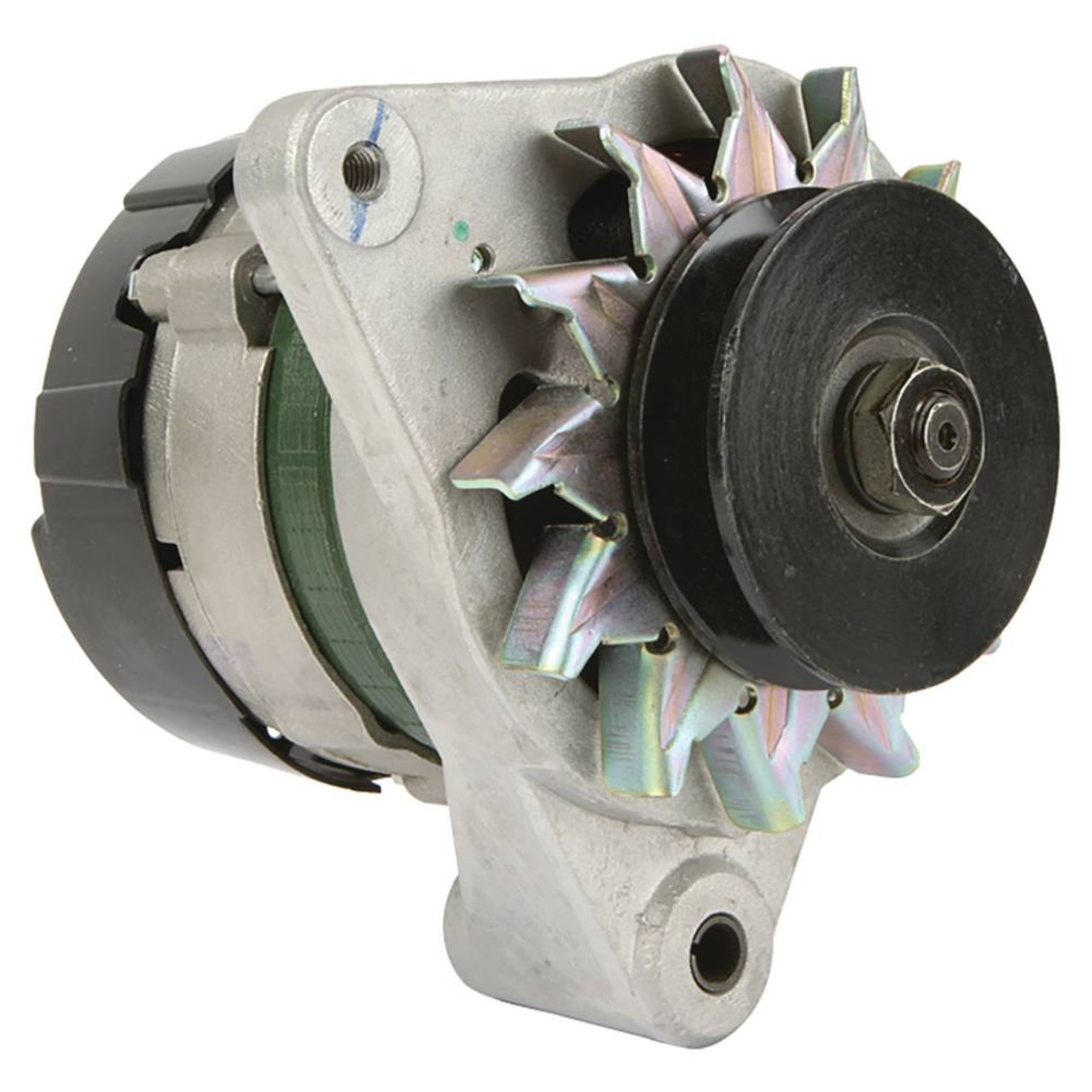

Fig. 2.8.2 "create an image of an automotive alternator" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

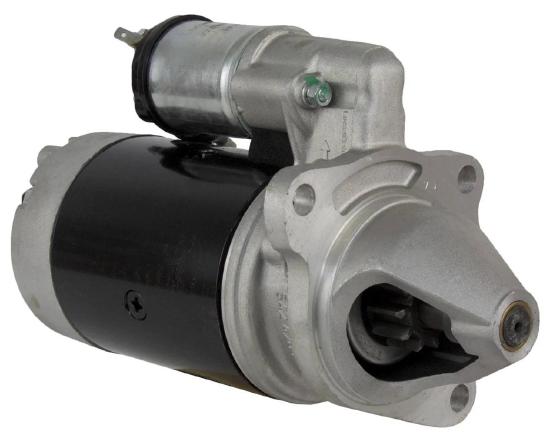

Fig. 2.8.3 "create an image of an automotive starter" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
