At its core is the power distribution module (PDM)—a kind of intelligent fuse box that directs current to lights, sensors, and control panels while communicating through digital buses such as CAN-bus or ISO-bus. These systems allow every electronic component to “talk” to the tractor’s ECUs (electronic control units), which act as the brains behind subsystems like the engine, hydraulics, and lighting.
GPS receivers and auto-steer modules use satellite data to guide the tractor with inch-level precision. They minimize overlap in planting, spraying, and tillage, saving both fuel and time. Power for these systems is drawn from dedicated 12-volt outlets or USB ports, often continuous even when the ignition is off, so data logging and communication can continue between passes.
Fig. 2.9.1

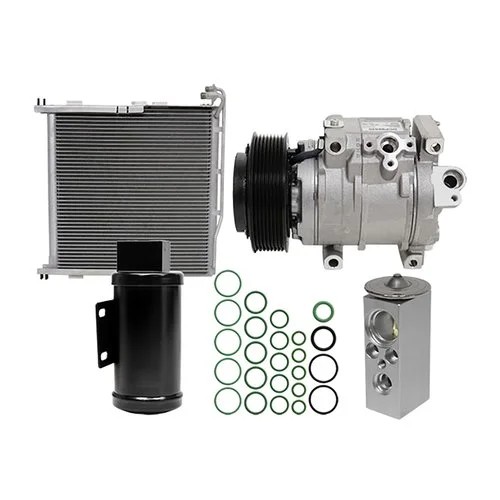

Inside the cab, the operator’s comfort depends on the HVAC system—electric blowers circulate air, thermostats engage compressor clutches for cooling, and heaters tap engine coolant to keep the cabin warm. These systems can draw significant current, particularly when air conditioning is engaged, and are controlled by touch panels or physical switches on modern dashboards.
Fig. 2.9.2
Illumination has entered a new era as well. LED headlights and work lights now replace halogen bulbs, casting bright, wide beams while consuming less power. Some systems automatically adjust brightness based on ambient light or implement position. Multiple high-intensity lamps, however, can still demand serious current, making sound wiring and solid grounding vital.
Fig 2.9.3
Tractors also rely on touch-screen control panels, joysticks, and sensors monitoring everything from seed depth to oil pressure. A weak alternator or bad connection can cause these systems to flicker, reset, or freeze—small electrical issues with large operational consequences.
Fig. 2.9.4
Routine care keeps the network healthy: check connectors for corrosion, ensure the alternator maintains charging voltage, keep cabin electronics dry and clean, and update firmware for GPS or control modules when recommended. In the field, a single bad ground or blown fuse can disable technology worth thousands of dollars. Modern power systems reward precision, not only in the work they perform but in the attention they demand.
