In its most basic form—the open differential—power splits evenly between both wheels. When traction is good, it works beautifully; but in soft or uneven soil, if one wheel slips, the other receives less torque and the tractor can lose pulling power. To counter this, engineers developed limited-slip and locking differentials, each offering more control in challenging conditions.

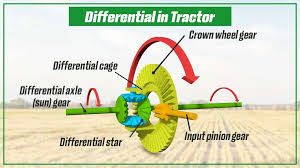

Fig. 3.4.1
A limited-slip differential uses clutches or viscous couplings to sense when one wheel begins to spin faster than the other. It then partially locks the two together, directing more torque to the wheel with grip. The effect is subtle—traction improves without losing the ability to turn smoothly.
A locking differential, by contrast, forces both wheels to spin at the same speed regardless of traction differences. When engaged, it effectively turns the axle into a solid shaft, ideal for deep mud, loose sand, or steep inclines where one wheel might otherwise spin uselessly. Most modern tractors allow the operator to engage or disengage the lock manually or automatically, using a foot pedal, hydraulic switch, or electronic solenoid.
Differentials are not limited to the rear axle alone. Four-wheel-drive and mechanical front-wheel-drive (MFWD) tractors use similar systems in their front axles, often linked so that when rear traction falters, power is shared instantly across all four corners. Some even include center differentials or planetary drives to balance torque front to rear.
Fig. 3.4.2
Traction control is as much art as engineering. Too little slip and the tires grind soil into hardpan; too much and energy is wasted in spin. Properly managed, the differential keeps both traction and maneuverability in harmony, allowing the tractor to turn smoothly, pull confidently, and protect the field beneath it.
Fig. 3.4.3
Fig. 3.4.1 "create a cartoon image of an open differential" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 3.4.2 "create a cartoon image of an open differential in a tractor" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 3.4.3 "create a cartoon image an Limited Slip Differential (LSD)" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
