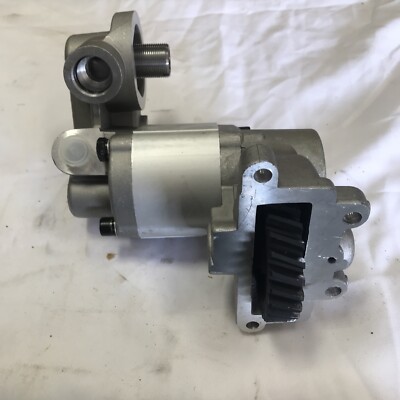

Fig. 3.5.1
A hydraulic pump, driven by the engine or transmission, forces oil through the system under high pressure. This pressurized oil becomes a medium of motion, capable of moving pistons, turning motors, or raising implements with the pull of a lever. The power transmitted depends on two factors: pressure, which determines force, and flow rate, which determines speed. Together they allow a small control valve to command massive movement at the rear hitch or front loader.
Hydraulic systems are remarkably efficient for tasks requiring variable control. They make it possible to lift heavy implements gradually, steer smoothly at any speed, and operate attachments independently of ground travel. Instead of fixed mechanical ratios, the operator has continuous range—fluid power can creep or surge as needed.
In a typical tractor, hydraulic power serves two parallel duties: implement control and transmission assistance. The same pump and reservoir might feed both the three-point hitch and the power steering system, or even help engage the clutch in semi-automatic transmissions. Modern designs use multiple pumps: one for steering and brakes, another for remote valves, and sometimes a dedicated circuit for the transmission.
The lifeblood of the system is hydraulic oil—a specially formulated fluid with detergents, anti-foaming agents, and temperature stabilizers. Contamination is its enemy. A single grain of grit or a drop of water can scar pump vanes or jam control valves. Filters and sealed fittings guard against these hazards, but they require regular inspection. Cloudy oil, erratic motion, or whining noises signal that it’s time for maintenance.
Hydraulics brought subtlety to tractor control. Where gears once limited movement to discrete steps, fluid power offers a continuous gradient of force. The operator can feather a lever to nudge a heavy plow just an inch deeper or lift a bale gently onto a trailer. That capacity for finesse turned tractors from brute haulers into versatile, intelligent tools.

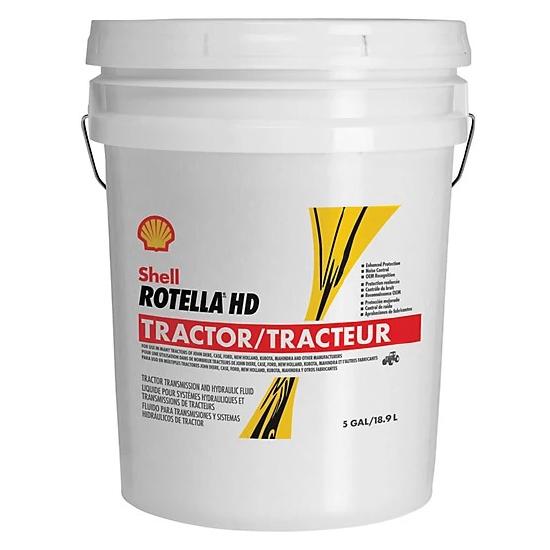

Fig. 3.5.2
Fig. 3.5.1 "create an image of a tractor's hydraulic pump" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 3.5.1 "create an image of a bucket of tractor hydraulic fluid" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
