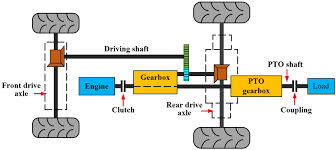

Fig. 3.7.1
When the PTO engages, the engine’s torque flows through a clutch and gearbox to the output shaft, typically located at the rear of the tractor. Implements connect via a splined coupler that locks the driveline securely. Once engaged, the shaft turns at standardized speeds—most commonly 540 revolutions per minute (rpm) for smaller equipment or 1000 rpm for larger implements. Some advanced models offer dual-speed PTOs selectable by lever or button, accommodating a wider range of attachments.
To ensure compatibility across brands, the American Society of Agricultural Engineers (ASAE) established dimensional and speed standards decades ago. A 540-rpm PTO uses a 1⅜-inch, six-spline shaft, while a 1000-rpm PTO uses a 1¾-inch, twenty-one-spline shaft. These conventions allow implements and tractors from different manufacturers to work together safely and efficiently.

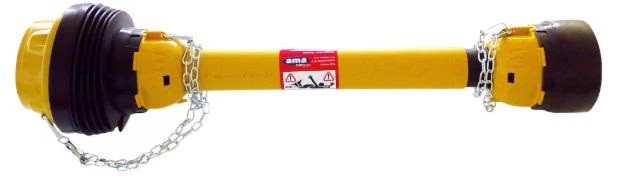

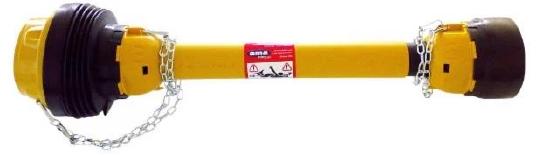

Fig. 3.7.2
Operating a PTO demands attention and respect. Because the shaft transmits full engine power, it can rotate with enough force to maim or kill if used carelessly. Every PTO should have a safety shield covering the rotating parts, and operators must always disengage the PTO and shut off the engine before connecting or adjusting an implement. Loose clothing, dangling cords, or stray hands have no place near a spinning shaft.
Fig. 3.7.3
Modern tractors often feature independent PTOs that can engage or disengage regardless of the tractor’s motion. Older designs used transmission-driven PTOs, where pressing the clutch also halted PTO rotation—a limitation during stationary work like running an auger or pump. Electronic controls now allow smooth engagement and automatic speed matching, protecting both tractor and implement from shock loads.
In essence, the PTO turns the tractor from a vehicle into a power plant. It shares the engine’s strength outward, extending its reach to every implement that tills, cuts, lifts, or harvests. That single rotating shaft represents one of agriculture’s most enduring ideas: one engine, infinite tools.
