Early machines used belt drives, where a wide flat belt ran from a flywheel pulley on the tractor to a matching pulley on the implement—threshers, sawmills, or water pumps. Operators aligned the tractor carefully to keep tension even and prevent the belt from walking off its pulleys. It was an ingenious system for its time, but dangerous and cumbersome. Belts could whip loose, and setting them up demanded space and patience. As PTO shafts became standardized, the belt era faded into memory.
Fig. 3.9.1
Modern tractors rely instead on direct-drive or transmission-driven PTOs. A direct PTO connects straight to the engine crankshaft through a clutch, allowing it to run regardless of whether the tractor moves. This is ideal for stationary operations like powering augers or generators. A transmission-driven PTO, by contrast, receives its power through the transmission gearing. When the operator presses the clutch to stop the tractor, the PTO also stops—a simpler but less flexible arrangement found on older machines.
The advent of the independent PTO solved that problem. It runs through its own clutch, often hydraulically controlled, so the operator can engage or disengage the shaft at any time. Some tractors even feature live PTOs, which keep spinning through a two-stage clutch—the first stage halts the transmission, the second keeps the PTO turning.
Though belt drives belong to history, the principle they embodied—one engine serving many tools—remains the same. The PTO has simply replaced the open belt with a safer, more compact, and far more efficient link between tractor and implement.
Fig. 3.9.2
Fig. 3.9.1"create an image of an old school belt driven threshing machine" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

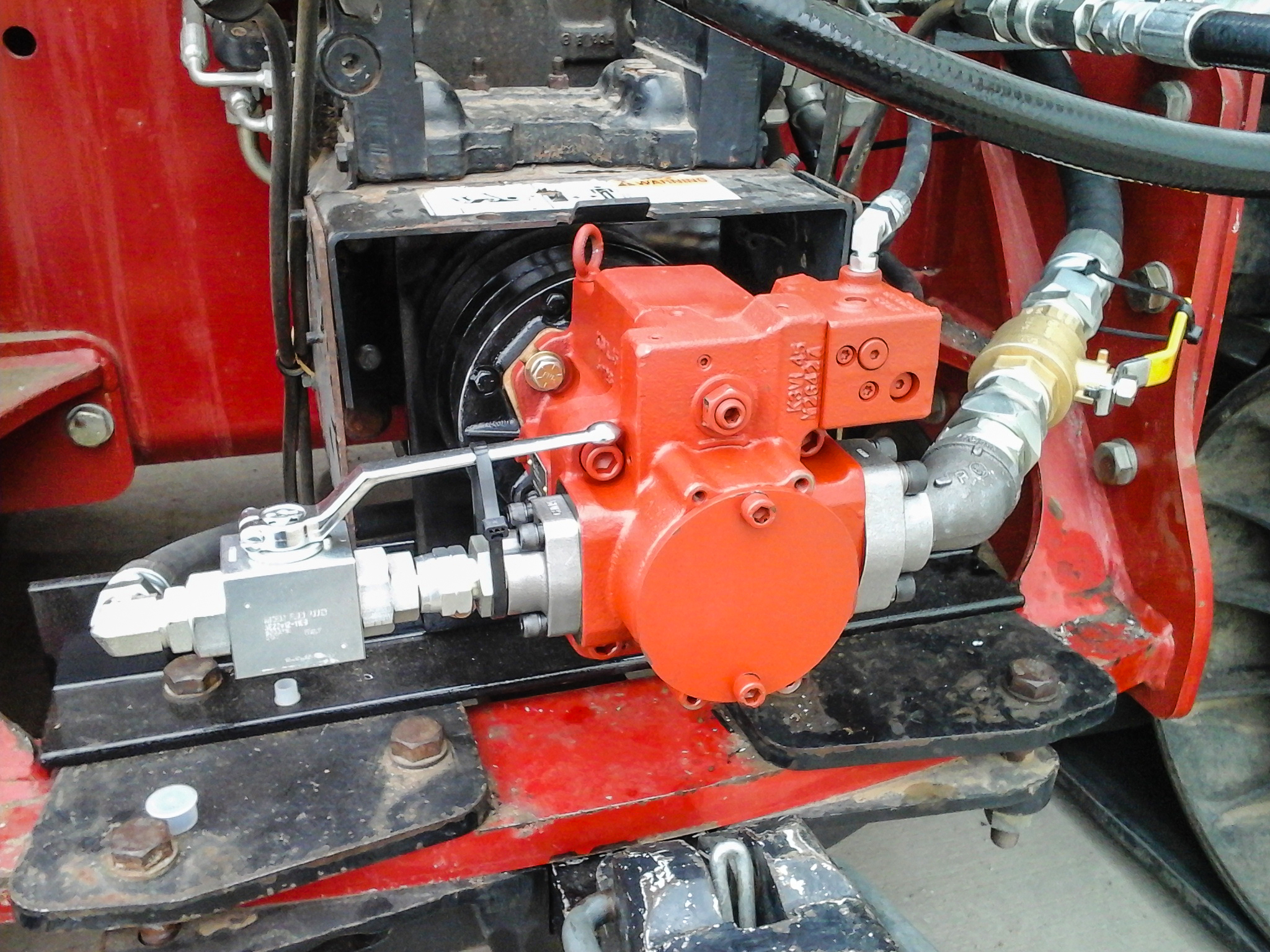

Fig. 3.9.2 "create an image of a tractor PTO hydraulic pump attachment" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
