Hydraulic assist changed everything. Hydraulic steering systems use pressurized oil to multiply the operator’s input, reducing the effort required to turn even under heavy front-end loads. A hydraulic pump driven off the engine sends oil through a control valve linked to the steering wheel. When the operator turns, the valve directs pressure to one side of a steering cylinder, helping push the wheels in that direction. Return lines send fluid back to the reservoir, completing the loop.
The result is smooth, responsive motion that doesn’t depend on brute strength. Hydraulic steering also allows for power steering, where a small wheel input results in large, steady wheel movement. Fail-safe designs ensure that even if hydraulic pressure is lost, manual control remains possible, though much heavier.
Modern tractors have taken steering a step further with electrohydraulic systems, which replace purely mechanical valves with electronic sensors and solenoids. These systems measure wheel position, steering angle, and speed, feeding data to an onboard computer. The computer adjusts steering effort automatically—light at low speeds for maneuvering, firmer at high speeds for stability.
Fig. 3.11.2
Some large or specialized tractors use articulated steering, where the entire chassis bends at a central hinge powered by twin hydraulic cylinders. Instead of pivoting front wheels, the whole body flexes, allowing enormous machines to turn gracefully even under full load.
And then there’s the frontier of automation: GPS-guided steering, which uses satellite data to maintain perfectly straight rows with sub-inch accuracy. The system automatically turns the steering cylinders through electronic controls, leaving the operator to supervise instead of constantly correct. It saves time, fuel, and fatigue—proof that steering has evolved from muscle to microchip without losing its essential purpose: guiding power precisely where it needs to go.
Fig. 3.11.3

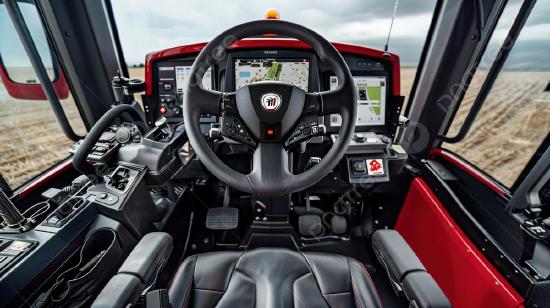

Fig. 3.11.1 "create an image of an inside cab view of a tractor's steering wheel" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
