Early tractors rode on steel lugs, their cleats biting directly into the ground. Modern machines rely on rubber tires, each carefully engineered for a balance of traction, flotation, and wear. The most common are R-1 agricultural tires, recognizable by their deep, V-shaped lugs designed to dig into soft soil. They deliver maximum pull in the field but wear quickly on pavement. For mixed work—both field and road—R-4 industrial tires offer shallower treads and tougher compounds. On turf or lawns, R-3 flotation tires protect the ground with smooth, wide patterns that roll rather than bite.
Tire size and inflation determine how power meets the soil. Lower pressure spreads weight over a larger footprint, improving traction and reducing soil compaction, but too little pressure risks sidewall flexing or bead slippage. Overinflation, on the other hand, narrows the contact patch and causes slippage and vibration. Many modern tractors use central tire inflation systems that automatically adjust air pressure as conditions change—soft fields, hard roads, heavy implements, or light transport.
When more grip or stability is needed, operators may mount dual or triple tire configurations. These add surface area, reduce ground pressure, and increase pulling capacity. Some large tractors use tracks or half-track systems, combining the flotation of a dozer with the maneuverability of a wheeled machine. Tracks minimize compaction but can be costly and complex to maintain.
Weight distribution is just as important as traction. A tractor too light in the front will lift its nose when pulling; too heavy at the rear can bury its tires in mud. That’s where ballasting comes in—adding weight through liquid-filled tires, wheel weights, or front and rear ballast slabs. Proper ballast keeps each axle sharing load evenly, ensuring tires slip just enough to maximize efficiency—typically about 10 to 15 percent in the field. Tires are not just round pieces of rubber; they are sophisticated, load-bearing tools. Keeping them clean, inflated, and balanced transforms every bit of engine power into forward motion and protects the soil the tractor serves. When tuned correctly, they turn raw torque into controlled traction—the handshake between machine and earth.
Fig. 3.14.1
Fig. 3.14.2
Fig. 3.14.1 "create an image of a tractor ballast" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

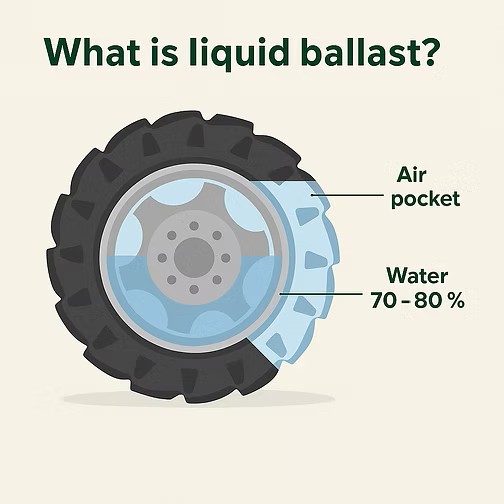

Fig. 3.14.2 "create a cartoon image of a water filled tractor tire" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
