Before ISO-Bus, every manufacturer designed its own cables, connectors, and control systems. Operators faced a tangle of wires and incompatible displays—each implement demanded its own monitor in the cab. ISO-Bus, established under the international ISO 11783 standard, changed that. It created a common protocol for communication between any compliant tractor and implement, regardless of brand.
At its core, ISO-Bus operates as a controller area network (CAN-bus)—a high-speed digital network where multiple devices share information along the same two-wire line. The tractor provides power and processing through a Task Controller, while the implement contributes its own Electronic Control Unit (ECU). When connected, the two exchange data automatically: the tractor supplies speed, PTO rpm, and hydraulic pressure; the implement reports its position, load, and status.

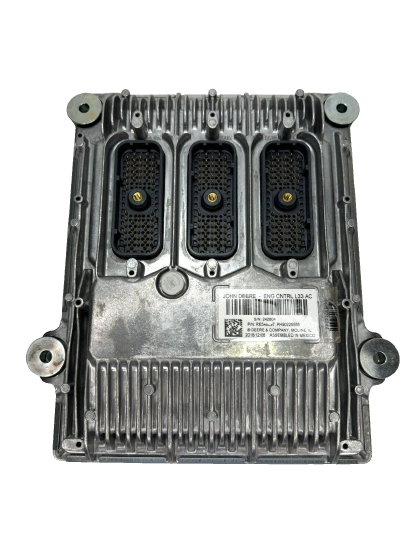

Fig. 3.16.1
This interoperability makes modern farming astonishingly flexible. A single touchscreen in the cab can now control a planter, sprayer, or baler from any manufacturer, displaying live maps, section control, and diagnostic alerts. The operator can program field boundaries, monitor seed rates, and record yields—all through one interface.
Beyond convenience, ISO-Bus enables precision agriculture. When linked with GPS, sensors, and cloud-based software, it allows tractors to make data-driven adjustments in real time. Fertilizer application can vary by soil type, seeding density can change with slope, and irrigation systems can respond to moisture sensors automatically.
Maintenance and troubleshooting benefit, too: onboard diagnostics flag errors, log performance data, and even upload service codes to dealers remotely. The tractor has become part of an intelligent network spanning satellites, sensors, and servers—a far cry from the solitary machines of the past.
Still, at the heart of all this connectivity is a simple idea: when machines can talk to each other, farming becomes more precise, efficient, and sustainable. ISO-Bus is the grammar of that conversation, turning tractors and implements into fluent partners in the language of the land.
Fig. 3.16.1 "create an image of an automotive ecu" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
