    Every tractor tells its story through a panel of needles, dials, and lights. These instruments and gauges are the machine’s pulse, its temperature, and its voice. A quick glance across the dashboard can reveal more about the tractor’s condition than any sound from the engine bay.

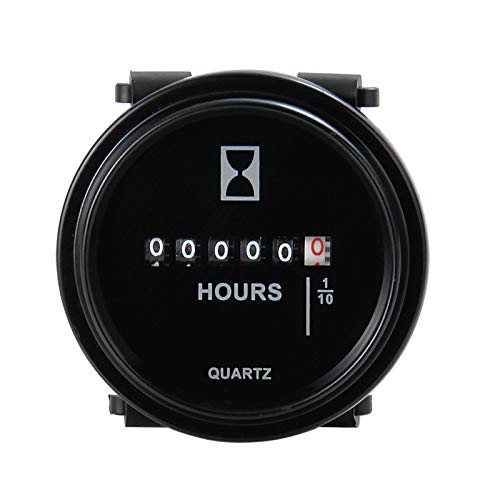

    At the center sits the tachometer, measuring engine speed in revolutions per minute. Operators learn to read it not just as a number but as a rhythm—the healthy hum of work between idle and strain. The hour meter, often built into the tachometer face, quietly accumulates operating time, guiding maintenance schedules more reliably than a calendar ever could.

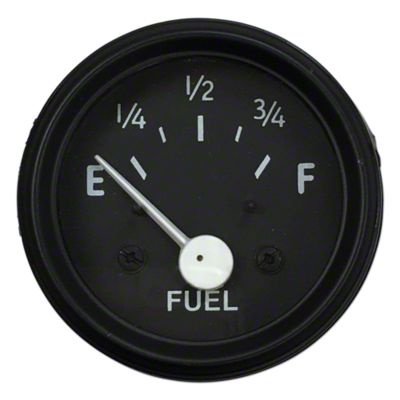

    Beside it, the fuel gauge is the simplest but most consequential dial on the board. Running out of fuel, especially in a diesel engine, is more than an inconvenience—it can introduce air into the lines and require bleeding the system before restarting. A wise operator refuels before the gauge dips too low, just as a pilot never plans to land with empty tanks.

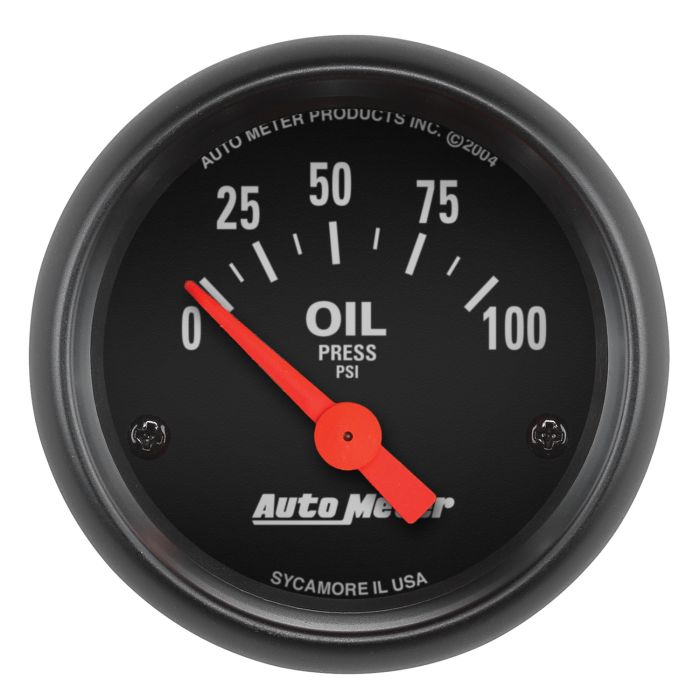

    The oil pressure gauge is the lifeline of the engine. Its needle should rise shortly after startup and hold steady. A sudden drop signals danger: perhaps a leak, a clogged filter, or a failing pump. Equally important is the temperature gauge, which watches the coolant circulate through the block and radiator. If the needle climbs beyond its normal range, the operator must respond immediately—reduce load, check coolant, clear debris from the radiator—before heat turns a small problem into a cracked head or seized piston.

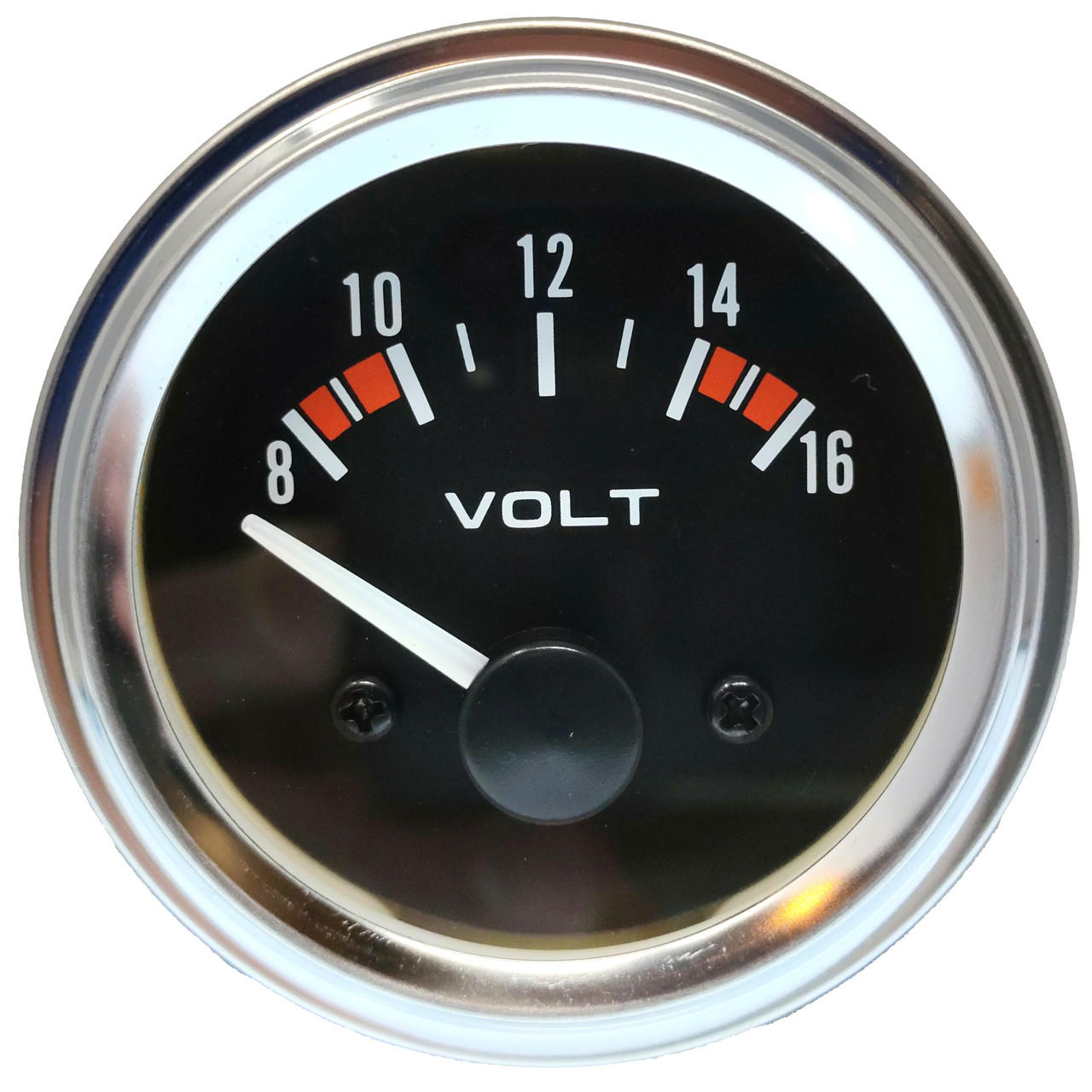

    Electrical health shows itself through the ammeter or voltmeter. When the engine starts, the gauge should swing toward charge, confirming that the alternator is replenishing the battery. A steady discharge warns that the electrical system is running on borrowed time. Flickering lights or erratic readings suggest loose connections or a failing voltage regulator—small issues that can snowball into complete electrical failure if ignored.

    Finally come the warning lights, modern heirs to the older mechanical gauges. Red for oil pressure, amber for engine service, green for systems in operation—each light is a shorthand sentence in the tractor’s language. Learning to recognize their meanings is like learning grammar; they turn the dashboard from decoration into dialogue.

    Black quartz hour meter display showing "00000" hours with an hourglass icon and the word "HOURS" beneath it. Fuel gauge indicating a level just below empty (E) with markings for quarter, half, and three-quarters full. Black oil pressure gauge with red needle, marking 0 psi, labeled “OIL PRESS” and branded “Auto Meter.” Temperature gauge with a black background, white markings, and a red needle pointing towards the 'H' (hot) section. A voltmeter gauge showing a needle positioned between 10 and 12 volts, with a black face and chrome bezel. Dashboard instrument panel featuring speedometer and fuel gauge, along with various indicator lights and a digital display.

    Fig. 4.5.1 Fig. 4.5.2 Fig. 4.5.3 Fig. 4.5.4 Fig. 4.5.5 Fig. 4.5.6

    Fig. 4.5.1 "create an image of a tractor's hour meter" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

    Fig. 4.5.2 "create an image of a tractor's fuel level gauge" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

    Fig. 4.5.3 "create an image of a tractor's oil pressure gauge" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

    Fig. 4.5.4 "create an image of a tractor's water temperature gauge" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

    Fig. 4.5.5 "create an image of a tractor's voltmeter gauge" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

    Fig. 4.5.6 "create an image of a tractor's instrument cluster" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
