On the electrical side, a healthy system runs near 13.5 to 14.5 volts with the engine at work. If the reading falls below that range, the alternator may not be charging, or the regulator may be malfunctioning. Dimming lights or slow cranking on startup are early warnings of a weak battery or corroded terminals. Cleaning the connections often restores full strength; ignoring them invites breakdowns far from help.
In the oil system, normal pressure depends on temperature and engine design—typically 30 to 60 psi for many diesels. The key is consistency. A needle that wavers or drops suddenly is cause to stop and investigate. Oil is not just lubricant; it’s also a coolant and a hydraulic cushion. Loss of pressure means metal is touching metal somewhere deep inside, and seconds can make the difference between an easy fix and a ruined crankshaft.
The temperature gauge tells its own story. Coolant should warm quickly after startup, then hold steady within its operating range. If it climbs higher and stays there, airflow through the radiator may be blocked, the thermostat may be stuck closed, or the water pump could be failing.
When the temperature spikes but the oil pressure drops, it often means the engine is starving for lubrication as the oil thins with heat—a warning that demands immediate shutdown.
Hydraulic performance, too, has its own signals. Slow or jerky lift response can mean low fluid, clogged filters, or air trapped in the lines. Hydraulic oil that looks milky suggests water contamination; dark or gritty oil signals dirt and wear. The sound of the pump tells tales as well: a high-pitched whine means it’s working harder than it should, either against restriction or with too little fluid to draw.
In modern tractors, sensors and electronics join these traditional gauges, feeding data to monitors and alert systems. Yet even with all that technology, the fundamental skill remains the same—reading the signs, interpreting the patterns, and responding before trouble takes hold. A skilled operator doesn’t just watch the instruments; they listen to them, understanding that every gauge is a living connection to the tractor’s hidden workings.
Fig. 4.6.1 Fig. 4.6.2 Fig. 4.6.3 Fig. 4.6.4
Fig. 4.6.1 "create an image of an automotive alternator" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

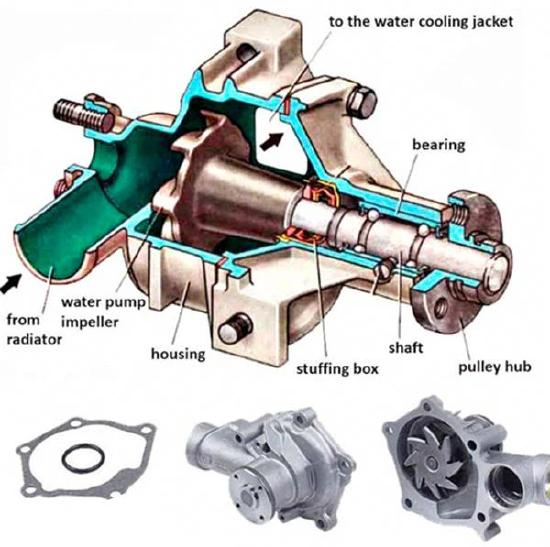

Fig. 4.6.2 "create an image of an automotive water pump and its parts " (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
Fig. 4.6.3 "create an image of an automotive thermostat" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.

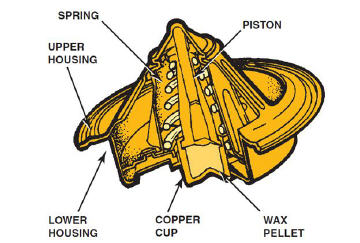

Fig. 4.6.4 "create a drawing of an automotive thermostat" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
