At the center of this system are the hydraulic remotes or Selective Control Valves (SCVs), which channel pressurized oil to external cylinders and motors. Each valve is controlled by a lever, joystick, or electronic switch in the cab. Push one way, and a hydraulic piston extends; pull back, and it retracts. With these controls, an operator can raise a loader, angle a blade, or open a grapple without leaving the seat.
The rock shaft control—usually located near the operator’s right hand—regulates the tractor’s internal lift system. It raises and lowers mounted implements attached to the three-point hitch. Coupled with draft control, it can keep a plow cutting evenly even as soil conditions change. This blend of manual and automatic adjustment is what allows a tractor to adapt from soft loam to packed clay without missing a beat.
Beyond lifting and lowering, hydraulic controls also drive hydraulic motors used in implements like grain augers or post-hole diggers. These motors convert fluid pressure back into rotation, extending the tractor’s power far beyond the PTO. Some tractors include flow control knobs or electronic settings to adjust how fast oil moves through the lines—critical for matching implement requirements and avoiding damage.
Modern tractors often use joysticks that integrate multiple hydraulic functions. One motion may raise and tilt a front loader simultaneously, mimicking the natural motion of lifting and dumping a bucket. On advanced models, these joysticks send signals electronically rather than mechanically, allowing for programmable responses and smoother control curves.
What unites all these systems—rock shaft, SCVs, hydraulic motors, and joysticks—is finesse. They demand a steady hand and a clear understanding of how force, flow, and direction interact. Too much pressure can burst a hose; too little and the implement sags. When the operator masters that balance, the tractor becomes a living extension of intent, capable of work that is delicate or immense with equal grace.

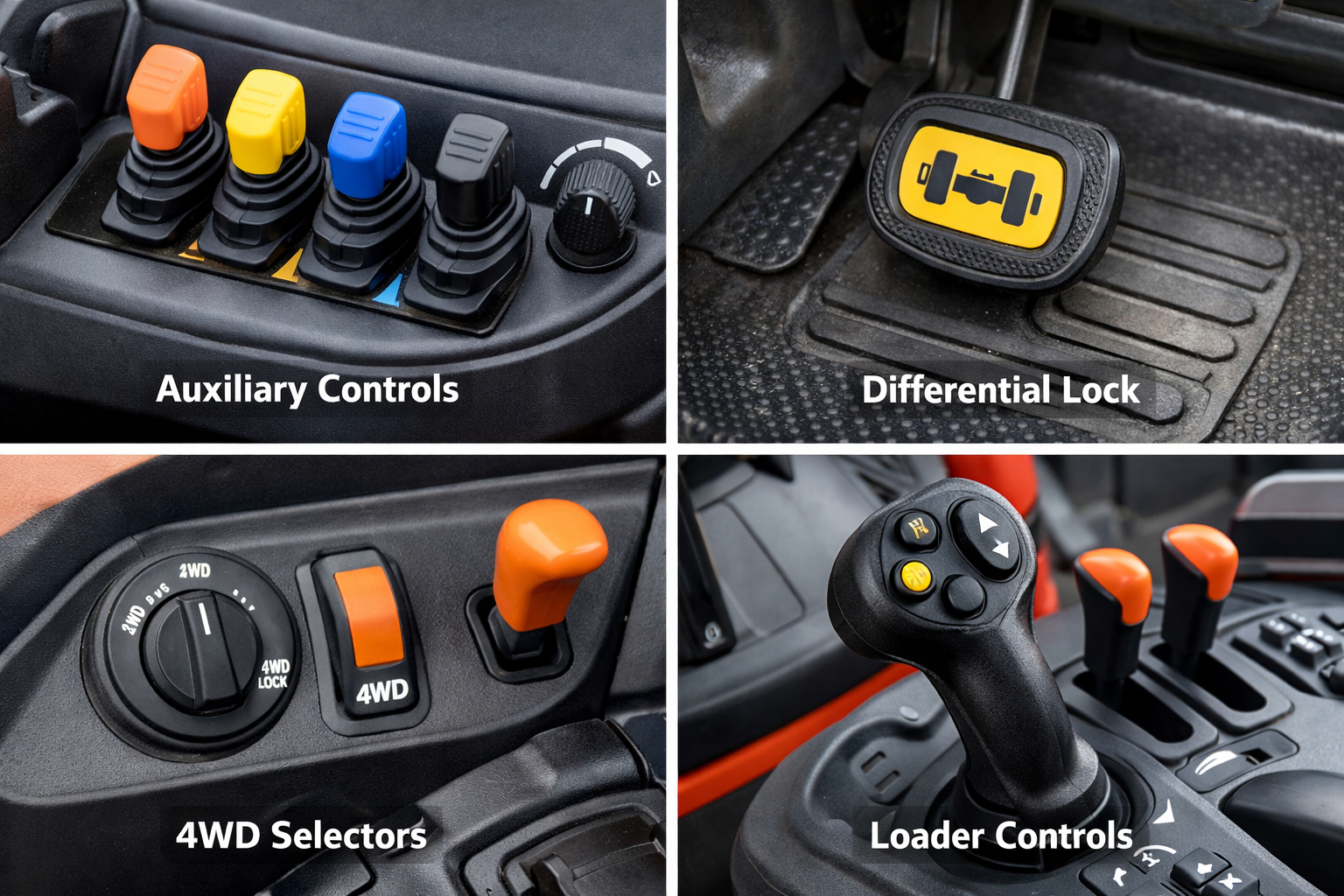

Fig. 4.9.1
Fig. 4.9.1 "create an image of a tractor's auxiliary controls, differential lock, 4wd selectors, anf loader controls" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
