Fig. 4.14.1
Driving a tractor may seem like driving any other vehicle, but the similarities end quickly. Where a car’s power is filtered through automatic transmission and power brakes, a tractor’s control rests directly in the operator’s hands and feet. The clutch lies at the center of that relationship—both a safety tool and a performance instrument.
Depressing the clutch pedal disconnects the engine from the transmission, allowing shifts or stops without killing the motor. But its real art lies in engagement. Letting the pedal out smoothly transfers torque without shock; too quickly and the tractor jerks, possibly lifting its front wheels, too slowly and friction overheats the clutch plates. A well-trained operator finds the “bite point” instinctively, feeling the machine catch and roll forward in one seamless motion.
Dual-stage clutches add complexity but also capability. The first stage disengages the transmission; pressing farther down engages the second stage, which stops the PTO. This allows the operator to change gears while keeping an implement running, an advantage during tasks like baling or tilling. Independent clutches, often hydraulically controlled, make this process easier still—PTO and drive functions can be separated entirely at the touch of a switch.
When driving, coordination between clutch, throttle, and gear shift determines everything. Downshifting before a hill keeps torque high and engine braking available. Upshifting too soon bogs the engine, while running in too low a gear wastes fuel and increases wear. On slopes or with heavy loads, operators keep one hand near the throttle and the other on the gear lever, ready to adjust instantly to changes in traction.
Smooth clutch use also matters during turns or loader work. Slipping the clutch lightly to control speed while keeping RPMs high for hydraulic response takes practice. The goal isn’t simply movement—it’s controlled movement, where the tractor feels responsive yet calm, powerful but never strained. The best operators make this look effortless because they listen: to the tone of the engine, the feel of vibration, and the rhythm of the tires on the soil.

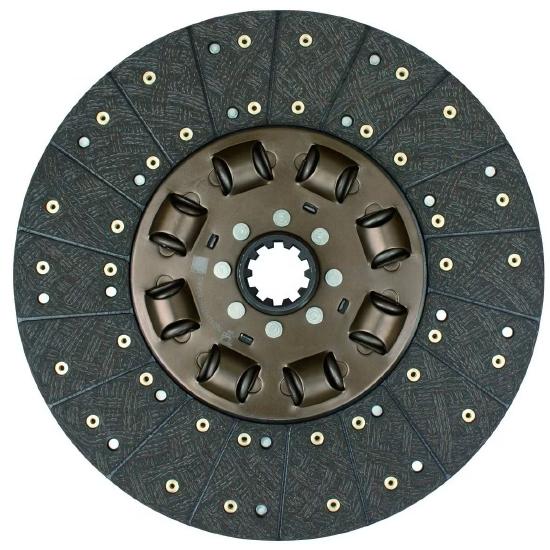

Fig. 4.14..1 "create an image of an automotive clutch disc" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
