ANSI/ASABE safety standards emphasize that tractor driveline systems and operator controls must allow safe, predictable, and controllable operation under varying field conditions (ASABE, 2022). Transmission design therefore affects not only productivity, but also machine stability, operator fatigue, fuel consumption, and operational safety.
Although transmission technology has evolved dramatically over the past century, the underlying principle remains unchanged: altering gear ratios to balance torque and speed according to the demands of the task.
Manual Gear Transmissions
The earliest and most traditional tractor transmissions are manual gear transmissions. These systems use sets of gears mounted on shafts inside the transmission housing. By selecting different gear combinations, the operator changes the relationship between engine speed and wheel speed.
Low gears multiply torque while reducing ground speed, making them ideal for heavy pulling operations such as plowing, ripping, or climbing slopes. Higher gears increase travel speed but reduce available pulling force, making them more suitable for transport operations or lighter field work.
Traditional manual transmissions often used sliding-gear or constant-mesh gear designs. In sliding-gear systems, the operator physically moves gears into engagement using the shift lever. Constant-mesh systems improve durability by keeping gears continuously engaged while using collars or synchronizers to lock selected gears into operation.
Operating a manual transmission requires considerable skill and coordination. The operator must depress the clutch pedal to interrupt engine torque before changing gears. Timing is critical. If gear speeds are mismatched during shifting, the transmission gears may grind against one another, causing wear or damage.
ANSI/ASABE standards emphasize the importance of operator control systems functioning predictably and safely during equipment operation (ASABE, 2022). Improper clutch or gear operation can result in sudden movement, loss of traction, drivetrain shock, or operator instability.
Manual transmissions require operators to think continuously about terrain, engine load, traction conditions, and implement resistance. Gear selection becomes especially important when towing heavy implements or operating on slopes. Downshifting too late may lug the engine and reduce torque output, while selecting gears that are too low wastes fuel and increases unnecessary engine wear.
Experienced operators often develop an instinctive understanding of the tractor’s “working rhythm.” They recognize proper gear selection by listening to engine sound, feeling vibration levels, and monitoring how smoothly power transfers to the soil.
Synchronized Transmissions
As agricultural equipment evolved, synchronized transmissions improved the shifting process significantly. Synchronized transmissions use synchronizer assemblies to equalize gear speeds before engagement. This allows operators to shift gears more smoothly and with less grinding while the tractor is moving.
Unlike older unsynchronized gearboxes that often required stopping completely or “double clutching” to match gear speeds manually, synchronized systems automate much of the process mechanically. This reduces operator fatigue and improves productivity during operations involving frequent speed changes.
Farmers familiar with older manual transmissions often immediately recognize the smoother feel of synchronized gearboxes. Gear transitions become more fluid, and operators spend less effort managing clutch timing and shift synchronization.
Synchronized transmissions improve operational efficiency in applications requiring repeated changes in speed or direction, such as loader work, field transport, or headland turning. ANSI/ASABE safety principles support equipment designs that reduce operator workload and improve control consistency during agricultural operations (ASABE, 2022).
However, synchronized systems still rely heavily on proper clutch usage and operator judgment. Poor shifting practices or aggressive operation under heavy load can still damage synchronizers, gears, and clutch components.
Power-Shift Transmissions
One of the most important advancements in tractor driveline technology was the development of the power-shift transmission. Power-shift systems use hydraulically actuated clutch packs that allow operators to change gears under load without using the clutch pedal.
Instead of manually disengaging the transmission through a foot-operated clutch, hydraulic pressure engages and disengages internal clutch packs electronically or hydraulically. Operators can upshift or downshift simply by moving a lever or pressing a button.
This capability is extremely valuable during heavy field operations where maintaining momentum and traction is critical. When towing large implements across varying terrain, the operator may need to adjust speed frequently to respond to changes in soil resistance, slopes, or traction conditions. Power-shift transmissions allow those adjustments to occur without interrupting power flow to the wheels.
Continuous power delivery improves:
-
Traction stability
-
Field efficiency
-
Fuel management
-
Operator comfort
-
Productivity under changing loads
ANSI/ASABE standards emphasize maintaining safe machine control and minimizing abrupt drivetrain responses during operation (ASABE, 2022). Power-shift transmissions contribute to safer operation by reducing the need for repeated clutching under difficult conditions.
Modern power-shift systems often incorporate electronic transmission controls that automatically coordinate hydraulic pressure, clutch engagement timing, and gear selection. This reduces driveline shock and improves smoothness during shifting.
However, power-shift transmissions also require careful hydraulic system maintenance. Because gear changes depend on hydraulic pressure and clutch pack operation, contaminated oil, worn filters, or pressure loss can cause slipping, overheating, or transmission damage.
Hydrostatic Transmissions
Hydrostatic transmissions represent a fundamentally different approach to power transfer. Instead of relying primarily on mechanical gears, hydrostatic systems use hydraulic pumps and motors to transmit engine power.
In a hydrostatic transmission, the engine drives a variable-displacement hydraulic pump. Hydraulic fluid under pressure then powers a hydraulic motor connected to the drivetrain. By varying fluid flow and pressure, the system continuously changes speed and torque without traditional gear changes.
To the operator, hydrostatic operation feels exceptionally smooth and intuitive. Speed and direction are often controlled simply by pressing forward or reverse pedals. There are no abrupt gear transitions, clutch engagements, or shift interruptions.
This makes hydrostatic transmissions especially useful for:
-
Loader operations
-
Landscaping work
-
Mowing
-
Precision maneuvering
-
Operations requiring frequent directional changes
Because hydraulic flow changes continuously, operators can make extremely precise speed adjustments while maintaining steady engine RPM for hydraulic responsiveness or PTO performance.
ANSI/ASABE safety standards support transmission systems that provide smooth, predictable operator control and reduce sudden machine movement (ASABE, 2022). Hydrostatic drives excel in this area because of their gradual and highly controllable power delivery.
Despite their ease of use, hydrostatic systems are mechanically sophisticated and highly dependent on fluid condition. Hydraulic oil serves simultaneously as the power-transfer medium, lubricant, and cooling agent. Contaminated oil, clogged filters, or overheating can quickly damage pumps and motors.
Operators must therefore pay close attention to:
-
Hydraulic oil cleanliness
-
Filter maintenance
-
System temperatures
-
Fluid levels
-
Hydraulic pressure response
Infinitely Variable Transmissions (IVT/CVT)
The most advanced tractor transmissions today are Infinitely Variable Transmissions (IVTs), also called Continuously Variable Transmissions (CVTs). These systems combine hydrostatic and mechanical driveline components under computerized electronic control.
Unlike traditional transmissions with fixed gear steps, IVTs allow operators to select virtually any ground speed within the tractor’s operating range. The transmission then automatically adjusts hydraulic and mechanical power flow to maintain optimal engine efficiency.
Operators may select travel speeds measured in fractions of a mile per hour while the transmission continuously adjusts engine RPM and gear ratios automatically. This provides exceptional control during precision agriculture operations such as planting, spraying, harvesting, and strip tillage.
IVT systems optimize:
-
Fuel efficiency
-
Engine load management
-
Traction control
-
Ground speed consistency
-
Operator comfort
Precision farming technologies integrate especially well with IVTs because GPS-guided systems often require exact speed consistency for accurate seed placement, chemical application, or harvesting operations.
ANSI/ASABE safety principles emphasize operator control reliability and predictable machine response under varying conditions (ASABE, 2022). IVT systems improve these capabilities through intelligent electronic management of power transfer.
However, advanced electronic and hydraulic systems also increase maintenance complexity. Sensors, control modules, hydraulic pumps, and electronic actuators must function together precisely for proper operation.
Operator Awareness and Transmission Management
Regardless of transmission type, the ultimate goal remains the same: transferring engine power smoothly and efficiently without unnecessary stress, wasted energy, or loss of control.
Even with modern automation, successful tractor operation still depends heavily on operator awareness and judgment. The transmission may shift automatically, but the operator remains responsible for understanding load conditions, terrain changes, traction limits, and machine behavior.
Experienced operators continuously monitor:
-
Engine sound
-
Transmission response
-
Wheel slip
-
Ground speed
-
Hydraulic performance
-
Fuel consumption
-
Vibration and driveline feel
A tractor pulling efficiently feels smooth, balanced, and responsive. An overloaded or improperly geared tractor may lug, vibrate excessively, lose traction, or consume fuel inefficiently. Technology can assist the operator, but it cannot replace the operator’s instinct and situational awareness.
The best operators understand that transmission control is not simply about movement—it is about matching machine capability to field conditions with precision and care. The transmission may determine how power reaches the soil, but it is the human behind the wheel who determines how the work should feel.

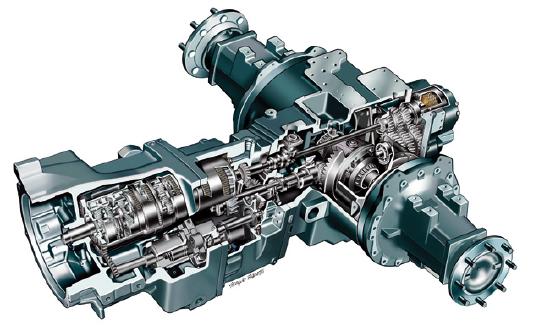

Fig. 4.15.1 "create an image of a tractor's synchronized transmission" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
American Society of Agricultural and Biological Engineers (ASABE). ANSI/ASAE S318.19 OCT2022: Safety for Agricultural Field Equipment. St. Joseph, MI: ASABE, 2022.
American Society of Agricultural and Biological Engineers (ASABE). ANSI/ASAE S478.1: Operator Controls on Agricultural Equipment. St. Joseph, MI: ASABE.
American Society of Agricultural and Biological Engineers (ASABE). ANSI/ASAE S278.7: Agricultural Machinery Use and Operation Safety. St. Joseph, MI: ASABE.
American Society of Agricultural and Biological Engineers (ASABE). ANSI/ASAE S390.5: Definitions and Classifications of Agricultural Field Equipment. St. Joseph, MI: ASABE, 2018.
