Modern tractors use sensors, electronic control modules, digital displays, and onboard monitoring systems to quantify traction, fuel consumption, hydraulic pressure, engine load, PTO performance, implement response, and field productivity in real time. ANSI/ASABE safety and operational standards emphasize the importance of operator information systems, machine feedback, and controllable equipment performance in maintaining safe and efficient agricultural operations (ASABE, 2022).
Performance monitoring systems improve more than productivity—they enhance operator awareness, reduce mechanical stress, improve fuel efficiency, and support preventive maintenance. By providing continuous machine feedback, these systems help operators make informed adjustments before minor inefficiencies become major failures.
Basic Tractor Monitoring Instruments
Although modern tractors now include advanced digital technologies, the foundation of tractor monitoring still begins with several traditional gauges and indicators. These basic instruments provide immediate information about critical operating conditions and remain essential for safe operation.
Common foundational gauges include:
-
Tachometer
-
Fuel gauge
-
Engine temperature gauge
-
Oil pressure gauge
-
Hydraulic pressure indicators
-
Voltmeters or charging system indicators
-
Warning lights and alarms
The tachometer remains one of the most important operator instruments because it displays engine RPM (revolutions per minute). Agricultural engines are designed to operate most efficiently within specific RPM ranges where fuel combustion, torque output, hydraulic flow, and PTO speed remain optimized.
ANSI/ASABE standards related to operator controls and instrumentation emphasize that information displays should provide operators with clear and understandable feedback regarding machine condition and operational safety (ASABE, 2022).
Maintaining proper RPM becomes especially important during PTO operations because many implements require standardized PTO speeds—commonly 540 RPM or 1000 RPM—to function correctly. Excessive engine RPM may overspeed implements and damage driveline components, while insufficient RPM may reduce implement performance and overload the tractor.
Fuel gauges also provide more than simple fuel level information. Fuel consumption trends often reveal changing load conditions, traction inefficiencies, or implement problems. Unexpectedly rapid fuel consumption may indicate wheel slip, excessive draft load, clogged filters, or inefficient operating speeds.
Engine temperature and oil pressure gauges serve as critical protective indicators. Rising coolant temperatures may indicate radiator blockage, coolant loss, excessive engine load, or fan system failure. Low oil pressure can signal lubrication problems capable of causing catastrophic engine damage within seconds if ignored.
Operators who monitor these gauges consistently often identify developing problems before major failures occur.
Advanced Digital Monitoring Systems
Modern tractors have expanded far beyond basic analog instrumentation. Electronic monitoring systems now integrate information from dozens or even hundreds of sensors distributed throughout the machine.
Digital performance displays may include:
-
Wheel slip monitoring
-
PTO torque measurement
-
Fuel flow analysis
-
Hydraulic flow and pressure monitoring
-
Transmission performance data
-
Engine load percentages
-
GPS guidance information
-
Implement depth monitoring
-
Yield mapping
-
Ground speed calculations
-
Field efficiency analysis
These systems transform the tractor cab into a real-time operational control center. ANSI/ASABE safety standards support operator information systems that improve situational awareness, machine controllability, and operational efficiency (ASABE, 2022).
Wheel slip sensors are especially important during tillage and heavy pulling operations. Excessive wheel slip wastes fuel, damages soil structure, increases tire wear, and reduces traction efficiency. Operators can monitor slip percentages and adjust ballast, tire inflation, gear selection, or implement depth accordingly.
For example, if slip percentages rise beyond efficient operating limits, the operator may:
-
Reduce implement depth
-
Shift to a lower gear
-
Add ballast
-
Reduce travel speed
-
Adjust tire pressure
PTO torque meters provide additional insight during operations involving balers, mowers, augers, sprayers, or harvesting equipment. Sudden fluctuations in PTO load may indicate uneven crop density, implement plugging, driveline stress, or improper implement adjustment.
Fuel flow meters and fuel-efficiency displays allow operators to compare productivity against fuel consumption continuously. Modern systems may calculate:
-
Gallons per hour
-
Acres per gallon
-
Fuel consumption per acre
-
Load efficiency percentages
These measurements help operators optimize operating speeds and reduce unnecessary fuel usage during field operations.
Hydraulic and Implement Monitoring
Hydraulic systems represent another major area of modern performance monitoring. Agricultural tractors depend heavily on hydraulic systems for steering, braking, loader operation, three-point hitch control, remote implements, and transmission functions.
Hydraulic monitoring systems track:
-
Fluid temperature
-
System pressure
-
Flow rates
-
Hydraulic load
-
Valve response
-
Filter condition
High hydraulic temperatures often indicate excessive load, restricted flow, contaminated fluid, or failing hydraulic components. ANSI/ASABE operational safety standards emphasize maintaining hydraulic systems in safe operating condition and monitoring equipment performance during use (ASABE, 2022).
Operators may detect developing hydraulic problems through both digital indicators and physical machine behavior. Slow loader response, jerky cylinder movement, steering stiffness, or abnormal hydraulic noise may all accompany elevated hydraulic temperatures or pressure irregularities.
Modern implements also increasingly communicate directly with the tractor through ISOBUS and other electronic communication systems. These integrated systems allow tractors and implements to exchange operational data automatically.
Implement monitoring may include:
-
Seeding rates
-
Spray application rates
-
Harvesting yield data
-
Bale density measurements
-
Soil engagement depth
-
Downforce pressure
-
Row spacing accuracy
This integration allows operators to adjust implement settings dynamically while maintaining precise field performance.
Operator Awareness and Sensory Feedback
Despite advanced electronic monitoring systems, experienced operators understand that tractors still communicate through physical sensation and observation. The machine provides feedback not only through digital displays, but also through sound, vibration, traction feel, steering response, and engine behavior.
Operators continuously interpret:
-
Engine tone
-
Exhaust appearance
-
Vibration levels
-
Tire behavior
-
Steering resistance
-
Implement movement
-
Hydraulic sounds
A skilled operator compares what the machine feels like with what the instruments display. When those signals agree, confidence in machine performance increases. When they conflict, further investigation becomes necessary.
For example:
-
A tractor may display acceptable engine load while still feeling unstable due to traction loss.
-
Hydraulic pressure may appear normal even though steering response feels delayed.
-
PTO load may fluctuate subtly before visible implement plugging occurs.
The best operators combine technology with intuition rather than relying entirely on either one.
ANSI/ASABE safety principles recognize the importance of operator awareness and maintaining safe control under varying operational conditions (ASABE, 2022). Human judgment remains central to safe agricultural equipment operation even as technology advances.
Data Logging and Long-Term Performance Analysis
Modern tractors increasingly record operational data automatically through onboard computer systems. These systems store machine performance information over time, creating detailed records that support maintenance planning, efficiency analysis, and precision agriculture management.
Recorded operational data may include:
-
Total engine hours
-
Fuel consumption history
-
Average wheel slip
-
PTO load trends
-
Hydraulic performance records
-
Field coverage maps
-
Service intervals
-
Diagnostic fault codes
This information transforms tractor management from reactive maintenance into predictive maintenance. Instead of waiting for components to fail, operators and technicians can identify trends indicating wear or declining performance.
For example, performance logs may reveal:
-
Increasing fuel consumption under similar loads
-
Gradual hydraulic pressure loss
-
Rising transmission temperatures
-
Shortening filter service life
-
Excessive wheel slip under specific field conditions
Such trends help operators schedule maintenance before breakdowns occur, reducing downtime and repair costs.
ANSI/ASABE standards support maintenance practices and monitoring systems that improve equipment reliability and operational safety (ASABE, 2022).
Precision Agriculture and Performance Optimization
Performance monitoring systems also form the foundation of modern precision agriculture. GPS guidance systems, automated steering, variable-rate application systems, and telematics all depend on accurate performance data.
Modern tractors may automatically optimize:
-
Engine RPM
-
Gear selection
-
Fuel delivery
-
Hydraulic flow
-
Traction control
-
Implement settings
Some systems now use machine-learning algorithms and predictive analytics to improve efficiency continuously based on field conditions and operational history.
However, even the most advanced technology does not eliminate the operator’s role. Precision agriculture systems provide information and automation, but operators still interpret conditions, make decisions, and respond to unexpected situations.
The Relationship Between Data and Experience
Ultimately, performance monitoring systems bridge craftsmanship and science. Earlier generations of operators relied entirely on experience, memory, and mechanical intuition to evaluate tractor performance. Modern systems convert many of those once-invisible conditions into measurable numbers and visual displays.
Yet technology does not replace experience—it enhances it.
The experienced operator still listens to the hum of the engine, feels the vibration through the seat, and senses changes in traction through the steering wheel. Digital displays simply provide another layer of understanding. They confirm instincts, reveal hidden inefficiencies, and document long-term patterns that human memory alone cannot track.
In this way, performance monitoring systems allow modern operators to inherit not only the stories and instincts of previous generations, but also the measurable data behind successful agricultural operation. The result is a partnership between human judgment and machine intelligence where intuition and information work together to improve safety, efficiency, and productivity.

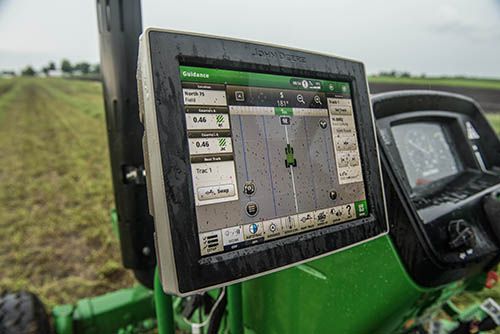

Fig. 5.11.1 "create an image of a modern tractor's performance monitors" (prompt), ChatGPT, OpenAI, 15 Feb. 2026, https://chat.openai.com. Copyright status: No copyright claimed (U.S.); AI-generated work.
