7.7: Design Principles- Clarity, Consistency, Accessibility, and Color Usage

Design Principles- Clarity, Consistency, Accessibility, and Color Usage

Great data visualizations balance aesthetic design with clear communication. There are several foundational design principles that help ensure your visuals are both appealing and effective:

Clarity:

• Above all, a visualization must accurately convey the information without confusion. Clarity means the chart is easy to read and interpret. This involves choosing the right chart type (as discussed) and designing it so that the message is obvious. Remove or downplay extraneous elements that don’t support the main point. For example, use grid lines only if they help read specific values; otherwise, lighten or omit them. Label axes and data directly where possible. Clarity also means avoiding ambiguous scales or misleading representations. A clear chart will have appropriately scaled axes (no unexpected breaks unless explicitly indicated) and a title or caption that frames what the viewer is seeing. Clear communication is the foundation of effective data visualization. Before finalizing a visual, step back and see if someone else can quickly grasp it. If there’s any room for misinterpretation, refine the design or add explanatory text. The goal is that the audience focuses on insights, not on figuring out how to read the chart.

Consistency:

• Consistency in design helps the audience build a correct mental model of the data. Use the same color or style for the same data across multiple charts. For instance, if in one chart you represent "2024" data with a blue line, use blue again for 2024 in another related chart or in the legend [11]. Keep formatting of numbers consistent (e.g., if one chart shows percentages with one decimal, do the same in similar charts unless there’s a reason to differ). Consistent axis scales are important when comparing charts side by side – if you show two bar charts of quarterly sales for two years, using the same y-axis range allows a fair visual comparison; if each chart auto-scales, it might mislead (making a small difference look big, for example). Consistency also applies to using similar chart types for similar data relationships, which helps your audience interpret new charts faster. In a dashboard or report, maintain a uniform background, font, and general style so that the visuals feel part of a cohesive whole. Consistency reduces cognitive load: the viewer doesn’t have to re-learn how to interpret each visual from scratch.

Accessibility:

• A well-designed visualization should be accessible to as many people as possible, including those with visual or cognitive impairments. Color choice is a major factor here – an estimated 8% of men and 0.5% of women have some form of color vision deficiency, often red-green color blindness. To accommodate this, avoid relying solely on color hue to differentiate data series; use texture, different shapes, or annotations in addition to color when possible. For example, use dashed vs. solid lines in a line chart along with color, or add data labels so one doesn’t have to distinguish colors at all. Ensure high contrast between text or important chart elements and the background. Small font or low-contrast text can be very difficult to read, especially when projected or printed. If using interactive visuals, also consider keyboard navigation and screen-reader friendliness (though that gets into more technical territory). In static visuals, providing data tables or alternative text in reports can help those who cannot see the chart. Accessibility also means clarity of language in any descriptions – avoid jargon in labels if the audience is general. An accessible chart might also use patterns on bars or segments so that even in grayscale printing or for colorblind viewers, differences are distinguishable. As a simple test, you might print your chart in black and white or run it through a colorblind simulator tool to see if it still works. Designing with accessibility in mind not only helps those with disabilities, but often improves overall clarity for everyone.

Effective Color Usage:

• Color is one of the most powerful tools in a visualization designer’s palette, pun intended. To use color effectively: use it purposefully, not arbitrarily. A common approach is to use a neutral or muted color for most data and a bold color for highlighting key data. For categorical data, choose a color palette that has clearly distinguishable colors (and remember the accessibility notes above). Limit the number of distinct colors to avoid a Skittles effect; having 10 different bright colors in one chart is usually overwhelming and counterproductive. Instead, if you have many categories, consider grouping them or using small multiples of charts. For sequential data (like a heatmap or a single series evolving over time), use a gradient that makes sense (e.g., light to dark of one hue, or a multi-hue gradient if it helps). For divergent data (deviations from a median or zero), use a two-sided palette (e.g., blue for positive, orange for negative) with a neutral center. Also, be mindful of cultural or conventional color meanings: for example, red usually implies negative or something to pay attention to (like losses or alerts), and green implies positive (profits, growth). While these are not strict rules, leveraging such conventions can make your chart more immediately intuitive (but be careful, as noted, red-green poses an issue for colorblind readers). If using software default colors, check if they are suitable; sometimes defaults are not ideal (they might be not colorblind-friendly or just not harmonious). Finally, ensure color consistency if the same category appears in multiple charts (consistency, as mentioned). A tip: if you need many categories colored, using a color family (varying saturation/lightness of a hue) can be better than totally unrelated colors, as it’s less jarring. And always provide a legend if there’s any doubt about what colors mean, unless labels on the chart itself make it obvious.

By adhering to clarity, consistency, accessibility, and thoughtful color usage, you greatly increase the efficacy of your visualizations. A well-designed chart should feel easy to look at: the viewer isn’t struggling to decode it, and the insight shines through. Good design in data visualization isn’t about unnecessary artifice; it’s about making the signal in the data loud and clear, while muting the noise. In practice, this might mean iterating on a chart multiple times—simplifying labels, adjusting colors, removing an extra axis or tick marks—until it communicates the insight as cleanly as possible.

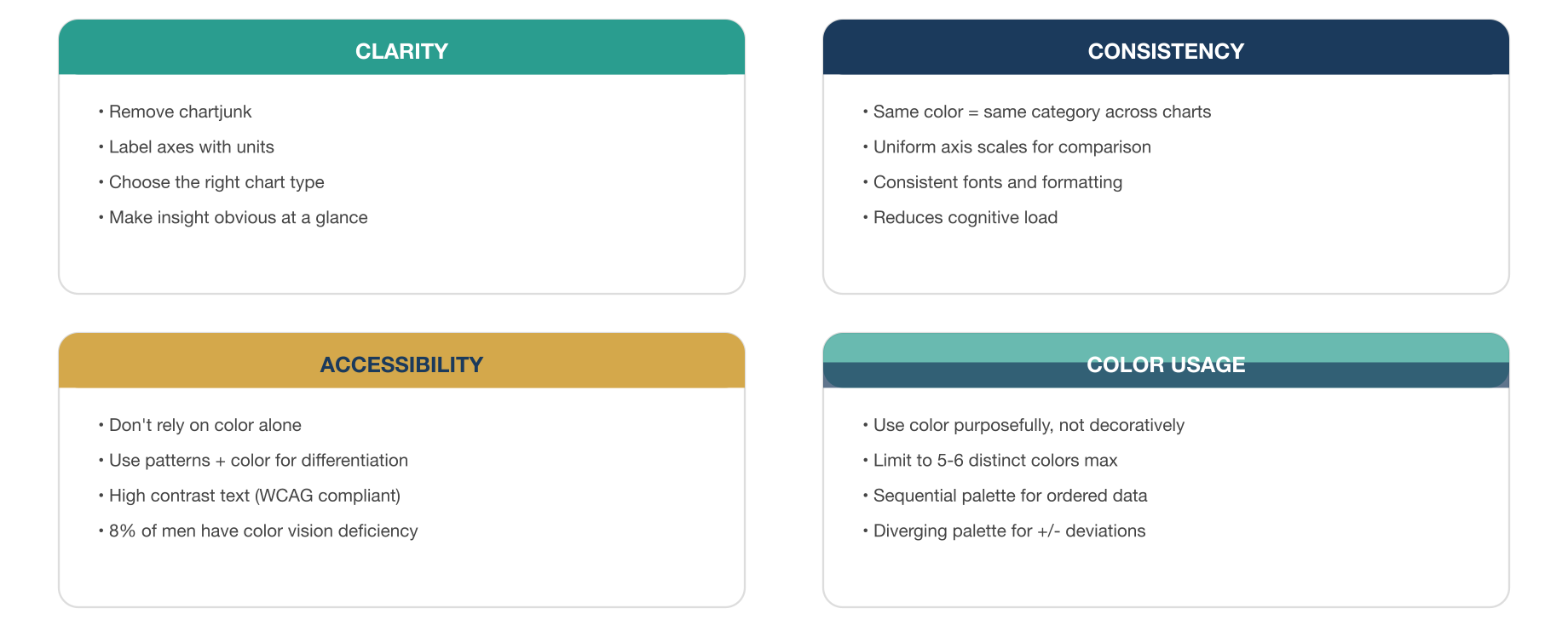

Figure \(\PageIndex{1}\): Design Principles for Effective Visualization. This summary diagram presents the four foundational design principles -- clarity, consistency, accessibility, and effective color usage -- with key guidelines and practical tips for each. (CC BY 4.0; Felix Amoruwa) Access to a detailed description of Figure \(\PageIndex{1}\)
