Bullet Charts (Bullet Graphs for KPIs)

A bullet chart (or bullet graph) is a specialized chart designed to display a single measure along with comparative markers to benchmark performance against a target or qualitative ranges [8]. It was created by visualization expert Stephen Few as an improvement over dashboard gauges and meters. Visually, a bullet chart typically consists of a horizontal or vertical bar indicating the primary metric (e.g. current sales), a vertical line or marker indicating a target value, and background shading that represents qualitative ranges such as “poor,” “satisfactory,” and “excellent” performance thresholds. This compact design conveys a lot of information in a small space: the current value, the target, and the context of how that value falls into performance bands.

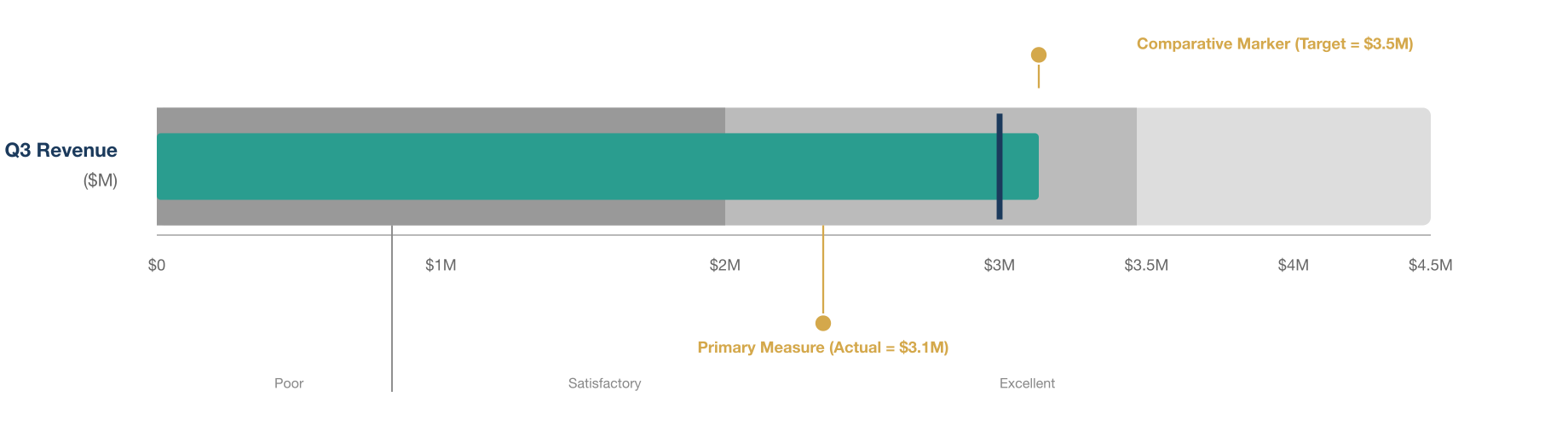

Figure \(\PageIndex{1}\): Anatomy of a Bullet Chart. A labeled diagram showing the three core components of a bullet chart — the primary measure bar, the comparative marker (target line), and the qualitative range bands — using a sample KPI for quarterly revenue performance. (CC BY 4.0; Felix Amoruwa) Access to a detailed description of Figure \(\PageIndex{1}\)



When to use a bullet chart: Bullet charts are extremely useful for key performance indicators (KPIs) on dashboards, especially when you need to compare a metric against a goal or previous period in a concise visualization. Common use cases include: financial metrics (actual revenue vs. target vs. last year), project management (progress vs. milestone targets), and any scenario where you have a “measure vs. goal” to display. Because they take up little space, multiple bullet graphs can be placed in a dashboard to give a “at-a-glance” view of several KPIs side by side. For instance, an executive sales dashboard might have a row of bullet charts for each region’s sales: each showing current sales (bar) against quota (line) with shading to indicate ranges of achievement (e.g. under 80% of quota = red zone, 80–100% = amber, above 100% = green).

Bullet charts are preferred over dial gauges because they are more space-efficient and make it easier to compare multiple values. A gauge often uses a lot of space to show one number and can be less precise in reading exact values. Bullet charts, being essentially variations of bar charts, adhere to best practices like a common zero baseline (for the quantitative scale), and they align well in a grid for comparison. One caveat is that bullet charts are not as universally recognized as basic bar or line charts, so you should ensure your audience understands how to read them (a brief annotation or example can help). Once understood, bullet charts convey rich information effectively: for example, one can immediately see if the bar surpasses the target line or not, and how close it is to entering the “good” range. They are best for comparative analysis (actual vs target, actual vs projection) and less suited for showing trends over time or parts of a whole (for those, use line charts or pie/treemaps respectively).
