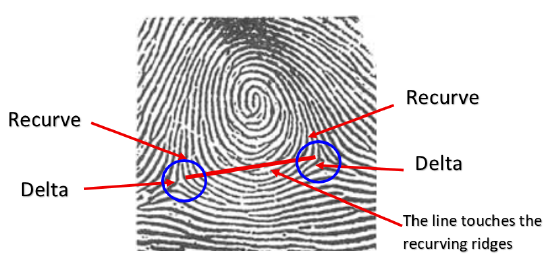

Plain Whorl
A plain whorl has two deltas and at least one ridge making a complete circuit, which may spiral, oval, circle or have any variant of a circle. If you drew an imaginary line drawn between the two deltas, the line must touch or cross one of the re-curving ridges within the inner pattern area.
Central Pocket Whorl
A central pocket whorl has two deltas and at least one ridge making a complete circuit, which may form a spiral, oval, circle or any variant of a circle. An imaginary line drawn between the two deltas must not touch or cross one of the re-curving ridges within the inner pattern area.
Double-Loop Whorl
Double-loop whorls are fun. They consist of two separate loop formations with two deltas and two distinct sets of recurving ridges called shoulders. Shoulders are the points on a loop at which the re-curving ridge definitely turns inward or curves. You may ask why this is a whorl pattern and not a loop pattern. The answer is that there are two deltas.
Accidental Whorl
Accidental Whorls are fun too, but not as fun as the double-loop whorl. Your author prefers to call this category of whorls the dumpster for whorls because this pattern consists of a combination of patterns, excluding the arches, with two or more deltas; or a pattern that possesses some of the requirements for two or more different types; or a pattern that conforms to none of the standard definitions of other patterns.
Whorl - FBI Science of Fingerprints -
Public Domain
Whorl - FBI Science of Fingerprints -
Public Domain
Elements of a Whorl
Things to remember for the whorl pattern:
- The ridge formations are spiral, elliptical or oval shapes, or have variations of these formations
- There are at least two deltas present with a re-curve in front of each
