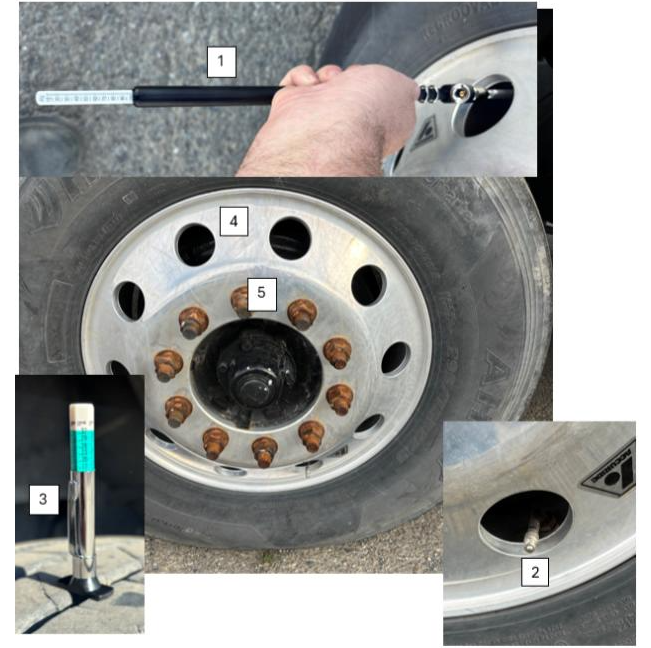

    Tires:

    tires .png

    • 1. Tire pressure: 100 psi checked with a gauge
    • Tire condition: no cuts or damage to the tread or side wall that expose body plies
    • 2. Valve stem: cap in place, accessible, not damaged or broken
    • 3. Tread depth: no less than 4/32’s of an inch, checked with a tread depth gauge
    • 4. Rims: not cracked, bent, or weld repaired
    • Stud and bolt holes: not elongated, no loose or missing nuts or bolts
    • 5. No missing lug nuts
    • 5. Lug nuts are not loose, no signs of rust trails or shiny threads which may show looseness
    • 5. No broken studs

    Front Suspension and Brake (Driver side):

    Front suspension and brake driver side .png

    • 1. Springs: no missing, shifted, cracked, or broken leaf springs
    • 2. Spring brackets: secured, not cracked, broken or missing any parts, no loose or missing nuts and bolts
    • 3. Frame: no cracks, broken welds, holes or damage to frame members, no loose or missing nuts and bolts
    • 4. Shock absorber: secure, no damage or leaks, no loose or missing nuts and bolts
    • 5. Brake hoses and lines: not pinched, cracked, worn or frayed, couplings and fittings secure, no air leaks
    • Brake contaminates: lining and drums free of grease, oil, and debris
